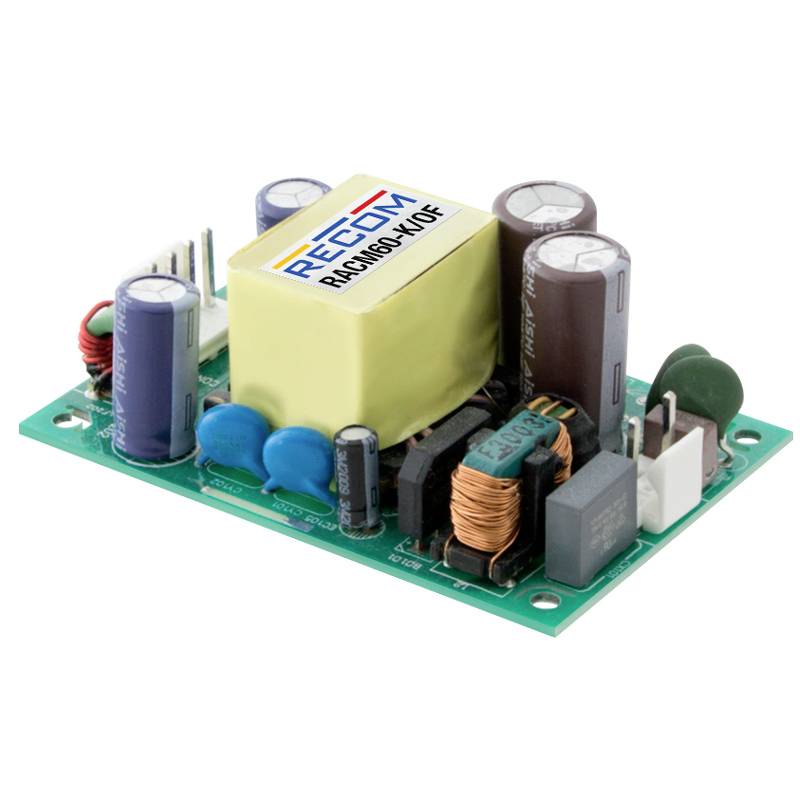

RECOM RACM60-05SK/277/OF SMPSU 5 V 8 A 40 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
RECOM RACM60-K/277/OF SNT case single Ou
- Output 5 V / 8 A
- Power 40 W
- Connector
Technical specifications
- Properties: DC compatible
- Efficiency 89 %
- No-load capacity less than 0.1 W.
- Remaining ripple 200 MVP-p
- Application: ITE, industry, medicine, household
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Short circuit protection 1
- Overvoltage protection 1
- Insulation voltage 4,800 V
- Housing: Open frame
- Input current 0.6 A
- Switch-on current max. 60 A.
- Protection class: II
- Product type
SMPSU
- Input voltage (max.)
430 V DC
305 V AC
- Max. output current
8 A
- Output current (max.) - rounded
8 A
- Min. input voltage
120 V DC
80 V AC
- Dim
(L x W x H) 76.20 x 50.80 x 32 mm
- Output voltage (max.)
5 V
- Connection
Connector
40 W
- No. of outputs
1 x
- Type
open
- Operating temperature (max.)
+85 °C
- Operating temperature (min.)
-40 °C
- Width
50.80 mm
- Height
32 mm
- Length
76.20 mm
- Type
RACM60-05SK/277/OF
- MTBF
900000 h
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2887514 RECOM RACM60-05SK/277/OF SMPSU 5 V 8 A 40 W
User & Safety Instructions
User & Safety Instructions 2887514 RECOM RACM60-05SK/277/OF SMPSU 5 V 8 A 40 W
Warranty Terms
Warranty Terms 2887514 RECOM RACM60-05SK/277/OF SMPSU 5 V 8 A 40 W
Description
Hints
These power supplies are intended for installation in terminals.
