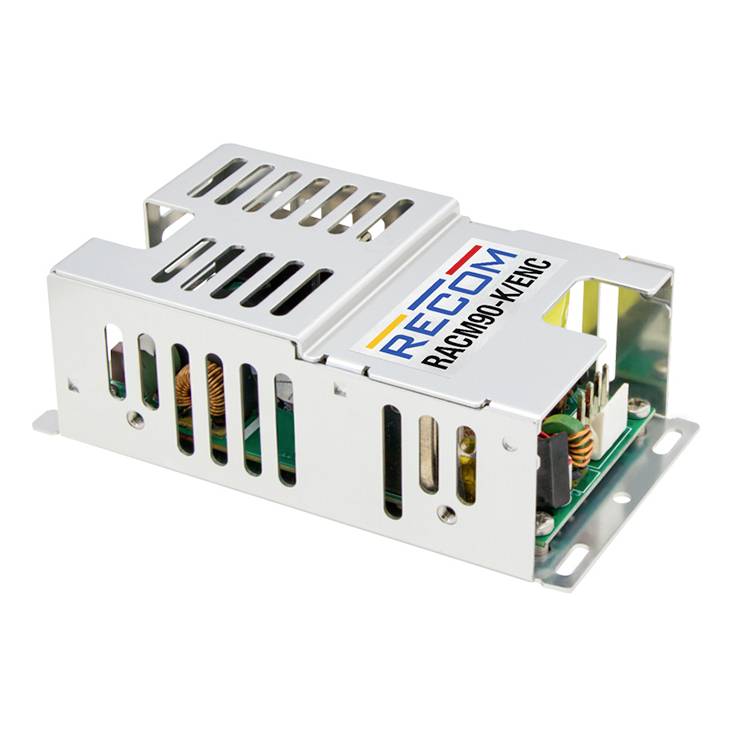

RECOM RACM90-24SK/ENC SMPSU 24 V 3.75 A 90 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
RECOM RACM90-K SNT case / open frame single
- Output 24 V / 3.75 A
- Power 90 W
- Connector
Technical specifications
- Features LPS, DC compatible
- Efficiency 89 %
- No-load capacity less than 0.2 W.
- Remaining ripple 240 MVP-p
- Application: ITE, industry, medicine, household
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Short circuit protection 1
- Overvoltage protection 1
- Insulation voltage 4,000 V
- Housing: Enclosed plastic
- Input current 1.2 A
- Switch-on current max. 30 A.
- Protection class: II
- Leakage current 0.1 mA
- Surge voltage category 3
- Product type
SMPSU
- Input voltage (max.)
370 V DC
264 V AC
- Max. output current
3.75 A
- Output current (max.) - rounded
3.75 A
- Min. input voltage
120 V DC
85 V AC
- Dim
(L x W x H) 118.30 x 62.70 x 38.70 mm
- Output voltage (max.)
24 V
- Connection
Connector
90 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+90 °C
- Operating temperature (min.)
-40 °C
- Width
62.70 mm
- Height
38.70 mm
- Length
118.30 mm
- Type
RACM90-24SK/ENC
- MTBF
776000 h
Documents & Downloads
Datasheet
Datasheet 2887525 RECOM RACM90-24SK/ENC SMPSU 24 V 3.75 A 90 W
User & Safety Instructions
User & Safety Instructions 2887525 RECOM RACM90-24SK/ENC SMPSU 24 V 3.75 A 90 W
Warranty Terms
Warranty Terms 2887525 RECOM RACM90-24SK/ENC SMPSU 24 V 3.75 A 90 W
Description
Hints
These power supplies are intended for installation in terminals.
