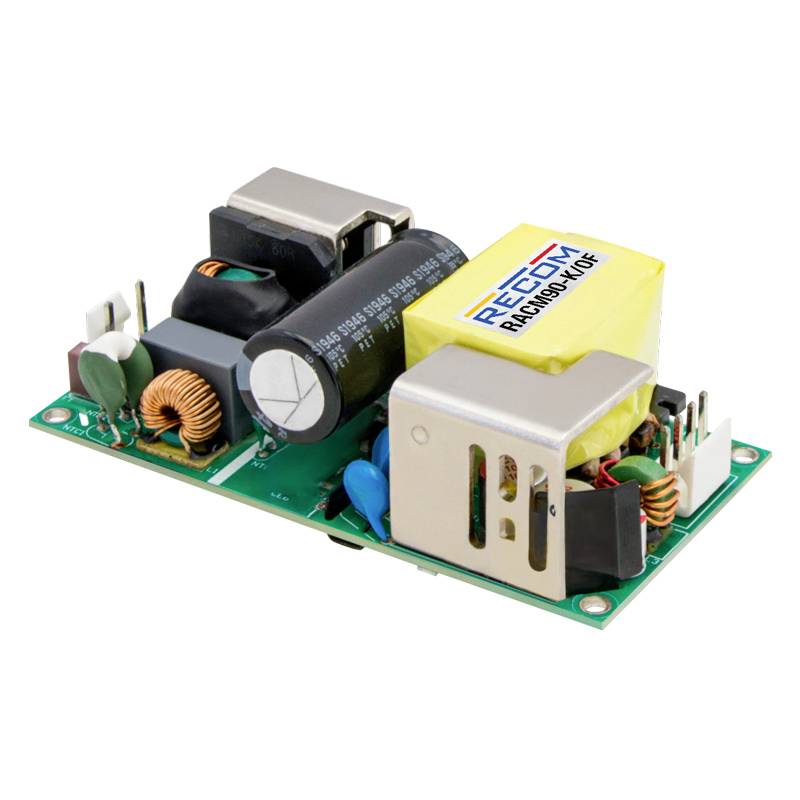

RECOM RACM90-24SK/OF SMPSU 24 V 3.75 A 90 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
RECOM RACM90-K SNT case / open frame single
- Output 24 V / 3.75 A
- Power 90 W
- Connector
Technical specifications
- Features LPS, DC compatible
- Efficiency 89 %
- No-load capacity less than 0.2 W.
- Remaining ripple 240 MVP-p
- Application: ITE, industry, medicine, household
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Short circuit protection 1
- Overvoltage protection 1
- Insulation voltage 1,500 V
- Housing: Open frame
- Input current 1.2 A
- Protection class: I
- Leakage current 0.1 mA
- Product type
SMPSU
- Input voltage (max.)
370 V DC
264 V AC
- Max. output current
3.75 A
- Output current (max.) - rounded
3.75 A
- Min. input voltage
120 V DC
85 V AC
- Dim
(L x W x H) 101.60 x 50.80 x 32 mm
- Output voltage (max.)
24 V
- Connection
Connector
90 W
- No. of outputs
1 x
- Type
open
- Operating temperature (max.)
+90 °C
- Operating temperature (min.)
-40 °C
- Width
50.80 mm
- Height
32 mm
- Length
101.60 mm
- Type
RACM90-24SK/OF
- MTBF
776000 h
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2887526 RECOM RACM90-24SK/OF SMPSU 24 V 3.75 A 90 W
User & Safety Instructions
User & Safety Instructions 2887526 RECOM RACM90-24SK/OF SMPSU 24 V 3.75 A 90 W
Warranty Terms
Warranty Terms 2887526 RECOM RACM90-24SK/OF SMPSU 24 V 3.75 A 90 W
Description
Hints
These power supplies are intended for installation in terminals.
