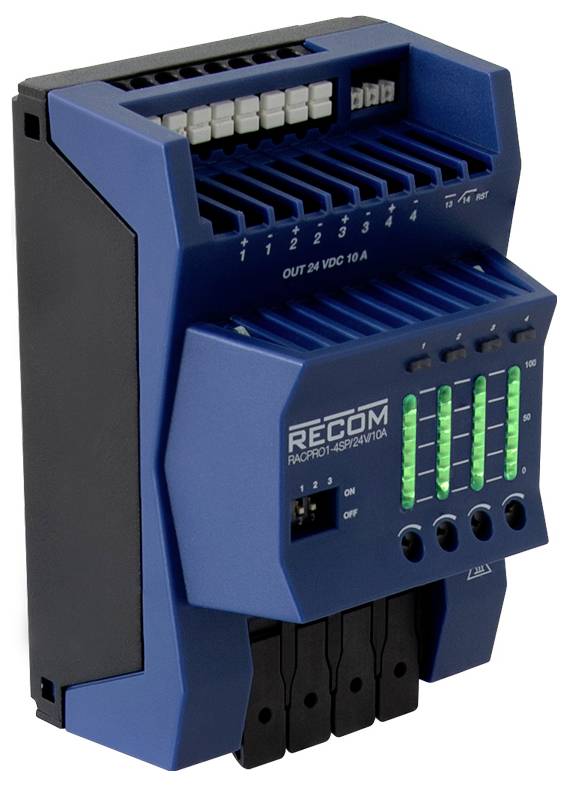

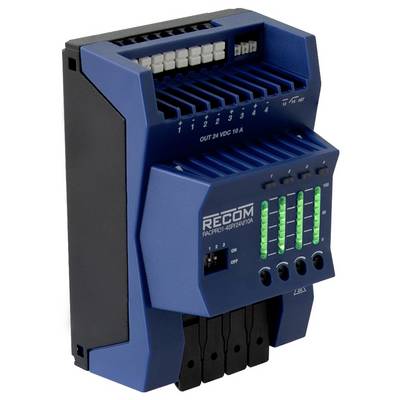

RECOM RACPRO1-4SP/24V/10A Eelectronic RCCB 10 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Eelectronic RCCB
Switching current (max.)
10 A
Connection
Jack connector
Length
61.9 mm
Width
72 mm
Highlights & Details
Brand.2514 RACRO1-4SP SNT DIN-rail/ e-bus
- DC-OK signal
Technical specifications
- Product type
Eelectronic RCCB
- Connection
Jack connector
- Switching current (max.)
10 A
- Length
61.9 mm
- Width
72 mm
- Height
111 mm
- Content
1 pc(s)
- Type
RACPRO1-4SP/24V/10A
- Dim
(L x W x H) 61.9 x 72 x 111 mm
- Max. output current
5 A
- Output voltage (max.)
24 V
240 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435831 RECOM RACPRO1-4SP/24V/10A Eelectronic RCCB 10 A 1 pc(s)
Description
The RACPRO1-4SP series are 4-channel electronic fuse (e-Fuse) circuit breakers with independent overcurrent limiting control and real-time output current display. Each channel is separately protected so that overload or error conditions on a single load do not affect the reliability or function of the entire system. The useful LED displays show the output current and change from green to yellow (current within the limit) to orange (current at the limit) to red (overcurrent or short circuit). A voltage-free DC-OK output can be used to monitor the system function. Each channel can also be turned on or off to facilitate fault diagnosis or maintenance.
The RECOM e-fuses RACPRO1-4SP/24V/10A are available with 10A maximum channel current and 150% power gain for 5s, but can handle 150% overload for up to 120ms to prevent false tripping. The channels switch on one after the other in order to reduce the inrush current with a preset delay time. When the system is overloaded, the channels switch off the loads in reverse order, so that important functions continue to run until the end.
The output overload slide-in or release mode can be set by means of a switch.
The e-fuses have a long life expectancy (>80,000h/40°C) and a simple wiring with tool-free push-in and lever terminals. The input and output terminals are also paired to allow easy linking.
This text is machine translated.
The RECOM e-fuses RACPRO1-4SP/24V/10A are available with 10A maximum channel current and 150% power gain for 5s, but can handle 150% overload for up to 120ms to prevent false tripping. The channels switch on one after the other in order to reduce the inrush current with a preset delay time. When the system is overloaded, the channels switch off the loads in reverse order, so that important functions continue to run until the end.
The output overload slide-in or release mode can be set by means of a switch.
The e-fuses have a long life expectancy (>80,000h/40°C) and a simple wiring with tool-free push-in and lever terminals. The input and output terminals are also paired to allow easy linking.
This text is machine translated.
