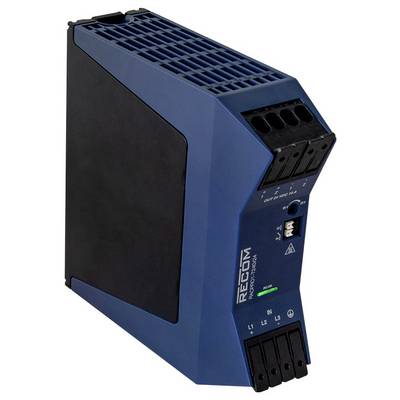

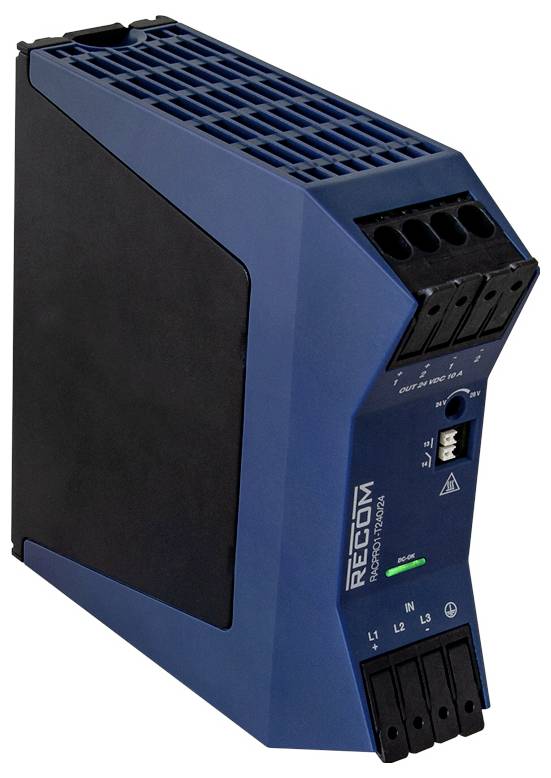

RECOM RACPRO1-T240/24 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brand.2514 RACPRO1-T240 SNT DIN rail single
- DC-OK signal, DC compatible, output voltage adjustable, peak Power
Technical specifications
- Operation maintenance 80000 h
- MTBF 1015000 h
- Network frequency: 50~60 Hz
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
320 V AC
- Input voltage (max.)
575 V AC
- Max. output current
10 A
- Output current (max.) - rounded
10 A
240 W
- Output type (power supply units)
Adjustable
- Phases
3
- Output voltage (nominal)
24 V
- Connection
Jack connector
- Dim
(L x W x H) 140.4 x 43 x 135 mm
- Output voltage (max.)
24 V
- Operating temperature (max.)
-40 °C
- Max. operating temperature (derating)
60 °C
- Min. operating temperature (derating)
-40 °C
- Operating temperature (min.)
+70 °C
- Manufacturer part #
RACPRO1-T240/24
- Content
1 pc(s)
- MTBF
1015000 h
- PSU features
Adjustable voltage output
- Width
43 mm
- Height
135 mm
- Length
140.4 mm
IP20
Protection class I
- Max. temperature
60 °C
- Min. temperature
-40 °C
- Type
RACPRO1-T240/24
Documents & Downloads
Datasheet
Datasheet 3435746 RECOM RACPRO1-T240/24 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435746 RECOM RACPRO1-T240/24 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)
Description
The slim RACPRO1-T240 is a highly reliable, three-phase AC input power supply with 24 V/240 W for DIN rail mounting with extremely compact dimensions of 135 x 125 mm and a width of only 43 mm. It has been specially developed for demanding applications in harsh industrial automation and has an extended overvoltage resistance at the mains input of up to 6kVAC and a reverse voltage strength of >35V at the output, making it suitable for safe operation against regenerative loads such as braking motors and inducers. These devices deliver up to 240 W over the entire ambient temperature range of -40°C to +60°C with pure convection cooling. With a thermal power bonus of up to 288 W at 45 °C and a power increase of up to 150% for 5 s, they are suitable for the supply of highly inductive or capacitive loads. The unique and innovative, modern design with 25° connectors allows simple, tool-free installation or replacement. The product is certified in accordance with the global safety standards IEC/EN/UL 62368-1, IEC/EN/UL 61010-1 and IEC/EN/UL/CSA 61010-2-201. The electromagnetic and conductive emissions comply with the industrial standard EN 61000-6-4, Class B, and the immunity standard EN 61000-6-2.
