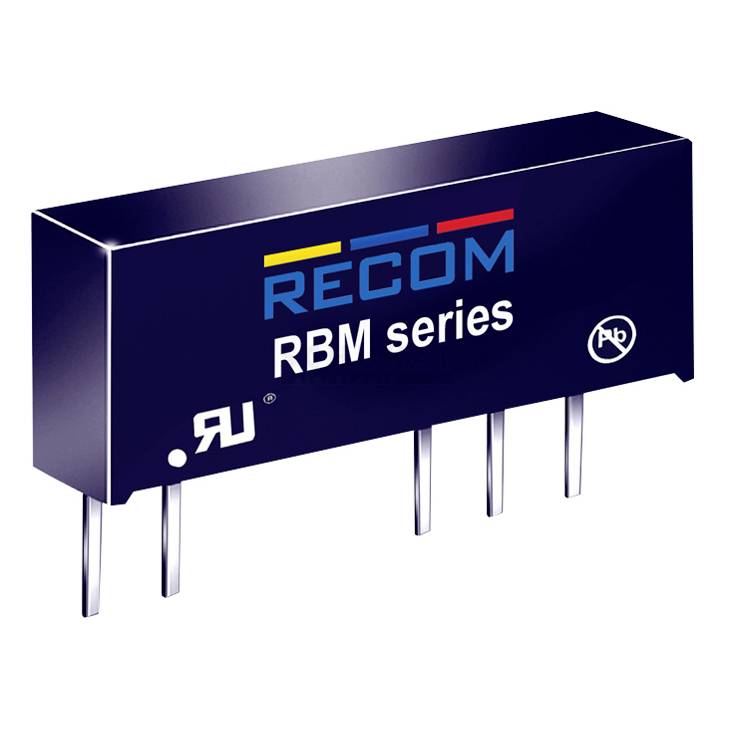

RECOM RBM-1212D DC/DC converter 12 V -12 V, 12 V -0.041 A 1 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 220 µF
- Remaining ripple 100 MVP-p
- Application: ITE, Industry
- SIP6 Micro casing
- Input voltage ratio 1:1
- Product type
DC/DC converter
- Type
RBM-1212D
- Nominal voltage
12 V
- Min. input voltage
10.8 V DC
- Input voltage (max.)
13.2 V DC
- No. of outputs
2 x
- Output voltages
-12 V
12 V
- Max. output current
-0.041 A
- Efficiency (max.)
82 %
1 W
- Insulation voltage
3.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 16.55 x 6 x 7.70 mm
- Height
7.70 mm
- Length
16.55 mm
- Width
6 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
