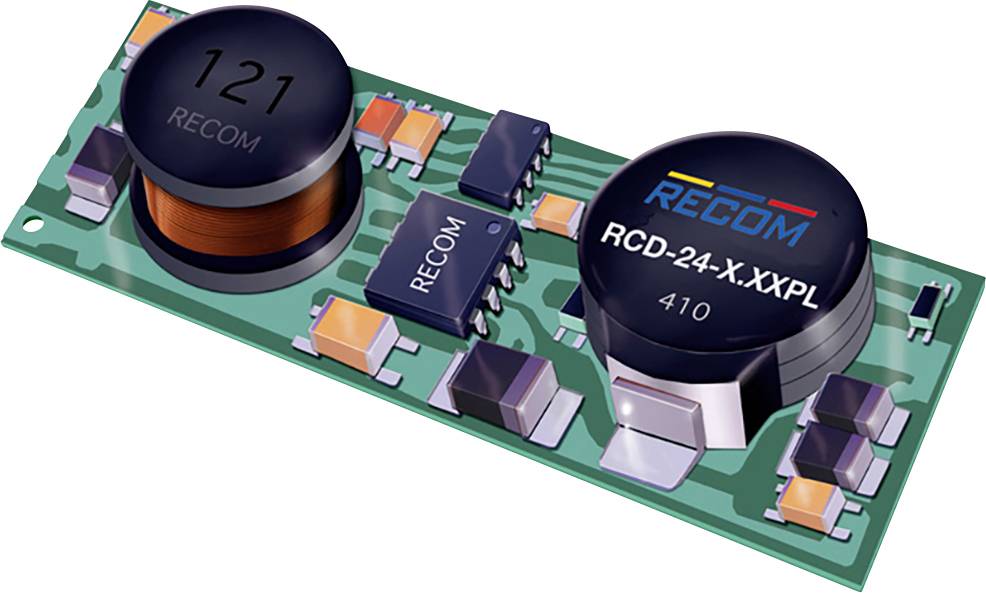

RECOM RCD-24-0.70/PL/A LED driver 0 - 700 mA 2 - 35 V DC adjustable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
RCD-24-0.70/PL/A
- 2 - 35 V DC
- 0 - 700 mA
Technical specifications
- Product type
LED driver
- Dim
(L x W x H) 31 x 11.4 x 6.6 mm
- Output voltage (max.)
35 V DC
- Output voltage (min.)
2 V DC
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- LED driver features
adjustable
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 mA
- Input voltage (max.)
36 V
- Min. input voltage
4.50 V
- Width
11.4 mm
- Height
6.6 mm
- Length
31 mm
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2338087 RECOM RCD-24-0.70/PL/A LED driver 0 - 700 mA 2 - 35 V DC adjustable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2338087 RECOM RCD-24-0.70/PL/A LED driver 0 - 700 mA 2 - 35 V DC adjustable 1 pc(s)
Warranty Terms
Warranty Terms 2338087 RECOM RCD-24-0.70/PL/A LED driver 0 - 700 mA 2 - 35 V DC adjustable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
