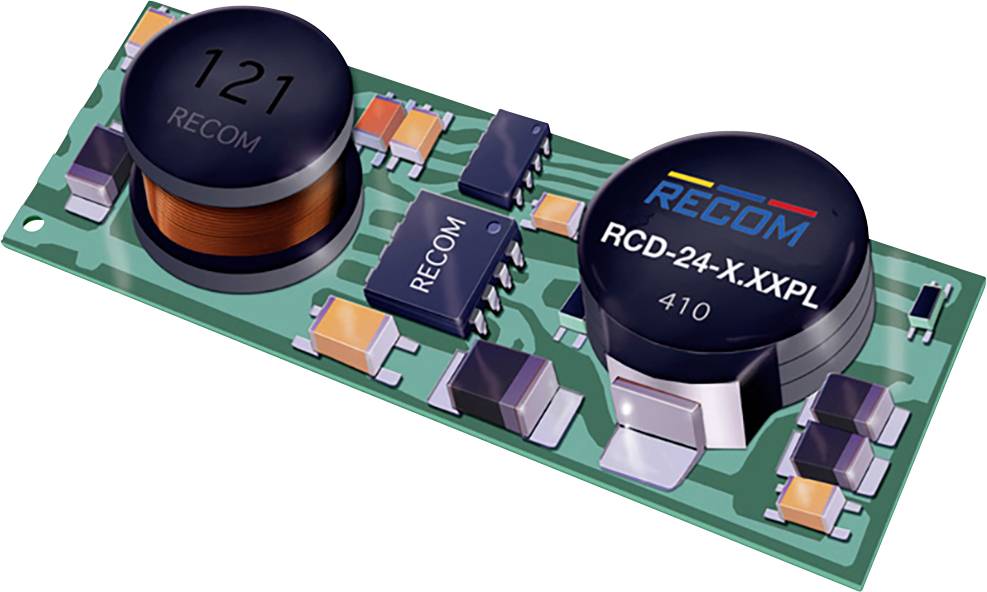

RECOM RCD-24-1.00/PL/A LED driver 0 - 1000 mA 2 - 32 V DC adjustable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
RCD-24-1.00/PL/A
- 2 - 32 V DC
- 0 - 1000 mA
Technical specifications
- Product type
LED driver
- Dim
(L x W x H) 31 x 11.4 x 6.6 mm
- Output voltage (max.)
32 V DC
- Output voltage (min.)
2 V DC
- Max. output current
1000 mA
- Output current (max.) - rounded
1 A
- LED driver features
adjustable
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
0 mA
- Input voltage (max.)
36 V
- Min. input voltage
6 V
- Width
11.4 mm
- Height
6.6 mm
- Length
31 mm
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2338211 RECOM RCD-24-1.00/PL/A LED driver 0 - 1000 mA 2 - 32 V DC adjustable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2338211 RECOM RCD-24-1.00/PL/A LED driver 0 - 1000 mA 2 - 32 V DC adjustable 1 pc(s)
Warranty Terms
Warranty Terms 2338211 RECOM RCD-24-1.00/PL/A LED driver 0 - 1000 mA 2 - 32 V DC adjustable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
