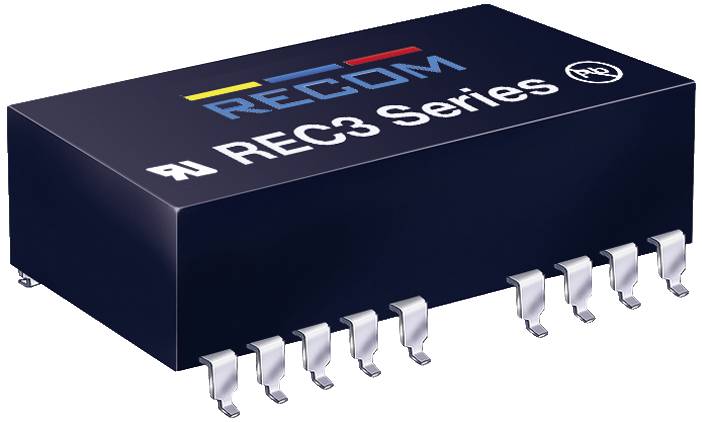

RECOM REC3-2415DRW/H4/A DC/DC converter -15 V, 15 V -0.1 A 3 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 1000 µF
- Remaining ripple 50 MVP-p
- Application: ITE, Industry, Medicine
- Casing: DIP24
- Input voltage ratio 2:1
- Product type
DC/DC converter
- Type
REC3-2415DRW/H4/A
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
2 x
- Output voltages
-15 V
15 V
- Max. output current
-0.1 A
- Efficiency (max.)
86 %
3 W
- Insulation voltage
4.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 32 x 20.30 x 10.20 mm
- Height
10.20 mm
- Length
32 mm
- Width
20.30 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
