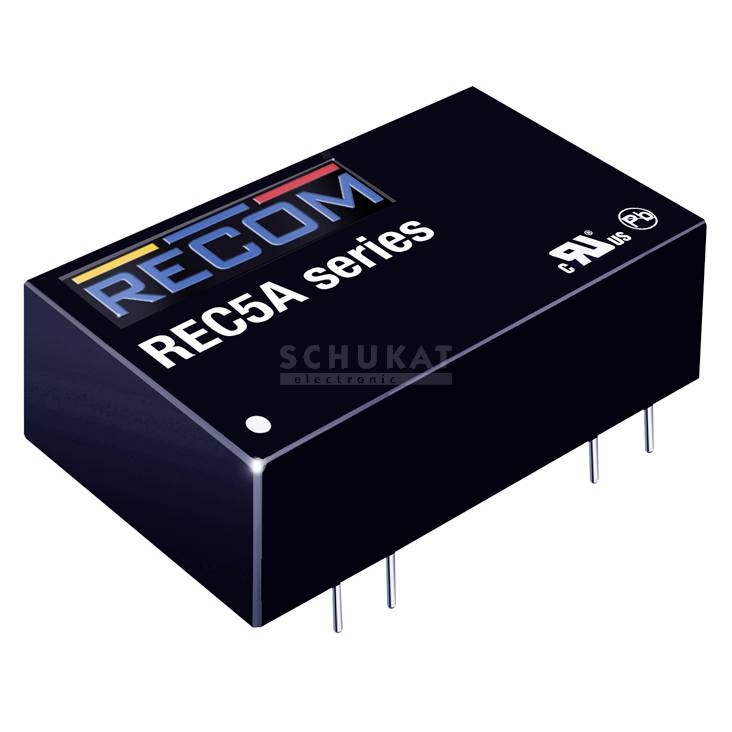

RECOM REC5A-2405SW/H2/X1 DC/DC converter 5 V 1 A 5 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 6800 µF
- Remaining ripple 50 MVP-p
- Application: ITE, Industry
- Casing: DIP24
- Input voltage ratio 2:1
- Product type
DC/DC converter
- Type
REC5A-2405SW/H2/X1
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
5 V
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Efficiency (max.)
81 %
5 W
- Insulation voltage
2.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+68 °C
- Dim
(L x W x H) 31.80 x 20.30 x 10.20 mm
- Height
10.20 mm
- Length
31.80 mm
- Width
20.30 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
