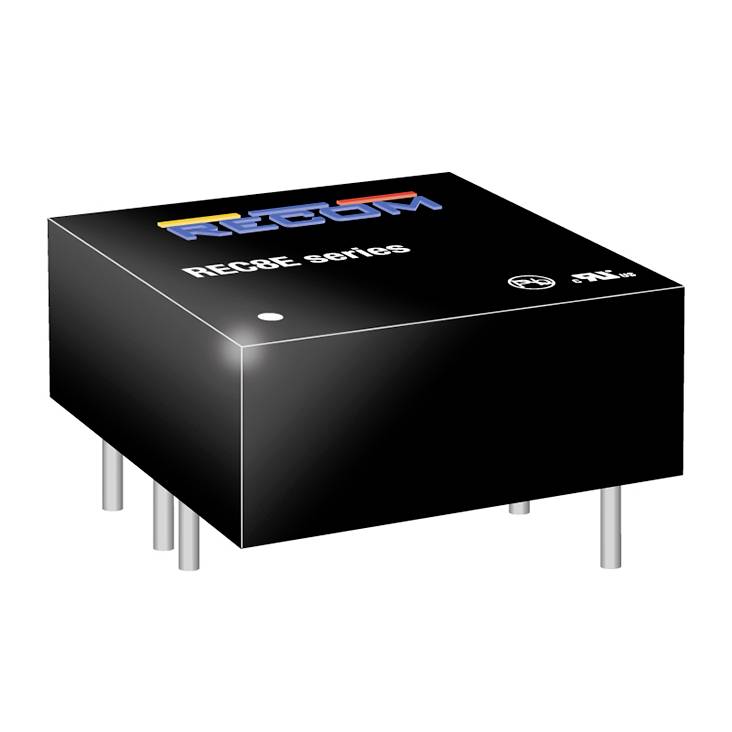

RECOM REC8E-2405S/CTRLX1 DC/DC converter 5 V 1.6 A 8 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 4700 µF
- Remaining ripple 100 MVP-p
- Application: ITE, Industry
- Housing: 1"*1"
- Input voltage ratio 2:1
- Product type
DC/DC converter
- Type
REC8E-2405S/CTRLX1
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
5 V
- Max. output current
1.6 A
- Output current (max.) - rounded
1.6 A
- Efficiency (max.)
83.5 %
8 W
- Insulation voltage
1.600 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+75 °C
- Dim
(L x W x H) 25.40 x 25.40 x 10.50 mm
- Height
10.50 mm
- Length
25.40 mm
- Width
25.40 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
