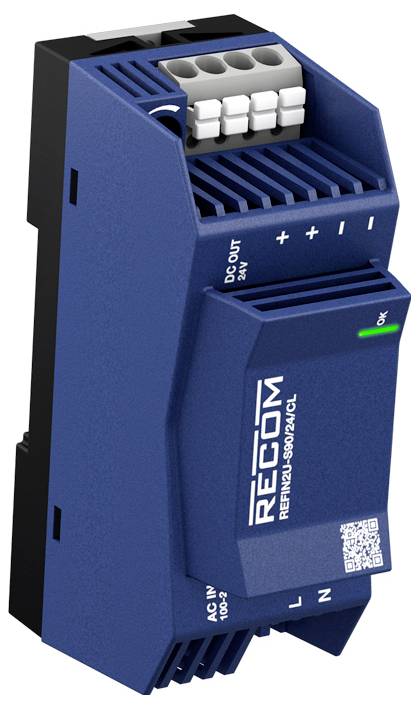

RECOM REFIN2U-S90/24/CL AC/DC industrial PSU module Consumption (standby) 0.3 W 24 V 3.8 A 90 W No. of outputs:1 x Conte
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
AC/DC industrial PSU module
- Min. input voltage
85 V
- Input voltage (max.)
276 V
- Max. output current
3.8 A
- Output current (max.) - rounded
3.8 A
90 W
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
24 V
- No. of outputs
1 x
- Connection
Plug & Clip
- Dim
(L x W x H) 94.1 x 36.2 x 135.0 mm
- Weight
151.0 g
- Output voltage (max.)
24 V
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
60 °C
- Operating temperature (min.)
-40 °C
- Manufacturer part #
REFIN2U-S90/24/CL
- Content
1 pc(s)
- MTBF
1800000 h
- Width
36.2 mm
- Height
135.0 mm
- Length
94.1 mm
- Type
REFIN2U-S90/24/CL
- Consumption (standby)
0.3 W
- Efficiency
93.6 %
- Mounting type
DIN rail
- Max. power
90.0 W
- UKCA
yes
