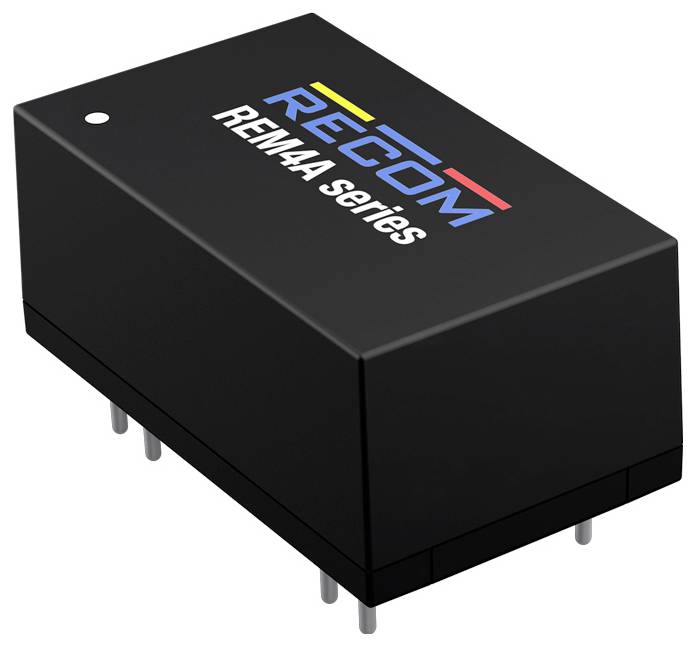

RECOM REM4A-1212S DC/DC converter 12 V 0.292 A 4 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brand.2514 REM4A DC/DC converter single out
- REMOTE Function
Technical specifications
- Nominal input voltage 5 V
- MTBF 68909000 h
- INSULATION VOLTAGE I/P-O/P 5000 V
- Product type
DC/DC converter
- Type
REM4A-1212S
- Min. input voltage
9 V
- Input voltage (max.)
18 V
- No. of outputs
1 x
- Output voltages
12 V
- Max. output current
0.292 A
- Output current (max.) - rounded
292 mA
- Efficiency (max.)
82 %
4 W
- Enclosure
DIP 16
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+105 °C
- Dim
(L x W x H) 24.3 x 14.4 x 10.2 mm
- Height
10.2 mm
- Length
24.3 mm
- Width
14.4 mm
- Output voltage (max.)
12 V
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3435620 RECOM REM4A-1212S DC/DC converter 12 V 0.292 A 4 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435620 RECOM REM4A-1212S DC/DC converter 12 V 0.292 A 4 W No. of outputs: 1 x Content 1 pc(s)
Description
The REM2A series of regulated DC-DC converters have reinforced continuous 250Vac insulation with a creepage/creepage distance of ≥8mm. The compact DIP16/SMD casing offers industry standard pinouts with strictly regulated single/double outputs as well as UVLO, SCP and OVP. The operating temperature range reaches from -40°C to +90°C without derating. The converters are UL-labeled and certified according to IEC, EN and ANSI/AAMI 60601 3rd Ed. Security and 4th Ed. EMC medical standards as well as IEC, EN, UL 62368-1 industry standards. The low leakage current of 2 μA corresponds to the limits for medical applications in the ranges B, BF and CF according to IEC 60601-1.
