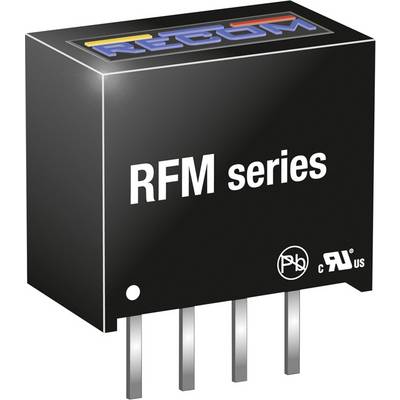

RECOM RFM-0505S DC/DC converter 5 V 5 V 0.2 A 1 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
14-day return policy included
Technical specifications
- Capacitive load max. 470 µF
- Remaining ripple 100 MVP-p
- Application: ITE, Industry
- Casing: SIP4
- Input voltage ratio 1:1
- Product type
DC/DC converter
- Type
RFM-0505S
- Nominal voltage
5 V
- Min. input voltage
4.5 V DC
- Input voltage (max.)
5.5 V DC
- No. of outputs
1 x
- Output voltages
5 V
- Max. output current
0.2 A
- Output current (max.) - rounded
200 mA
- Efficiency (max.)
79 %
1 W
- Insulation voltage
1.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 11.50 x 6 x 10 mm
- Height
10 mm
- Length
11.50 mm
- Width
6 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
