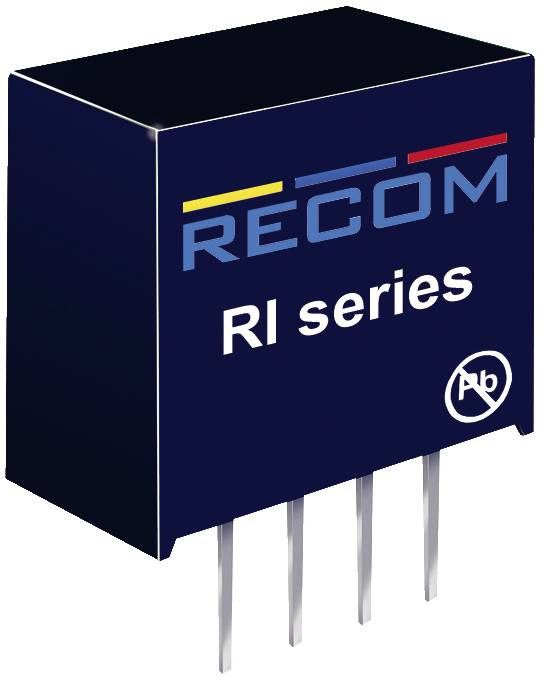

RECOM RI-1205S DC/DC converter 12 V 5 V 0.4 A 2 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 1200 µF
- Remaining ripple 200 MVP-p
- Application: ITE, Industry
- Casing: SIP4
- Input voltage ratio 1:1
- Product type
DC/DC converter
- Type
RI-1205S
- Nominal voltage
12 V
- Min. input voltage
12 V DC
- Input voltage (max.)
12 V DC
- No. of outputs
1 x
- Output voltages
5 V
- Max. output current
0.4 A
- Output current (max.) - rounded
400 mA
- Efficiency (max.)
83 %
2 W
- Insulation voltage
1.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 11.50 x 7.55 x 10.20 mm
- Height
10.20 mm
- Length
11.50 mm
- Width
7.55 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
