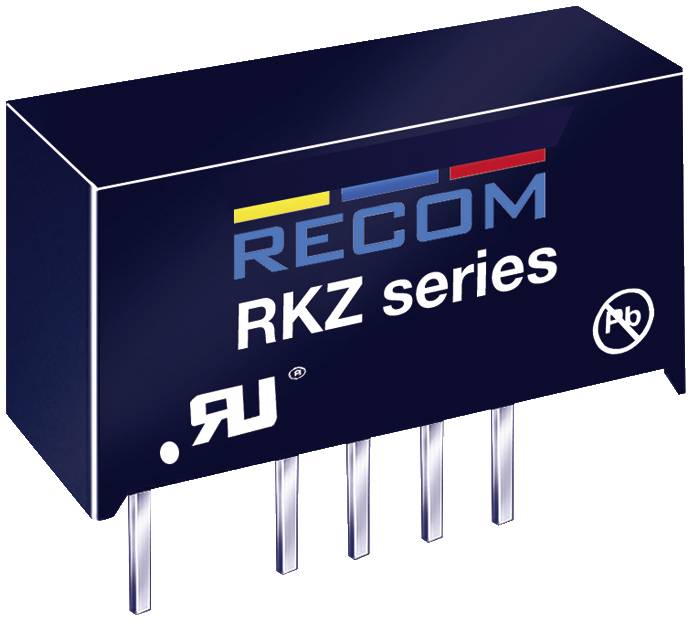

RECOM RKZ-0512S DC/DC converter 5 V 12 V 0.168 A 2 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 330 µF
- Remaining ripple 150 MVP-p
- Application: ITE, Industry, Medicine
- Casing: SIP7
- Input voltage ratio 1:1
- Product type
DC/DC converter
- Type
RKZ-0512S
- Nominal voltage
5 V
- Min. input voltage
4.5 V DC
- Input voltage (max.)
5.5 V DC
- No. of outputs
1 x
- Output voltages
12 V
- Max. output current
0.168 A
- Output current (max.) - rounded
168 mA
- Efficiency (max.)
87 %
2 W
- Insulation voltage
3.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 19.65 x 7.05 x 10.20 mm
- Height
10.20 mm
- Length
19.65 mm
- Width
7.05 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
Compliance & Certifications
Certified by EU Garan
