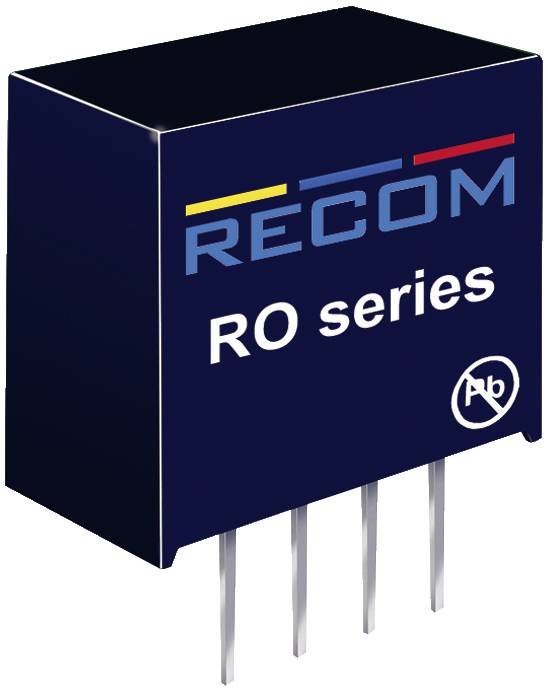

RECOM RO-243.3S DC/DC converter 24 V 3.30 V 0.303 A 1 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 2200 µF
- Remaining ripple 100 MVP-p
- Application: ITE, Industry
- Casing: SIP4
- Input voltage ratio 1:1
- Product type
DC/DC converter
- Type
RO-243.3S
- Nominal voltage
24 V
- Min. input voltage
21.6 V DC
- Input voltage (max.)
26.4 V DC
- No. of outputs
1 x
- Output voltages
3.30 V
- Max. output current
0.303 A
- Output current (max.) - rounded
303 mA
- Efficiency (max.)
75 %
1 W
- Insulation voltage
1.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 11.50 x 6 x 10 mm
- Height
10 mm
- Length
11.50 mm
- Width
6 mm
- Content
1 pc(s)
