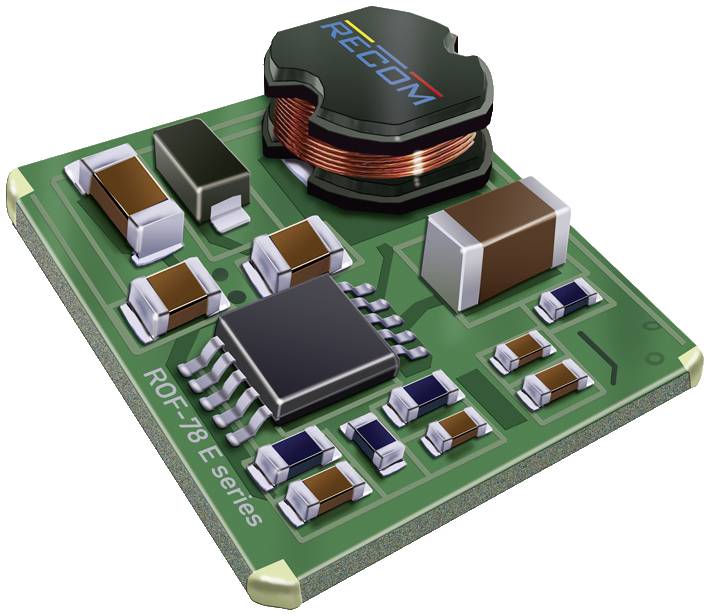

RECOM ROF-78E12-0.5SMDR DC/DC converter 12 V 0.5 A 6 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Remaining ripple 100 MVP-p
- Application: ITE, Industry
- Housing: Open frame
- Product type
DC/DC converter
- Type
ROF-78E12-0.5SMDR
- Min. input voltage
15 V DC
- Input voltage (max.)
36 V DC
- Output voltages
12 V
- Max. output current
0.5 A
- Output current (max.) - rounded
500 mA
- Efficiency (max.)
92 %
6 W
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 12.50 x 13.50 x 4.50 mm
- Height
4.50 mm
- Length
12.50 mm
- Width
13.50 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
