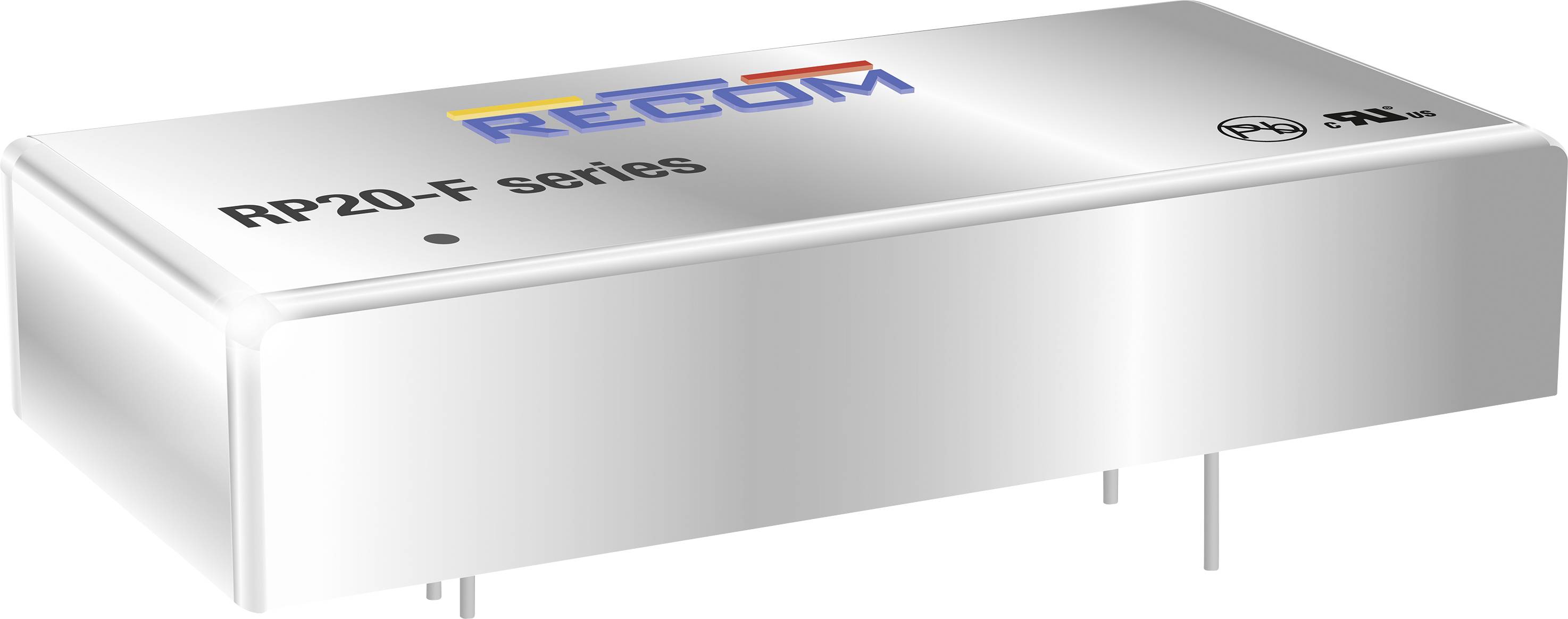

RECOM RP20-2405SF DC/DC converter 5 V DC 5 V DC, -5 V DC 4 A 20 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter
- Type
RP20-2405SF
- Nominal voltage
5 V DC
- Min. input voltage
18 V
- Input voltage (max.)
36 V
- No. of outputs
1 x
- Output voltages
5 V DC
-5 V DC
- Max. output current
4 A
- Output current (max.) - rounded
4 A
20 W
- Insulation voltage
1600 V
- Dim
(L x W x H) 50.8 x 25.4 x 10.2 mm
- Height
10.2 mm
- Length
50.8 mm
- Width
25.4 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5.5 V
- Output voltage (min.)
4.5 V
- Content
1 pc(s)
Compliance & Certifications
Certified by EU Garan
