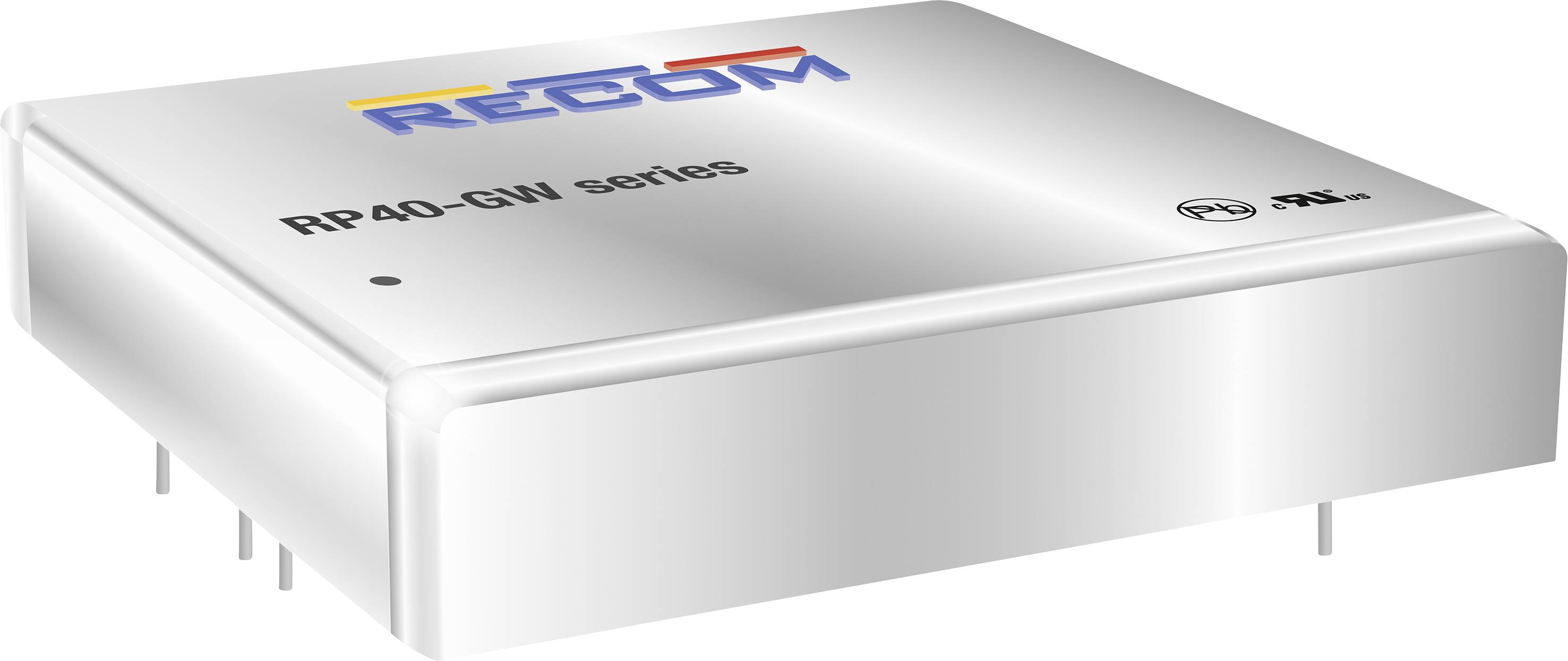

RECOM RP40-2412SGW DC/DC converter 3.333 A 40 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter
- Type
RP40-2412SGW
- Min. input voltage
9 V
- Input voltage (max.)
36 V
- No. of outputs
1 x
- Max. output current
3.333 A
- Output current (max.) - rounded
3.33 A
40 W
- Insulation voltage
1600 V
- Dim
(L x W x H) 50.8 x 50.8 x 10.2 mm
- Height
10.2 mm
- Length
50.8 mm
- Width
50.8 mm
- RoHS-compliant
Yes
- Output voltage (max.)
13.2 V
- Output voltage (min.)
10.8 V
- Content
1 pc(s)
