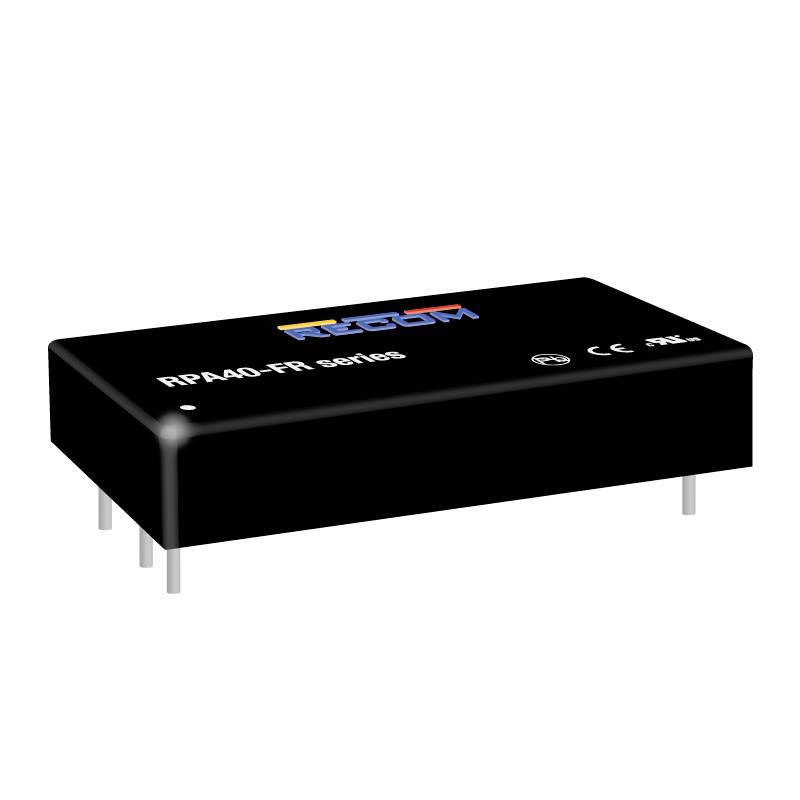

RECOM RPA40-11012SFR DC/DC converter 110 V 12 V 3.333 A 40 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 1667 µF
- Remaining ripple 100 MVP-p
- Application: ITE, industry, railway technology
- Housing: 2"*1"
- Input voltage ratio 4:1
- Product type
DC/DC converter
- Type
RPA40-11012SFR
- Nominal voltage
110 V
- Min. input voltage
36 V DC
- Input voltage (max.)
160 V DC
- No. of outputs
1 x
- Output voltages
12 V
- Max. output current
3.333 A
- Output current (max.) - rounded
3.33 A
- Efficiency (max.)
89 %
40 W
- Insulation voltage
3.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+105 °C
- Dim
(L x W x H) 56.40 x 36.83 x 15 mm
- Height
15 mm
- Length
56.40 mm
- Width
36.83 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
