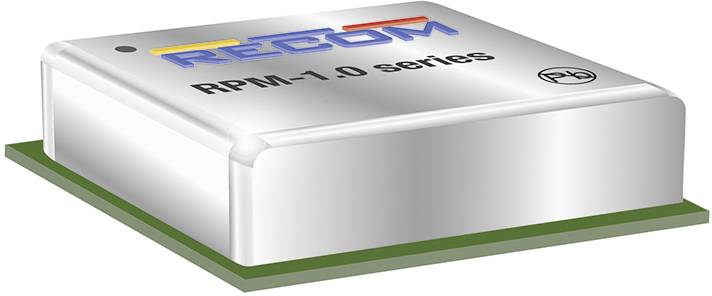

RECOM RPM5.0-1.0-CT DC/DC converter 24 V DC 5 V DC 1 A No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter
- Type
RPM5.0-1.0-CT
- Nominal voltage
24 V DC
- Min. input voltage
3 V
- Input voltage (max.)
17 V
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Enclosure
LGA 25 (3x3)
- Dim
(L x W x H) 12.19 x 12.19 x 3.75 mm
- Height
3.75 mm
- Length
12.19 mm
- Width
12.19 mm
- RoHS-compliant
Yes
- Output voltage (max.)
6 V
- Output voltage (min.)
0.9 V
- Content
1 pc(s)
