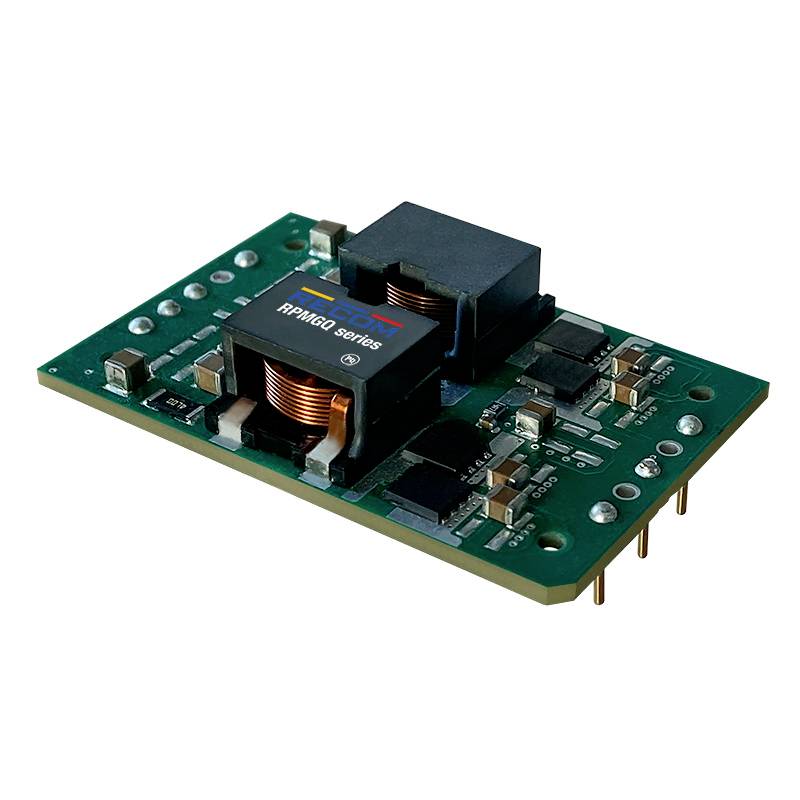

RECOM RPMGQ12-20 DC/DC converter 12 V 20 A 240 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 12000 µF
- Application: ITE, Industry
- 1/4 brick housing
- Product type
DC/DC converter
- Type
RPMGQ12-20
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- Output voltages
12 V
- Max. output current
20 A
- Output current (max.) - rounded
20 A
- Efficiency (max.)
97 %
240 W
- Connection
THT
- PSU features
Adjustable voltage output
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+120 °C
- Dim
(L x W x H) 56.40 x 36.83 x 15 mm
- Height
15 mm
- Length
56.40 mm
- Width
36.83 mm
- Output voltage (max.)
24 V
- Output voltage (min.)
8 V
- Content
1 pc(s)
