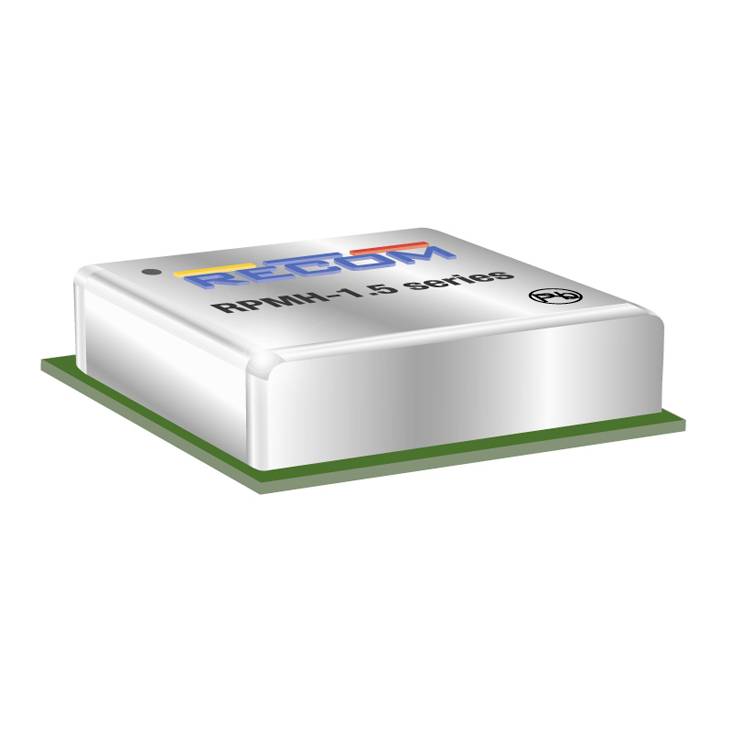

RECOM RPMH12-1.5-CT DC/DC converter 12 V 1.5 A 18 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 8100 µF
- Remaining ripple 70 MVP-p
- Application: ITE, Industry
- LGA casing
- Product type
DC/DC converter
- Type
RPMH12-1.5-CT
- Min. input voltage
14 V DC
- Input voltage (max.)
60 V DC
- Output voltages
12 V
- Max. output current
1.5 A
- Output current (max.) - rounded
1.5 A
- Efficiency (max.)
88 %
18 W
- Connection
SMD
- PSU features
Adjustable voltage output
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+100 °C
- Dim
(L x W x H) 12.19 x 12.19 x 3.75 mm
- Height
3.75 mm
- Length
12.19 mm
- Width
12.19 mm
- RoHS-compliant
Yes
- Output voltage (max.)
13.2 V
- Output voltage (min.)
7.2 V
- Content
1 pc(s)
- UKCA
yes
