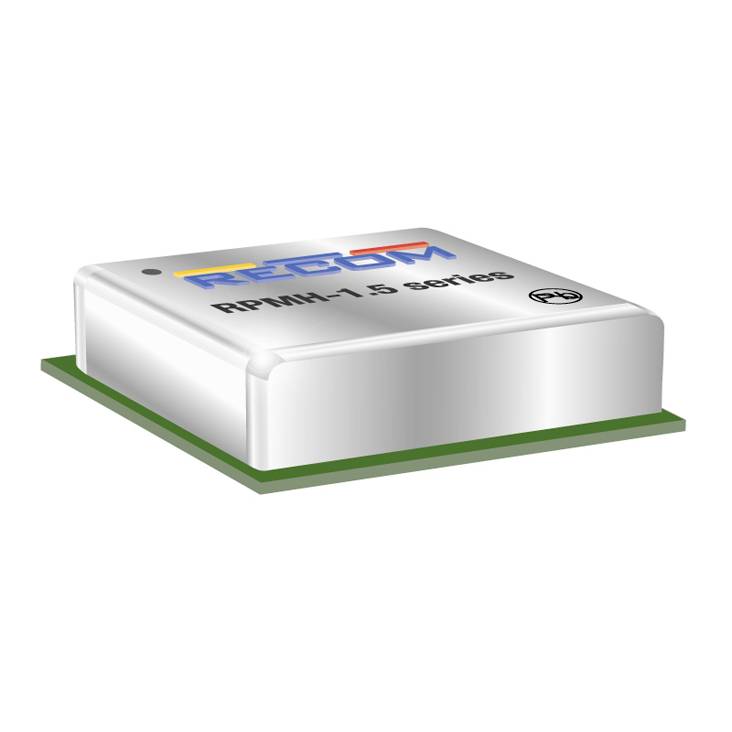

RECOM RPMH5.0-1.5-CT DC/DC converter 5 V 1.5 A 7.5 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Capacitive load max. 21200 µF
- Remaining ripple 70 MVP-p
- Application: ITE, Industry
- LGA casing
- Product type
DC/DC converter
- Type
RPMH5.0-1.5-CT
- Min. input voltage
7 V DC
- Input voltage (max.)
60 V DC
- Output voltages
5 V
- Max. output current
1.5 A
- Output current (max.) - rounded
1.5 A
- Efficiency (max.)
80 %
7.5 W
- Connection
SMD
- PSU features
Adjustable voltage output
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+100 °C
- Dim
(L x W x H) 12.19 x 12.19 x 3.75 mm
- Height
3.75 mm
- Length
12.19 mm
- Width
12.19 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5.5 V
- Output voltage (min.)
4 V
- Content
1 pc(s)
- UKCA
yes
