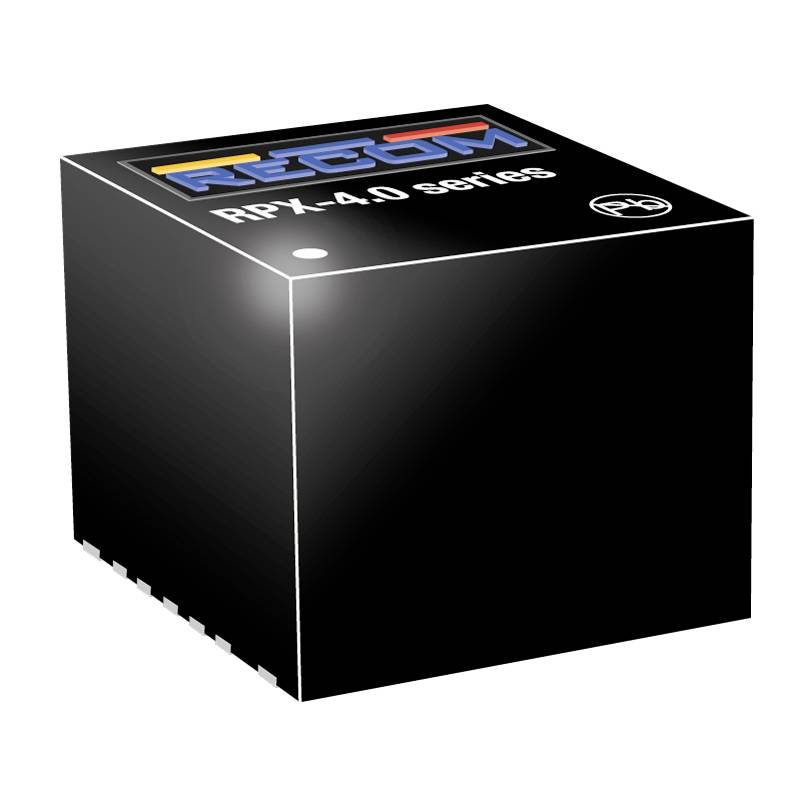

RECOM RPX-4.0-CT DC/DC converter 5 V 4 A 20 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Remaining ripple 30 MVP-p
- Application: ITE, Industry
- QFN casing
- Product type
DC/DC converter
- Type
RPX-4.0-CT
- Min. input voltage
3.8 V DC
- Input voltage (max.)
36 V DC
- Output voltages
5 V
- Max. output current
4 A
- Output current (max.) - rounded
4 A
- Efficiency (max.)
87 %
20 W
- Connection
SMD
- PSU features
Adjustable voltage output
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+105 °C
- Dim
(L x W x H) 5 x 5.50 x 4.10 mm
- Height
4.10 mm
- Length
5 mm
- Width
5.50 mm
- RoHS-compliant
Yes
- Output voltage (max.)
7 V
- Output voltage (min.)
1 V
- Content
1 pc(s)
- UKCA
yes
