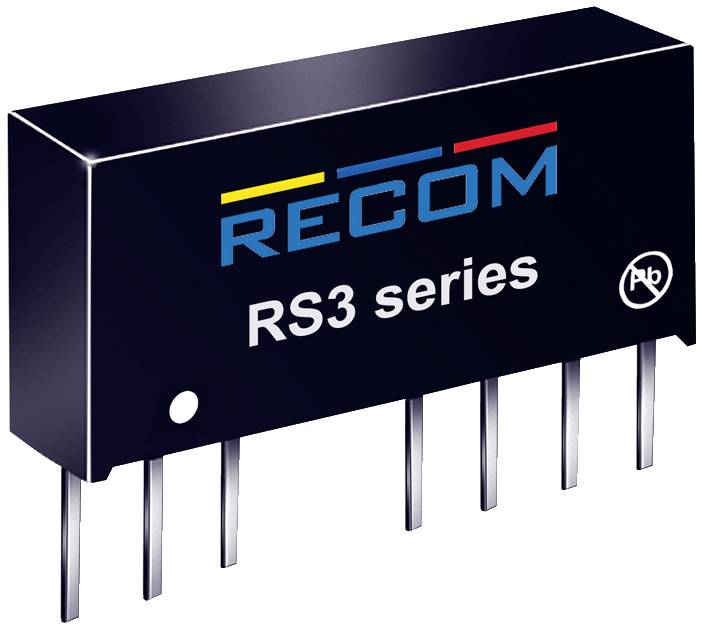

RECOM RS3-0512S DC/DC converter 12 V 0.25 A 3 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 2200 µF
- Remaining ripple 50 MVP-p
- Application: ITE, Industry, Medicine
- Casing: SIP8
- Input voltage ratio 2:1
- Product type
DC/DC converter
- Type
RS3-0512S
- Min. input voltage
4.5 V DC
- Input voltage (max.)
9 V DC
- No. of outputs
1 x
- Output voltages
12 V
- Max. output current
0.25 A
- Output current (max.) - rounded
250 mA
- Efficiency (max.)
81 %
3 W
- Insulation voltage
1.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+71 °C
- Dim
(L x W x H) 21.80 x 9.20 x 11.10 mm
- Height
11.10 mm
- Length
21.80 mm
- Width
9.20 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
