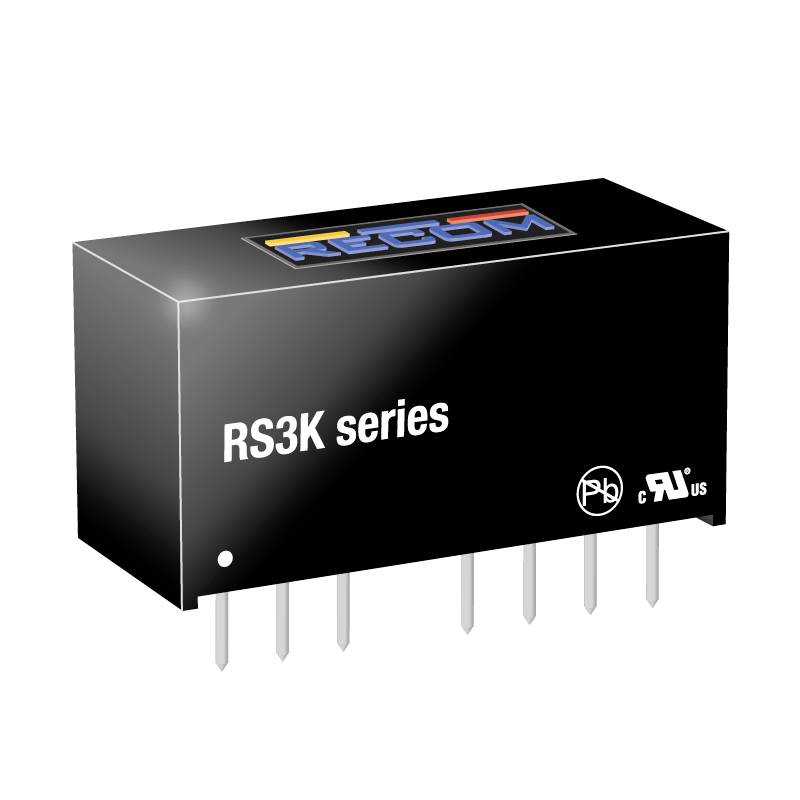

RECOM RS3K-2405SZ/H3 DC/DC converter 5 V 600 A 3 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Capacitive load max. 4700 µF
- Remaining ripple 50 MVP-p
- Casing: SIP8
- Input voltage ratio 4:1
- Product type
DC/DC converter
- Type
RS3K-2405SZ/H3
- No. of outputs
1 x
- Output voltages
5 V
- Max. output current
600 A
- Output current (max.) - rounded
600 A
- Efficiency (max.)
84 %
3 W
- Insulation voltage
3.000 V
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+105 °C
- Dim
(L x W x H) 21.80 x 9.20 x 11.10 mm
- Height
11.10 mm
- Length
21.80 mm
- Width
9.20 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
