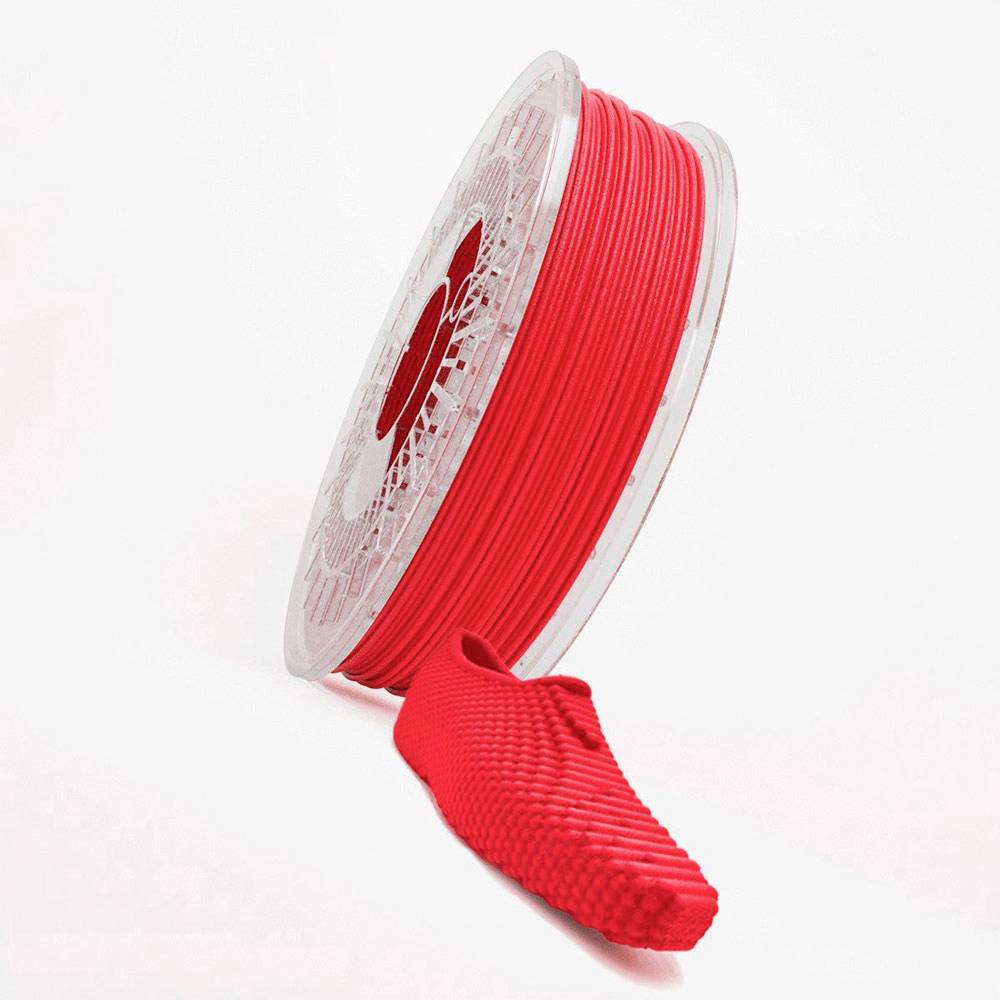

Recreus FOAMRED175750 Filaflex Foamy Filament TPU, Flexible clexible, dynamic foam technilogy 1.75 mm 750 g Red 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Recreus Filaflex Foam – flexible TPU-filament with dynamic foam technology
- Shore hardness 82A (flexible up to 60A)
- Colour change due to temperature settings
- For light, elastic parts with reduced density
- For professional applications such as shoe fashion, car parts, sound and protective equipment
Technical specifications
- Heated bed: 50 - 55 °C for large prints, for small prints no heating bed is needed at room temperature
- Product type
Filament
- Filament material
TPU
Flexible
- Filament properties
clexible
dynamic foam technilogy
- Filament Ø
1.75 mm
- Filament colour
Red
- Heated bed required
No
- Printing temperature (min.)
245 °C
- Max. printing temperature
250 °C
- Weight
750 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3779859 Recreus FOAMRED175750 Filaflex Foamy Filament TPU, Flexible clexible, dynamic foam technilogy 1.75 mm 750 g Red 1 pc(s)
Security datasheet
Security datasheet 3779859 Recreus FOAMRED175750 Filaflex Foamy Filament TPU, Flexible clexible, dynamic foam technilogy 1.75 mm 750 g Red 1 pc(s)
Description
Filaflex Foamy is a flexible TPU filament that uses dynamic foam technology to print light, elastic parts with reduced weight and density, WAS enables increased performance and productivity of the filament coil.
Filaflex Foamy is a ground-breaking TPU filament designed with dynamic foam technology to create lightweight, elastic parts with reduced density. This innovative filament contains a unique foaming agent that is activated at high temperatures and produces prints with a characteristic foamy texture while improving material efficiency. With an initial shore hardness of 82A, which can be set to 60A, it offers exceptional versatility in hardness and density control.
The properties of the material can be finely adjusted by printing parameters, whereby temperatures of 245-250°C and a flow rate of 60-70% achieve a volume expansion of 1.4-1.6 times. This customization allows not only the adjustment of the physical properties, but also allows a variation of the hue based on the temperature settings. The efficient use of materials offers 30-40% more prints per coil, WAS ES Ideal makes for high-volume production while maintaining excellent flexibility and durability.
Key functions
- Dynamic Foaming: Light parts with adjustable density
- Flexible hardness: Adjustable from 82A to 60A shore
- Increased efficiency: Up to 40% more prints per coil
- Colour control: Adjustable tones by temperature
- Versatile Properties: Adaptable extension and texture
Professional applications
- Innovative shoe fashion: Complete shoes, insoles and soles
- Cycling components: Lightweight handles and seats
- Automotive parts: Damping elements and seals
- Protective equipment: Shock-absorbing pads and equipment
- Sound Management: Sound-absorbing components
This text is machine translated.
Filaflex Foamy is a ground-breaking TPU filament designed with dynamic foam technology to create lightweight, elastic parts with reduced density. This innovative filament contains a unique foaming agent that is activated at high temperatures and produces prints with a characteristic foamy texture while improving material efficiency. With an initial shore hardness of 82A, which can be set to 60A, it offers exceptional versatility in hardness and density control.
The properties of the material can be finely adjusted by printing parameters, whereby temperatures of 245-250°C and a flow rate of 60-70% achieve a volume expansion of 1.4-1.6 times. This customization allows not only the adjustment of the physical properties, but also allows a variation of the hue based on the temperature settings. The efficient use of materials offers 30-40% more prints per coil, WAS ES Ideal makes for high-volume production while maintaining excellent flexibility and durability.
Key functions
- Dynamic Foaming: Light parts with adjustable density
- Flexible hardness: Adjustable from 82A to 60A shore
- Increased efficiency: Up to 40% more prints per coil
- Colour control: Adjustable tones by temperature
- Versatile Properties: Adaptable extension and texture
Professional applications
- Innovative shoe fashion: Complete shoes, insoles and soles
- Cycling components: Lightweight handles and seats
- Automotive parts: Damping elements and seals
- Protective equipment: Shock-absorbing pads and equipment
- Sound Management: Sound-absorbing components
This text is machine translated.
Hints
Unique properties of Filaflex FOAMY:
This material contains a propellant which is activated during printing and causes the material to expand when heated. At 100% flow rate, the line width expands by about 37.5% more than the nozzle diameter. To achieve the desired line width, the flow rate must be reduced to compensate for this expansion.
COLOR AND FOAM EFFECT:
The material becomes Heller with increasing foaming. Higher temperatures and lower flow speeds result in more foaming and thus a lighter staining. This effect is normal and indicates proper activation of the propellant.
System requirements
- Ideally, prefer a direct-drive extruder.
