Reely V-Charge 240 Quadro Scale model multifunction charger 12 V, 230 V 12 A LiPolymer, Li-ion, LiFePO, LiHV, NiCd, NiMH
EAN:
Part number:
Item no:
Number
Total (€ 217.65 / piece)
€ 217.65
plus VAT.
14-day return policy included
Highlights & Details
Multi-functional charger V-Charge 240 Quadro
- 4 charger outputsFor 1-6 LiXX cells / 1-15 NiXX cellsAsynchronous power distribution
Technical specifications
- Product type
Scale model multifunction charger
- Operating voltage
12 V
230 V
- Operating voltage
11 - 18 V / DC
230 V / AC
- Matching rechargeable battery
LiPolymer
Li-ion
LiFePO
LiHV
NiCd
NiMH
Lead
- Max. charging capacity
240 W
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (max.)
6
- Suitable for (no. of NiCd/NiMH batteries) (max.)
15
- Charging current (max.)
12 A
- Max. discharge power
10 W
- Discharge current
0.1-5 A
- Charging slots
4
- Connector system
4 mm
- Balancer plug-in
XH
- Dim
(L x W x H) 205 x 180 x 70 mm
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (min.)
1
- Suitable for (No. of NiCd/NiMH batteries) (min.)
1
- Suitable for lead-type rechargeables (max.)
20 V
- Suitable for lead-type rechargeables (min.)
2 V
- Weight
1650 g
- Manufacturer part #
RE-8264343
- Charger features
4 outputs
- Width
180 mm
- Height
70 mm
- Length
205 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2754781 Reely V-Charge 240 Quadro Scale model multifunction charger 12 V, 230 V 12 A LiPolymer, Li-ion, LiFePO, LiHV, NiCd, NiMH
User & Safety Instructions 2754781 Reely V-Charge 240 Quadro Scale model multifunction charger 12 V, 230 V 12 A LiPolymer, Li-ion, LiFePO, LiHV, NiCd, NiMH
Description
The V-Charge 240 Quadro multi-function charger offers the right all-round charger for charging different types of batteries for all ambitious model makers. It allows charging 4 batteries at the same time. Which makes makes time-consuming charging of one battery after another a thing of the past. Also lets you select battery type and charging/discharging settings individually. The charger can be powered both by 11-18 V DC and by 100V-240V mains using the built-in power supply unit. At home, when travelling, or at the airport, V-Charge 200 Duo is always a perfect choice.
This text is machine translated.
This text is machine translated.
Features
- High-quality aluminium housing
- LC display
- Intuitive user interface Soft-touch buttons
- Integrated fan
- Integrated balancer
- Ability to distribute power to the 4 charge outputs
- Battery data memory
- Various charging and discharging programs
- Individual balancing of cells in charge mode
- LiPo Meter
- Temperature sensor sockets.

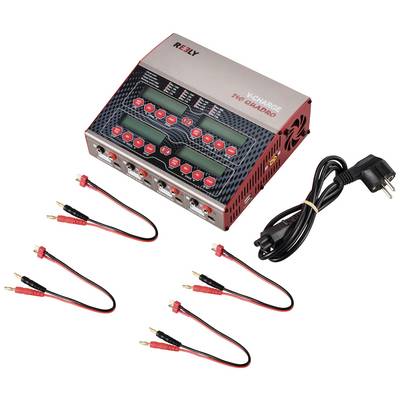

Scope of delivery
- Charger
- Power cable;
- 4 charging cables with T-plug system
- Downloadable user manual.
Hints
The total charging power of the charger is 240 W. The charging channels 1 and 3 or 2 and 4 depend on each other.The following charging services are possible:• Charging channel 1 and 2: Max. 120 W each• Charging channel 3 and 4: Max. 60 W each• Charging channel 1 and 3: Total max. 120 W.• Charging channel 2 and 4: Total max. 120 W.• Charging channel 1, 2, 3 and 4: Total max. 240 W.
