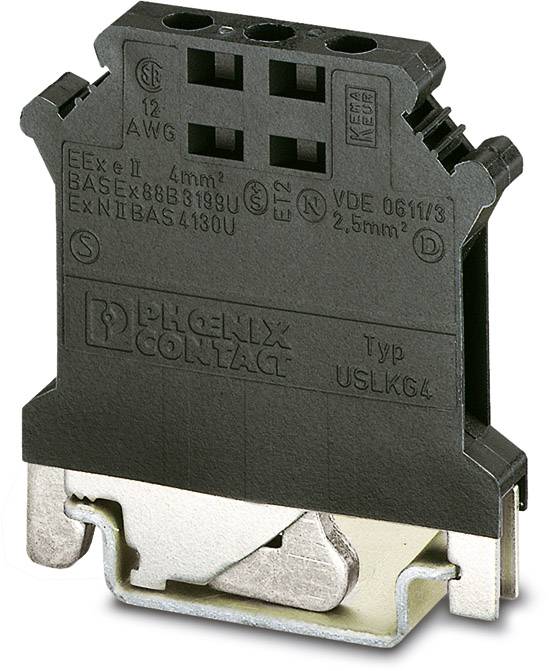

Reference potential terminal block USLKG 4 BK/BK 2798789 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Reference potential terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Content
50 pc(s)
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 11.01 / piece)
€ 550.42
plus VAT.
Only 6 Set(s) available
Highlights & Details
Reference potential terminal block USLKG 4 BK/BK
- USLKG 4 BK/BK
Technical specifications
- Product type
Reference potential terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Black
- Stripping length (max.)
9 mm
- Manufacturer part #
2798789
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
USLKG 4 BK/BK
- Dim
(L x W x H) 42.5 x 6.2 x 47 mm
- Width
6.2 mm
- Height
47 mm
- Length
42.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565185 Reference potential terminal block USLKG 4 BK/BK 2798789 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565185 Reference potential terminal block USLKG 4 BK/BK 2798789 Phoenix Contact
Description
Reference potential terminal block, with black insulation housing, for mounting on NS 32 or NS 35/7.5
