Reflecta RPS 10S Film scanner
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 973.95 / piece)
€ 973.95
plus VAT.

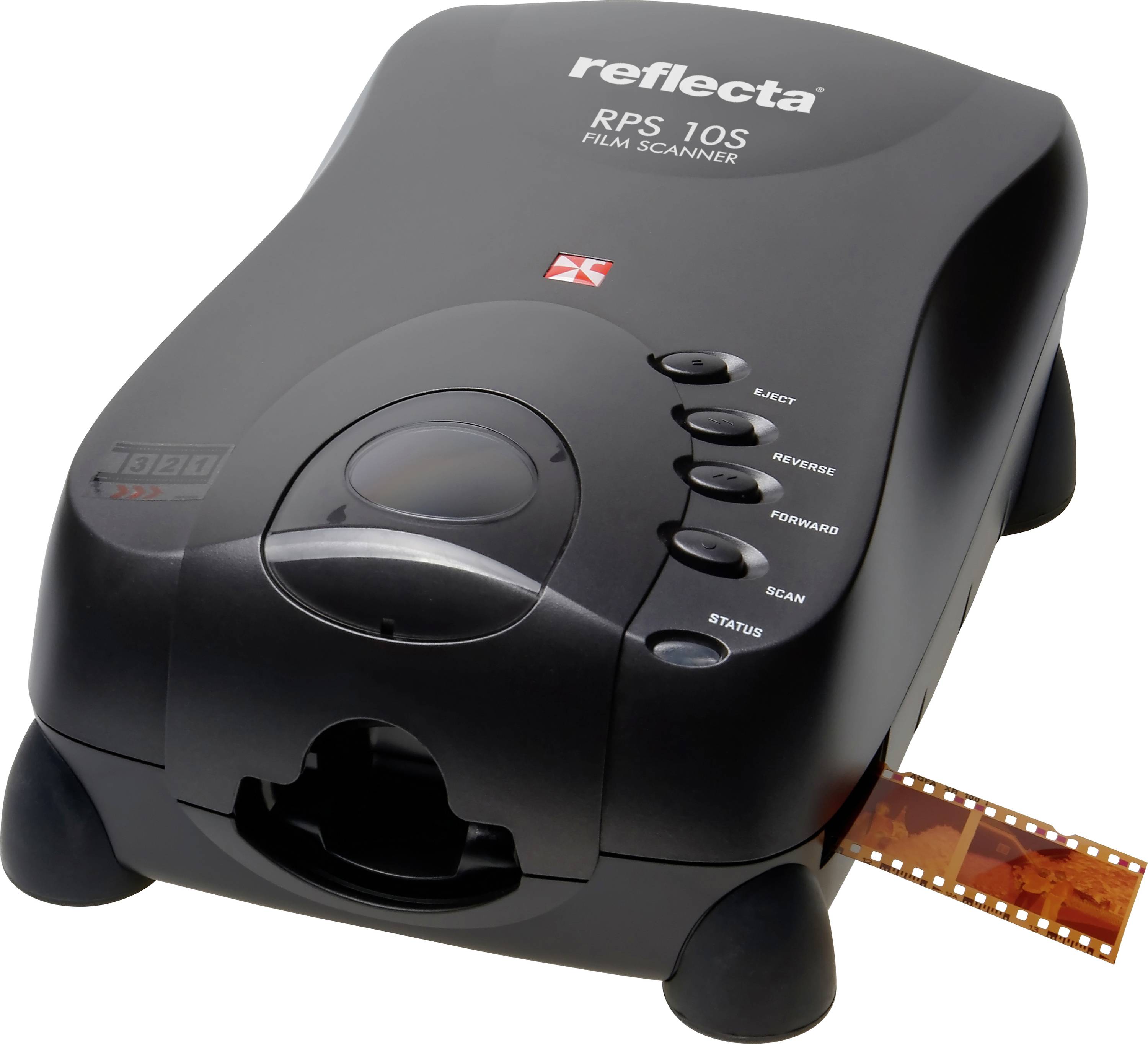

Reflecta RPS 10S film scanner
Highlights & Details
- Up to 10,000 dpi
- Dmax 4.2
- Automatic retouching
- Scans complete 35mm films
- Output in raw data format DNG
- Multipass Xpose: Increases the dynamic range through multiple exposure (HDR)
Technical specifications
- Image sensor: Linear color CCD
- Colour 48 Bit
- Max. Resolution 10,000 dpi
- Light source: Film-protecting LED
- Maximum density: Dmax 4.2
- Infrared channel: Integrated
- Duration of preview scan: 15 sec.
- Scan time slide @5000 dpi: Approx.100 sec.
- Scanning range max. 24 x 36 mm
- Film type: Negative, positive, B/W as strips (film type 135) and framed slides 5x5 cm
- PC-connection: USB 2.0
- Automatic film strip feed for strips with min. 3 and max. 40 recordings
- Function keys: Forward and backward positioning, eject, quick scan on the device
- OUTPUT FORMATS: JPG, TIFF, DNG
- Product type
Film scanner
- Interpolated resolution
10000 dpi
- Sensor type
CCD
- Colour depth
48 Bit
- Interfaces
USB
- Width
183 mm
- Height
97 mm
- Depth
274 mm
- Weight
1400 g
- Dim
(W x H x D) 183 x 97 x 274 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3398077 Reflecta RPS 10S Film scanner
User & Safety Instructions
User & Safety Instructions 3398077 Reflecta RPS 10S Film scanner
Description
Slide and film scanner with a resolution of up to 10,000 dpi and automatic transport of film strips
With a resolution of 10,000 dpi, a density of 4.2 Dmax and a high scanning speed of only about one minute per slide, the reflecta RPS 10S delivers top-quality scans.
The high speed and the "Magic Touch" technology on the hardware for removal of dust and scratches ensure you can work effectively.
A high efficiency when scanning film strips is achieved by the automatic film transport (min. 3 to max. 40 recordings). As such, the batch processing of complete film rolls is also possible.
The scanner digitizes completely independent film strips with up to 40 recordings (24 x 36mm). In addition to film strip transport, the device has a single slot for framed slides with a max. Dick e of up to 3.2 mm. In addition to the infrared-based retouching function, the scanning software also offers automatic functions for exposure, color and contrast. It is also possible to reconstruct strongly colored templates with the AutoColor feature.
This text is machine translated.
With a resolution of 10,000 dpi, a density of 4.2 Dmax and a high scanning speed of only about one minute per slide, the reflecta RPS 10S delivers top-quality scans.
The high speed and the "Magic Touch" technology on the hardware for removal of dust and scratches ensure you can work effectively.
A high efficiency when scanning film strips is achieved by the automatic film transport (min. 3 to max. 40 recordings). As such, the batch processing of complete film rolls is also possible.
The scanner digitizes completely independent film strips with up to 40 recordings (24 x 36mm). In addition to film strip transport, the device has a single slot for framed slides with a max. Dick e of up to 3.2 mm. In addition to the infrared-based retouching function, the scanning software also offers automatic functions for exposure, color and contrast. It is also possible to reconstruct strongly colored templates with the AutoColor feature.
This text is machine translated.
Scope of delivery
- RPS 10S film scanner
- Power supply unit
- USB cable
- User manual.
System requirements
- Windows 7, 8, 10, 11
Mac OS 11 or later
