Buy Reflexion LED24iBT LED TV 60 cm 24 inch EEC E (A - G) DVB-T2, DVB-C, DVB-S2, Full HD, Smart TV, Wi-Fi, CI+ Black

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

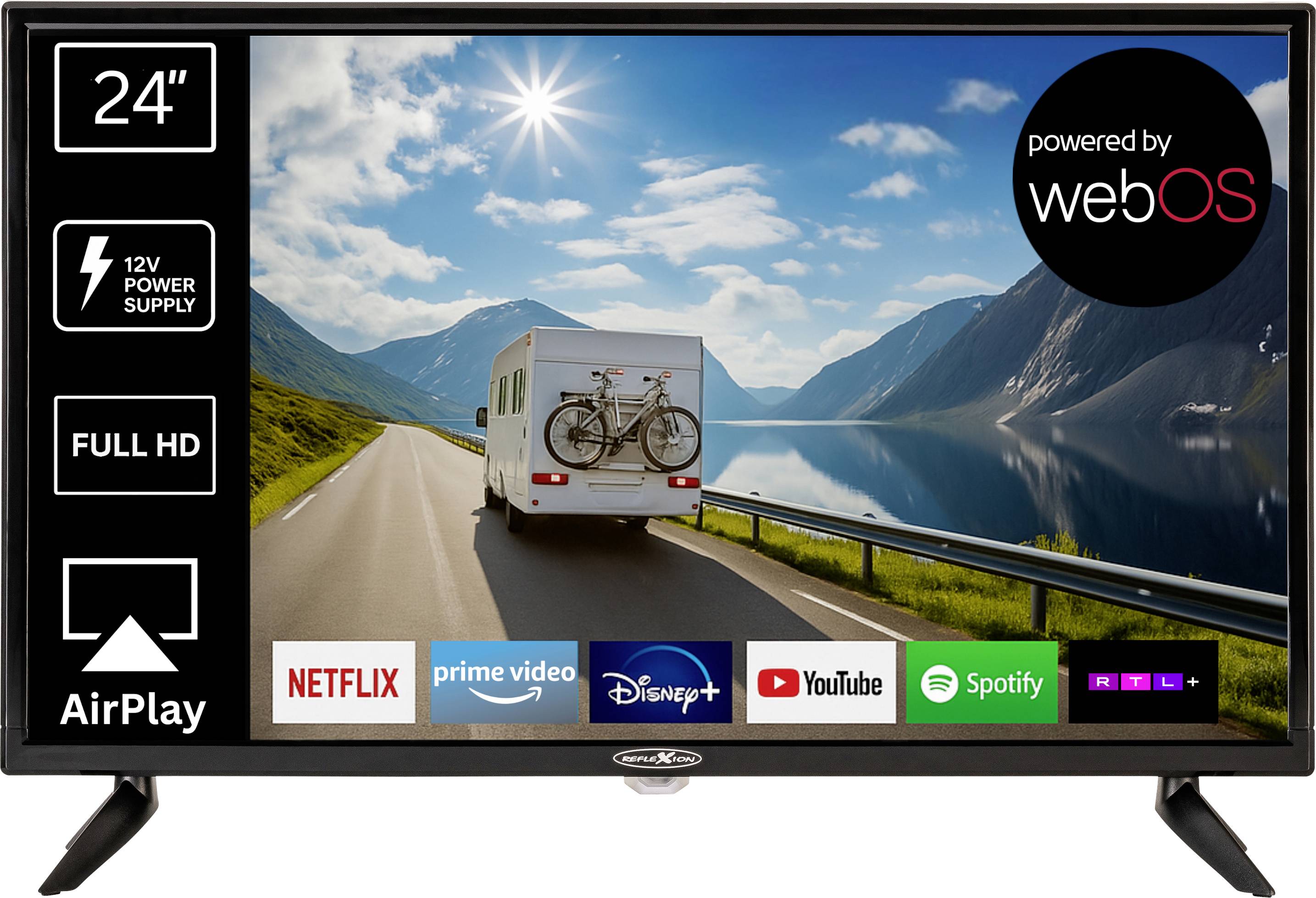

A 24-inch TV displaying a scenic road with a camper van, featuring streaming apps like Netflix, Prime Video, and Disney+ at the bottom.

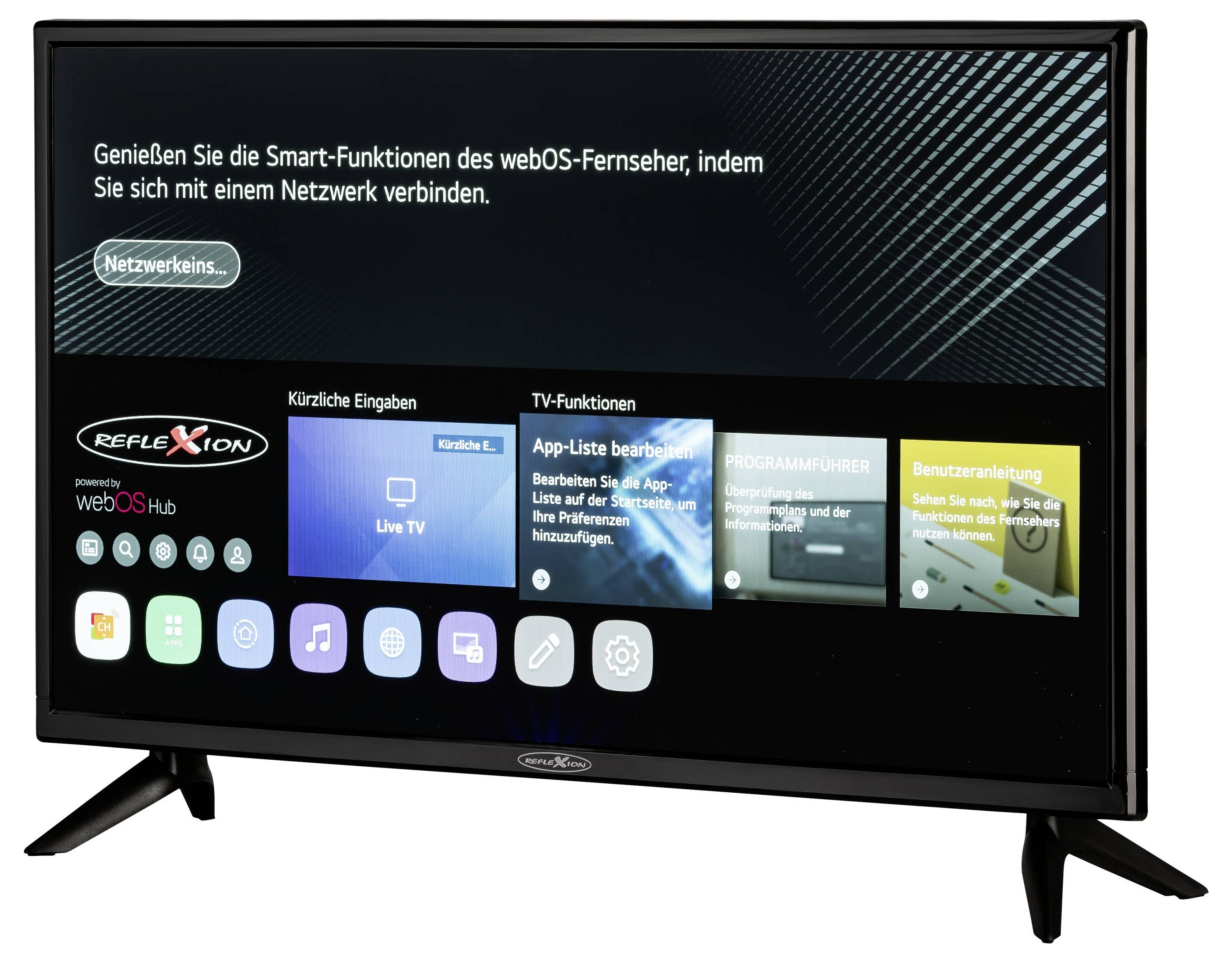

A modern television displaying its interface in German, with options for connecting to a network, live TV, app editing, and settings.

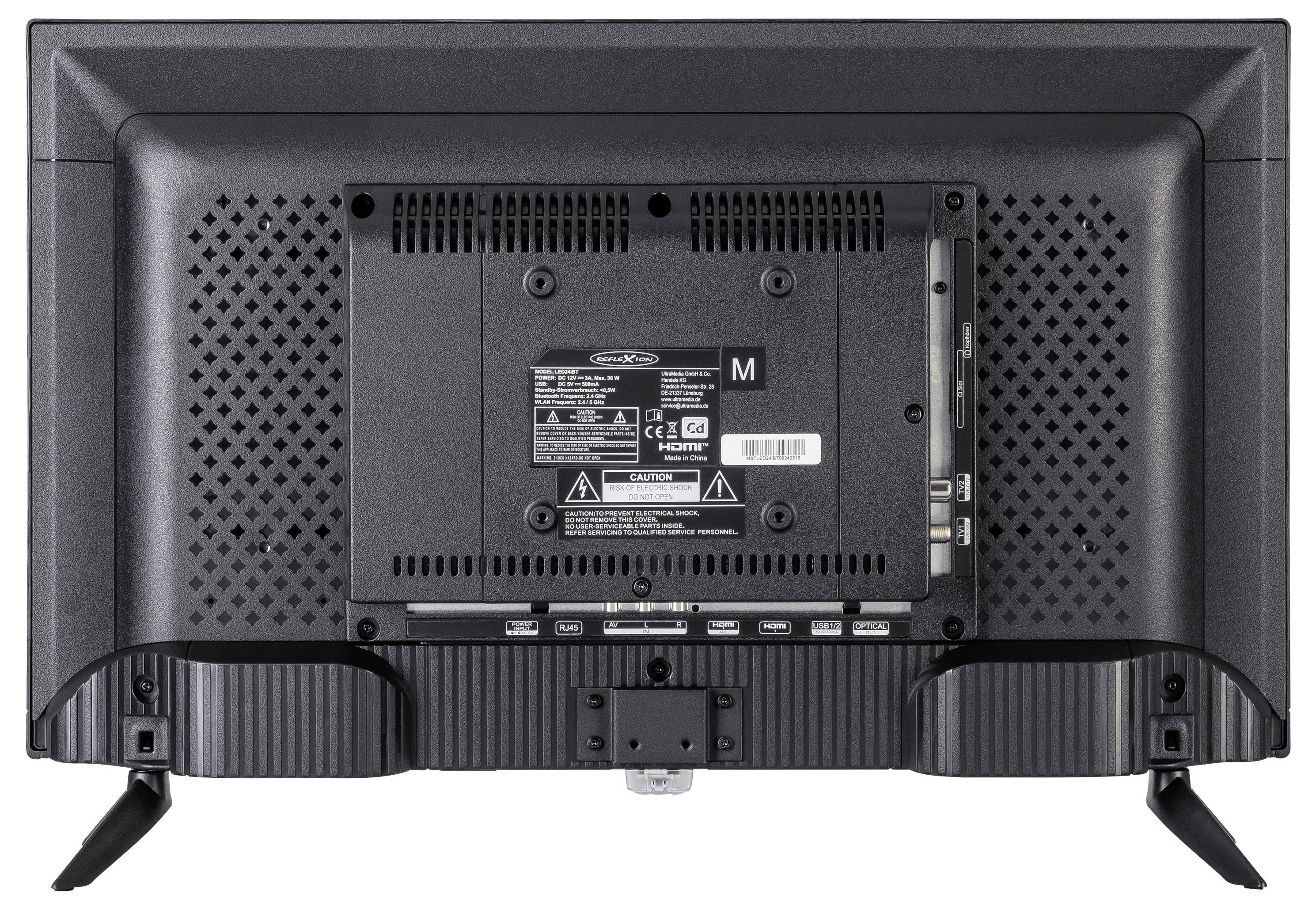

Back view of a black television with visible input ports and a central label indicating model information.

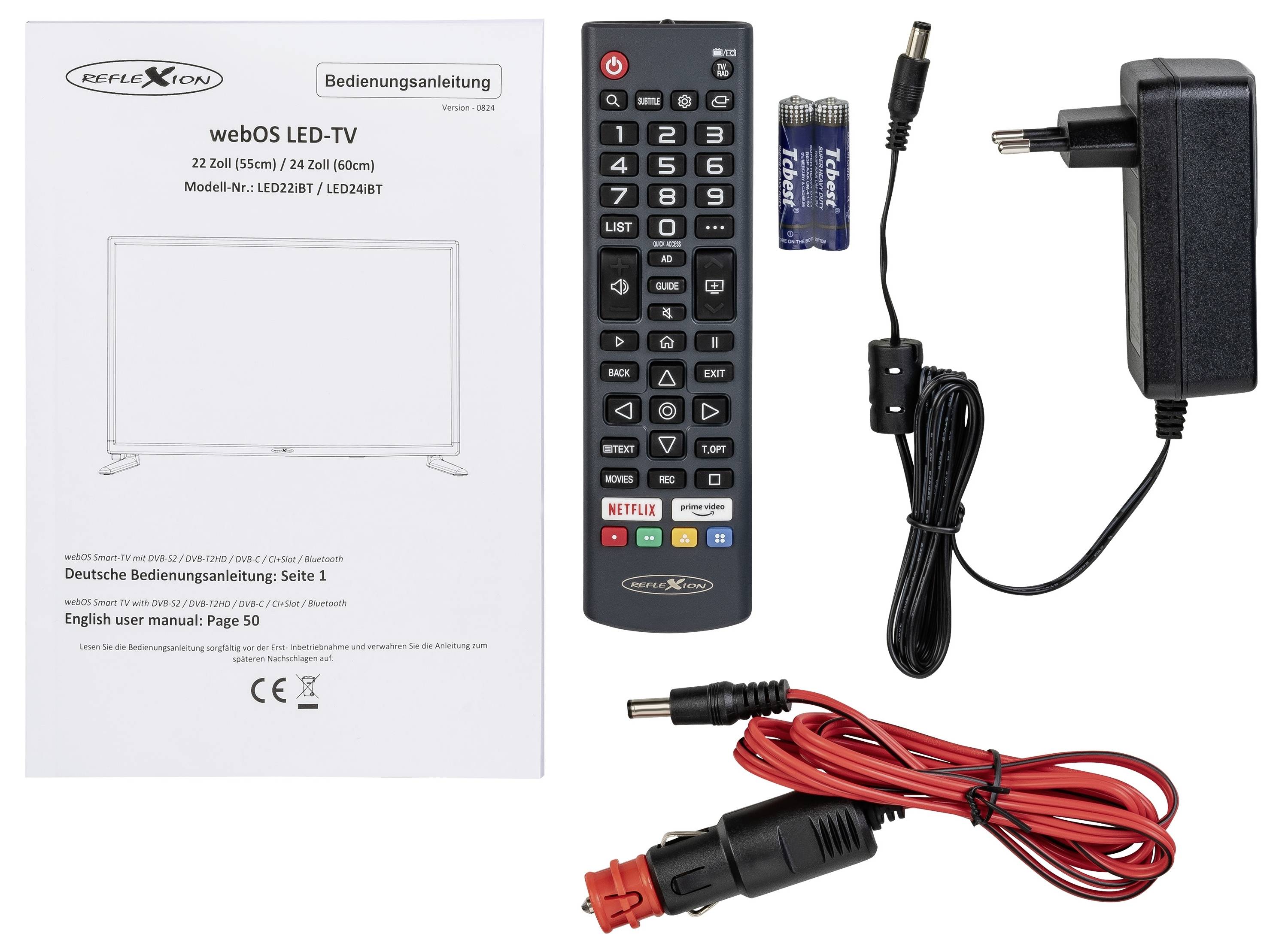

Remote control, power adapter, car charger, batteries, and instruction manuals for a webOS LED-TV model LX22BT1/LED2487.

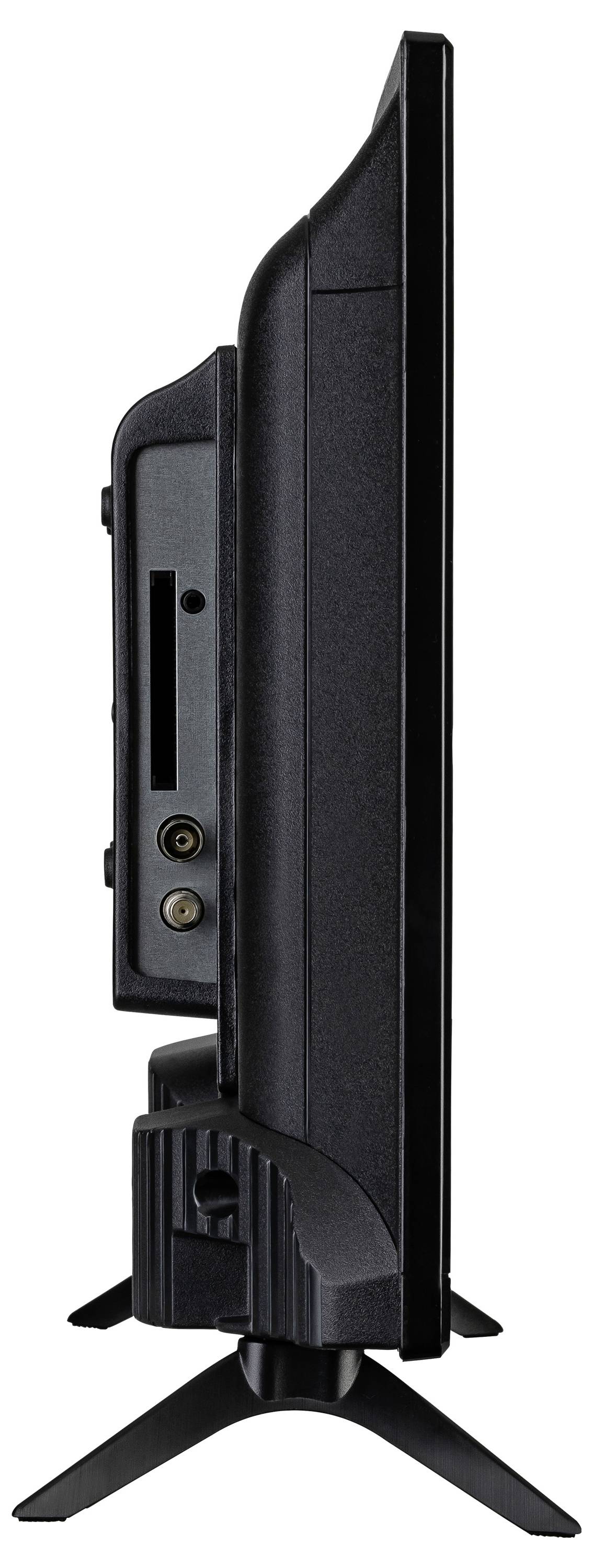

Side view of a slim black television display showing various ports for connectivity, including HDMI and USB, on a stand.

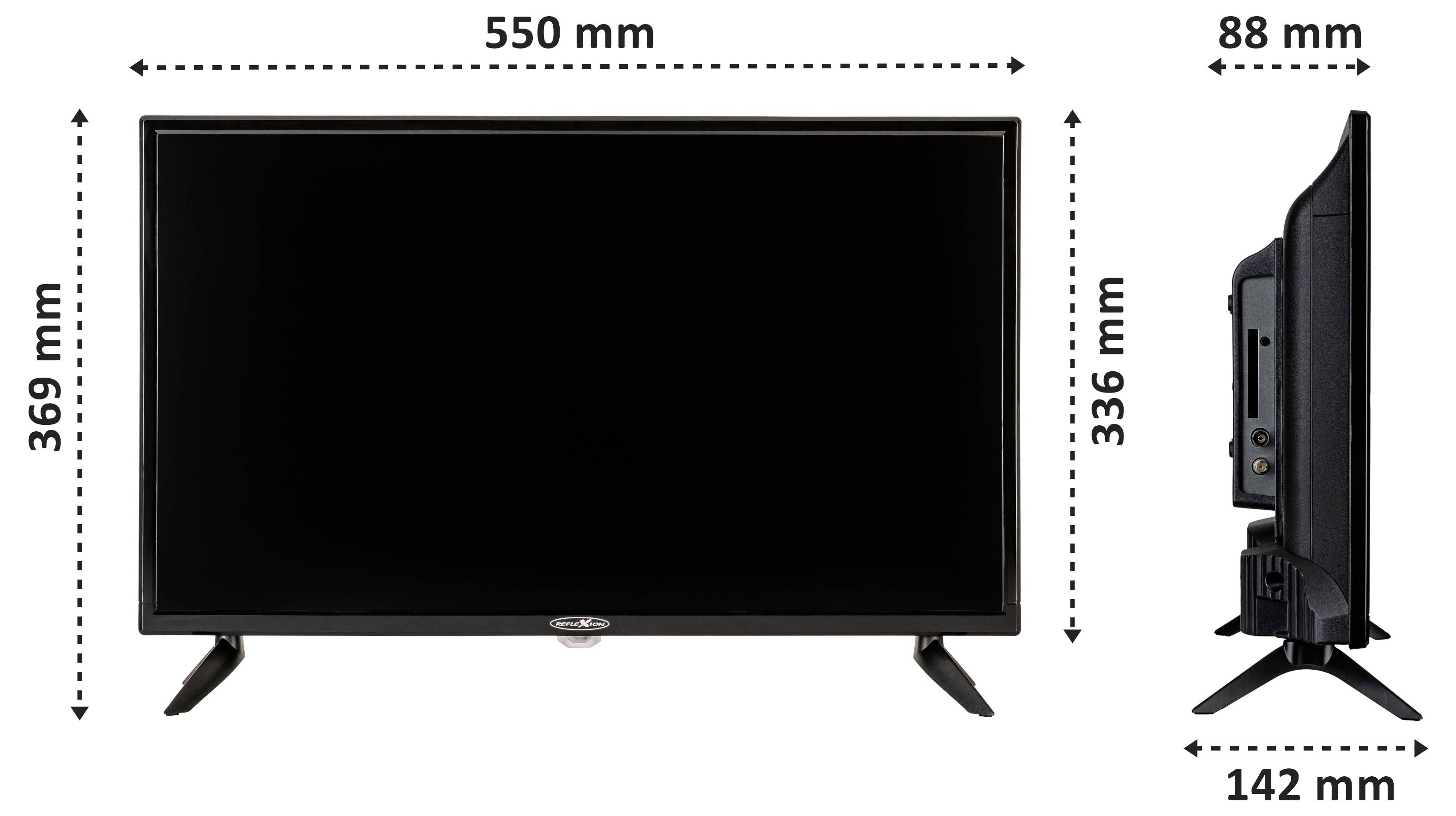

A black television with dimensions: width 550 mm, height 369 mm, depth 88 mm. Rear view shows ports. Stands elevate the TV.

1/6

Product data sheet

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 205.87 / piece)

€ 205.87

plus VAT.

Report legal concerns

Highlights & Details

Reflexion LED24iBT 24" webOS Smart-TV with DVB-S2, DVB-C/T2 HD tuner and Bluetooth

Screen size diagonal: 60 cm (24 inch)
Full HD (1920 x 1080 Pixel)
Reception: DVB-S (sat), DVB-S2, DVB-C (cable), DVB-T2 (aerial)
Energy efficiency rating (calc): E (A - G)
Recording function: None

Technical specifications

Power consumption "On" (standard SD): 22W
Type of electrical display: DLED
Aspect ratio: 16:9
Screen size (cm) 60 cm
Screen size (inches): 24 inches
Visible screen size: 15.3dm²
Refresh rate / response time 60 Hz / 20 ms
Viewing angle: H:178° / V:178°
3000:1 contrast
Brightness (cd/m²): 180 cd/m²
Input voltage for device DC 12V / 3A
Average annual consumption (kWh/1000h): 22kWh / 1000h
OSD language: German, English, etc.
Power CONSUMPTION MAXIMUM: <36W
Mercury content included in mg / lead: 0mg / No.
Weight: 3.40kg
Power consumption "On" (Standard SDR): 17.1W
Power consumption on (HDR): 22W
Power consumption standby: < 0.5W
Power consumption "networked stand-by": < 0.5W
Screen resolution (pixels) 1920 x 1080
Average annual consumption (kWh/1000h)
Standard SDR: 17,1kWh / 1000h
Average annual consumption (kWh/1000h) HDR: 22kWh / 1000h
Colours: 16.7M colors
TV function: Channels: DVB-S/S2: 6000
ATX + DVB-T/C 3000
TV-function: Video text (ATV / DTV): 1000 / 1000
Power input DC 12V 1x
Optical (output): 1x
AV L/R 1X
RJ45: 1x
TV1 DVB-S/S2: 1X
TV2 DVB-C/T2HD 1X
HDMI 2
USB 5 V/500 mA 2
Headphones (3.5 mm): 1x
CI+Slot: 1x
Bluetooth / WLAN: Antennas are integrated
WLAN: 802.11b/g/n/ac, 2.4GHz & 5GHz
2.4 GHz: Max. 17dBm / 5GHz: Max. 14dBm
Bluetooth: Bluetooth: V.5.0 / max. 6 dBm
USB formats FAT32 / Max 1TB: AVI /MP4 / MPEG / MPG / MOV/
MKV / VOB / JPG / JPEG / BMP / PNG / MP3 / AAC
Smart TV interface: WebOS 2.0s (version 8.1.0 or higher) - automatic
Updates
AUDIO output 2x 3W
Weight (without feet): 2.15 kg
Weight, note: With base
VESA 100 x 100 mm
Wall mounting option: Yes

Features: Smart TV
CI+
Camping TV

Manufacturer: Reflexion

Product type: LED TV

Screen size diagonal (inches): 24 inch

Reception: DVB-S (sat)
DVB-S2
DVB-C (cable)
DVB-T2 (aerial)

Display size: 24 inch - 29 inch

Contrast ratio (dyn): 3000 : 1

Brightness: 180 cd/m²

Network/internet function: Bluetooth®
WiFi

Wi-Fi: built-in

No. of HDMI connections: 2

No. of USB ports: 2 x

Interfaces: Digital audio (optical)
RJ45
AV
Headphone jack (3.5 mm)
CI+ slot

Audio power (max.): 2 x 3 W

Power consumption (standby): 0.5 W

Recording function: None

Image format: 16:9

Display technology: LED

: 100 x 100 mm

Wall mounting option: Yes

Factory colour: Black

Width: 550 mm

Height: 369 mm

Depth: 142 mm

Height (without base): 336 mm

Device depth (without stand): 88 mm

Weight: 3.4 kg

Weight, information: with base

Power supply (details): 230 V

Power supply (LOV): mains-powered

: E (A - G)

Dim: (W x H x D) 550 x 369 x 142 mm

Viewing angle: 178°

: Manufacturer-specific

Screen resolution: Full HD (1920 x 1080 Pixel)

Display (cm): 61 cm

Screen size diagonal (cm): 60 cm

Screen size diagonal (inches): 24 inch

: 22 kWh/year

Power consumption (off): 0.5 W

Power consumption (ON): 22 W

Standby consumption: < 0.5 W

Documents & Downloads

Datasheet

Datasheet 3368913 Reflexion LED24iBT LED TV 60 cm 24 inch EEC E (A - G) DVB-T2, DVB-C, DVB-S2, Full HD, Smart TV, Wi-Fi, CI+ Black

User & Safety Instructions

User & Safety Instructions 3368913 Reflexion LED24iBT LED TV 60 cm 24 inch EEC E (A - G) DVB-T2, DVB-C, DVB-S2, Full HD, Smart TV, Wi-Fi, CI+ Black

Warranty Terms

Warranty Terms 3368913 Reflexion LED24iBT LED TV 60 cm 24 inch EEC E (A - G) DVB-T2, DVB-C, DVB-S2, Full HD, Smart TV, Wi-Fi, CI+ Black

Description

Basic Smart-TV with triple-tuner

This text is machine translated.

Features

DVB-T2 HD, DVB-S2, DVB-C
WebOS smart function (LG Store)
Bluetooth

Scope of delivery

Remote control (batteries included)
User manual.

Hints

HDMI is a registered trademark of HDMI Licensing, LLC. The “CI Plus” Logo is a trademark of CI Plus LLP. All information provided is subject to change without notice. Design and functions are subject to change
