Relacart UR-222D Radio receiver
EAN:
Part number:
Item no:
Highlights & Details

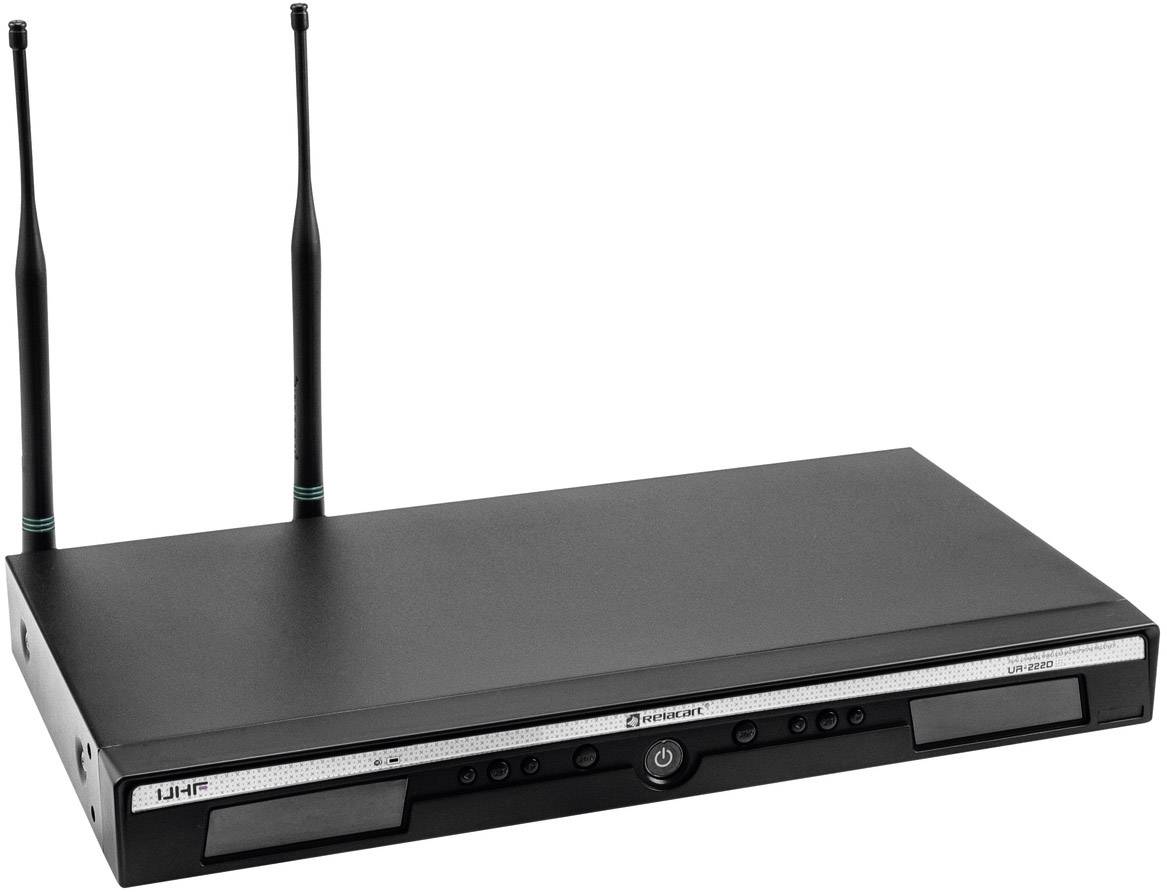

UR-222D 2-channel UHF receiver
- 2-channel multi-frequency radio receiver with True Diversity technology
Technical specifications
- Product type
Radio receiver
- Factory colour
Black
- Dim
(L x W x H) 260 x 410 x 460 mm
- Weight
1.9 kg
- Length
260 mm
- Width
410 mm
- Height
460 mm
- No. of frequencies (adjustable)
10
- Channels
2
80 m
- Interfaces
6.3 mm jack out
- No of. XLR outputs
1 x
- Transmission frequency
823-832 MHz und 863-865 MHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1876816 Relacart UR-222D Radio receiver
Description
UR-222D 2-channel UHF receiver
This text is machine translated.
This text is machine translated.
Features
- 2 Registration-free frequency ranges: 823-832 MHz (duplex gap) and 863-865 MHz
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Up to 9 systems can be operated in parallel free of interference
- Pilot tone technology (PLL) for trouble-free operation
- Range of sight contact approx. 80 meters
- Automatic frequency search (AFS), to find interference-free reception channels
- Quick and error-free synchronization between the receiver and the transmitter via infrared

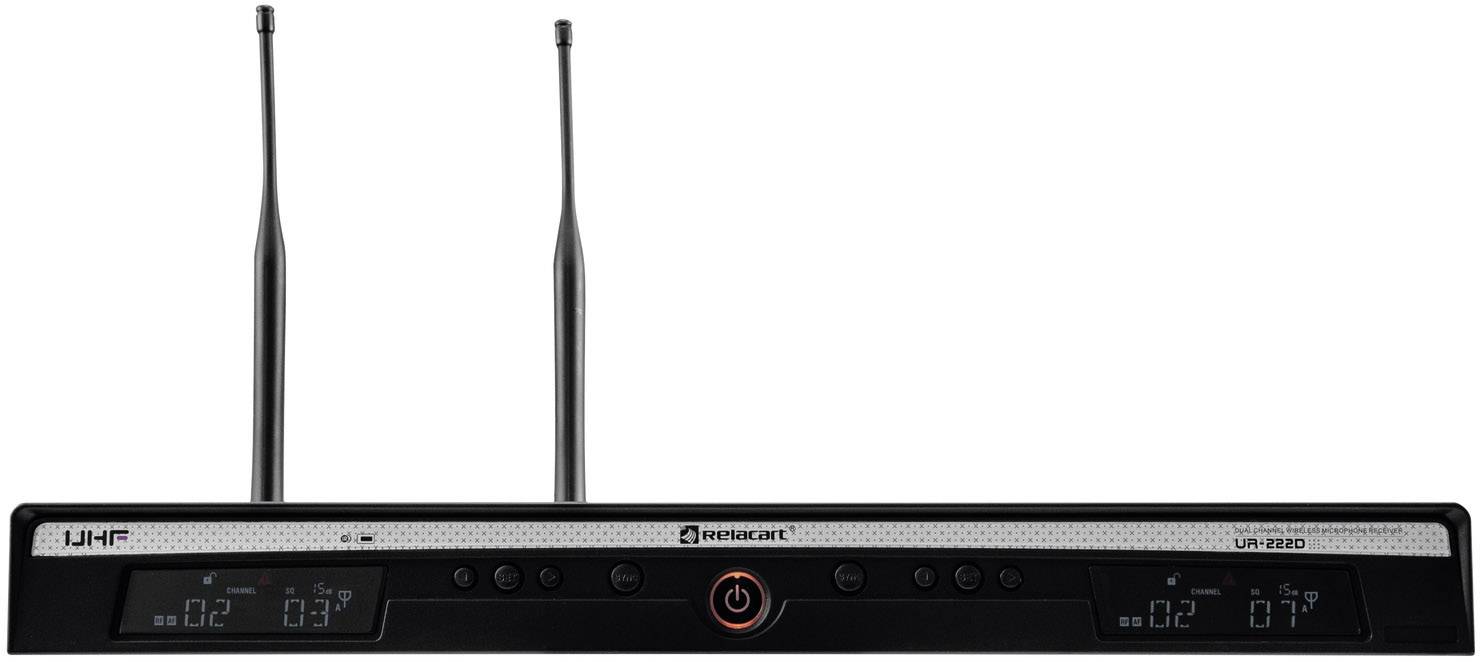

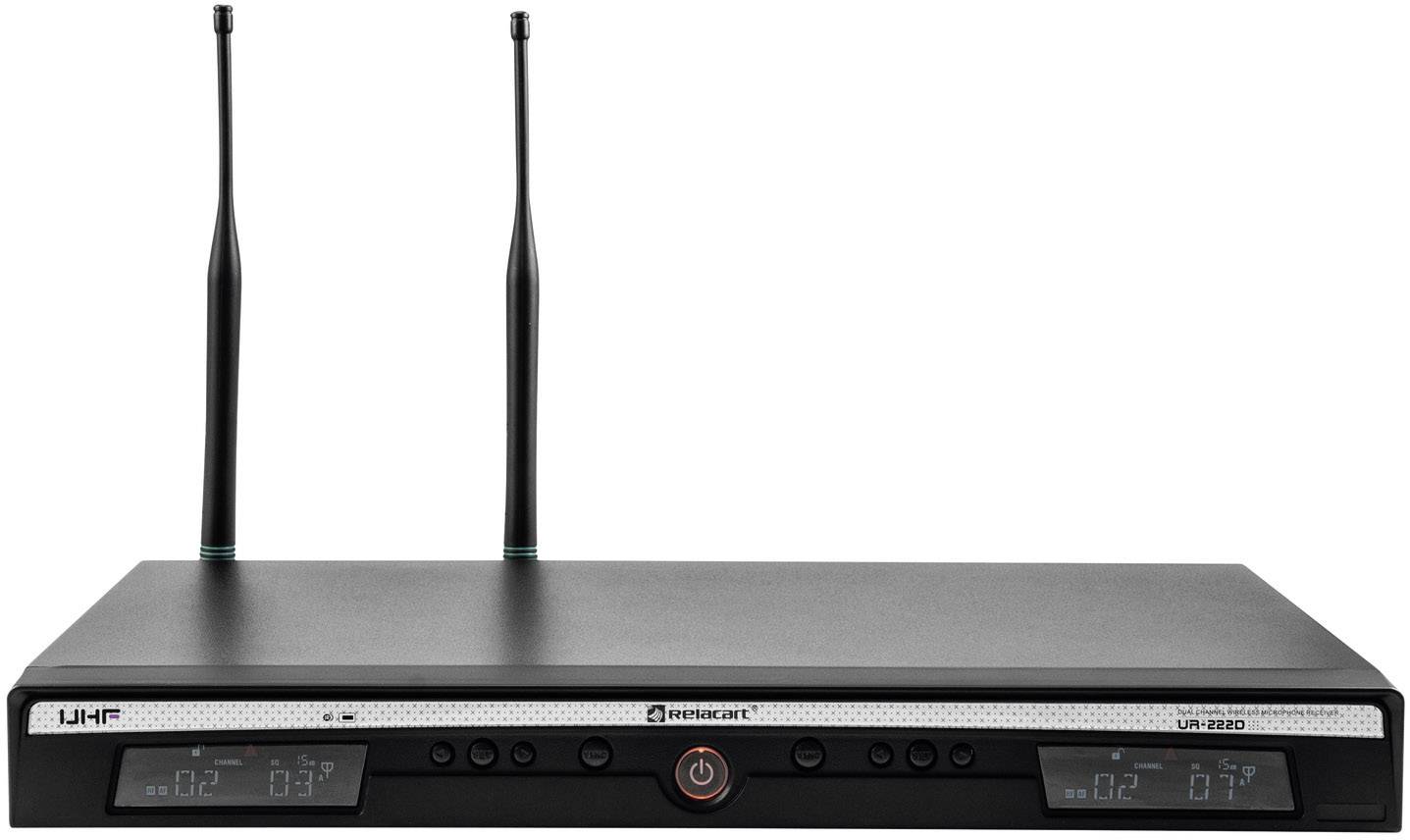

- LCD display for battery capacity of the microphone, antenna A/B, RF signal strength, AF audio level and frequency

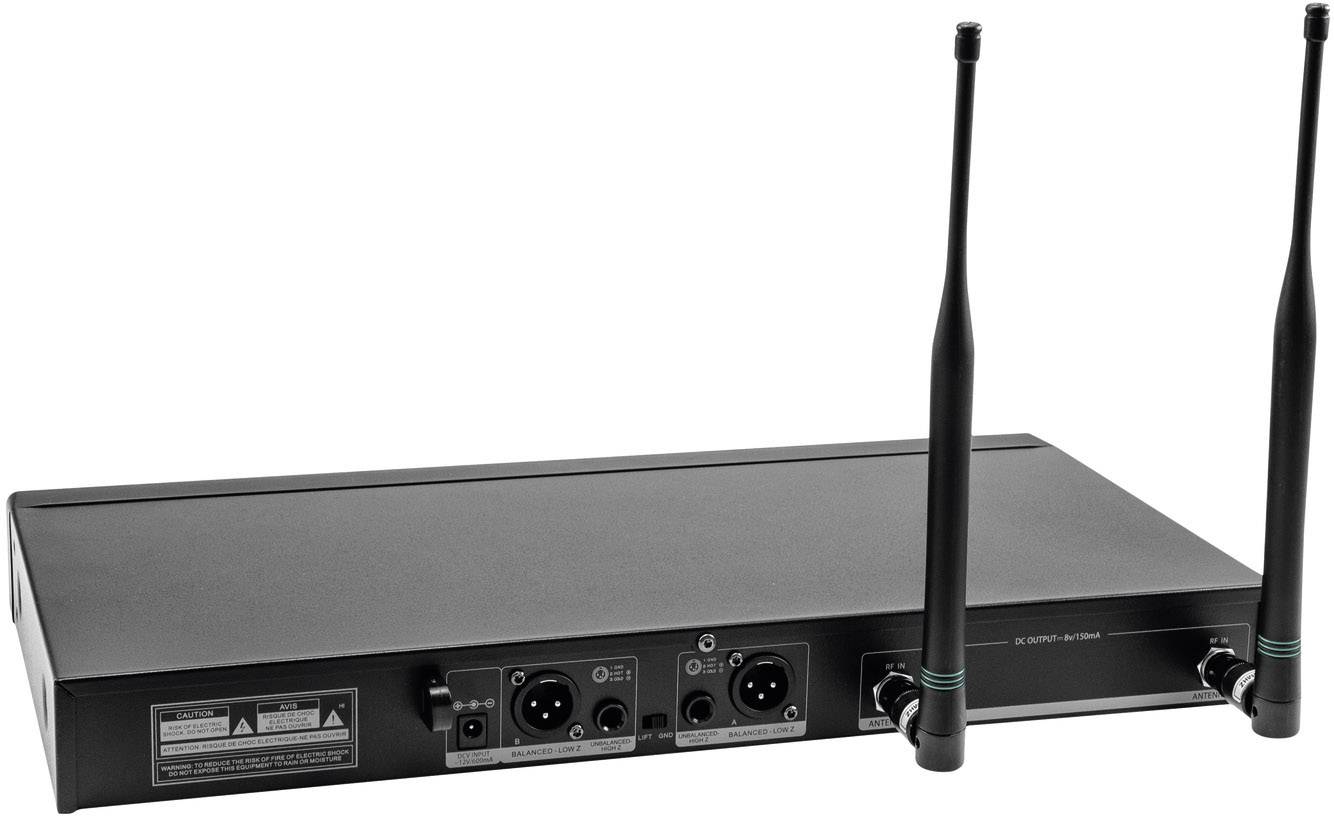

- XLR and 6.3 mm jack output
- 2 removable antennas (BNC) enable the combination with the antenna splitter R-14 D

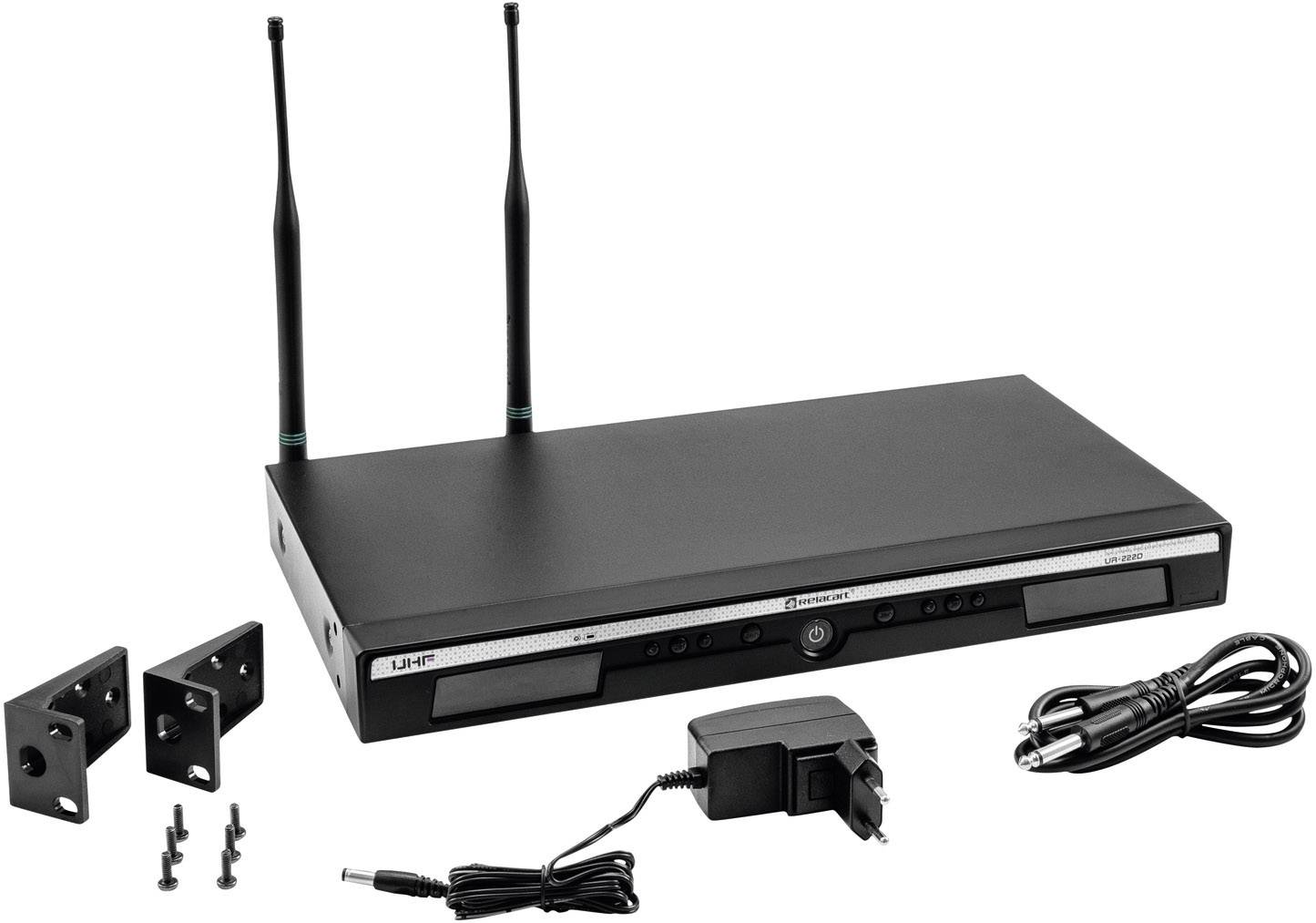

- Supplied in a practical transport bag with jack cable and power supply
- Heavy duty metal casing
- 483-mm-rack mounting with supplied mounting angles possible
- Matching transmitter available separately: hand-held microphone (UH-222 D) and belt transmitter (UT-222)
- Free registration and in large parts of the EU (duplex gap please check country-specific)
- On/Off/mute switch: Yes.
