Relay 1 change-over Schneider Electric A9E21182 Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay
Functions
Undervoltage and overvoltage
Contact type
1 change-over
Switching current (max.)
8 A
Technical specifications
- Packaging type
Piece
- Product type
Relay
- Type
A9E21182
- Reading range (min.)
50 V DC
- Reading range (max.)
500 V DC
- Functions
Undervoltage and overvoltage
- Operating voltage
230 V
- Amperage adjustment range (max.)
8 A
- Adjustment range (amperage)
8 A (max)
- Contact type
1 change-over
- Switching current (max.)
8 A
- Max. switching capacity
3 VA
- Connection
Clamp
IP20
- Min. temperature
-5 °C
- Max. temperature
55 °C
- Width
36 mm
- Height
88.1 mm
- Depth
67 mm
- Dim
(W x H x D) 36 x 88.1 x 67 mm
- Content
1 pc(s)
- Weight
215 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1862848 Relay 1 change-over Schneider Electric A9E21182 Piece 1 pc(s)
Description

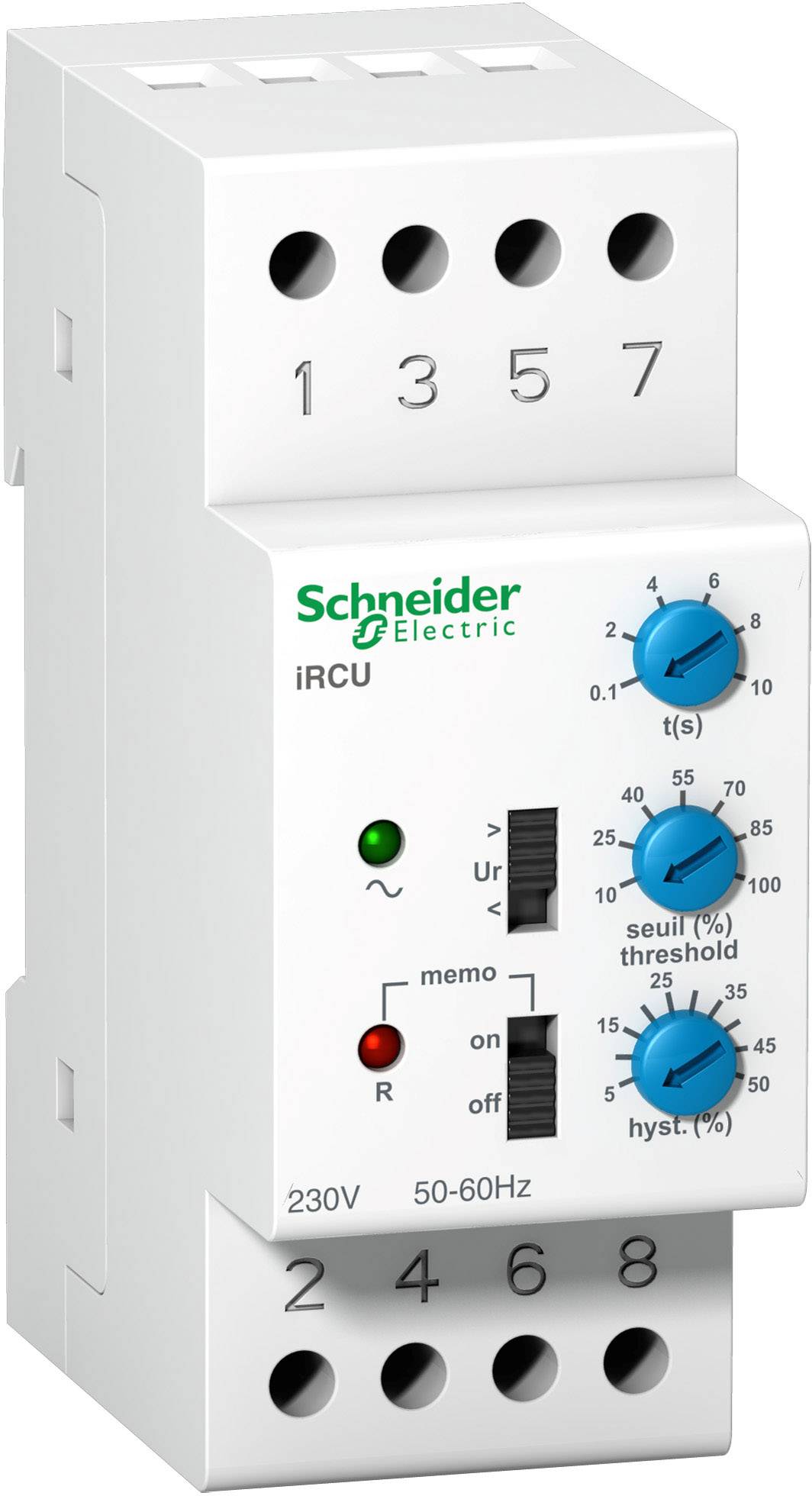

Voltage control relay iRCU, 8 A, 230 V AC, 1 changer. Relay Application: voltage relay control product range: iRCU - Short description of the device: iRCU-combined mens. d. Signal contacts: 1 changer
