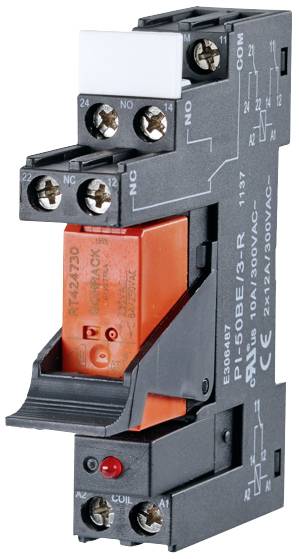

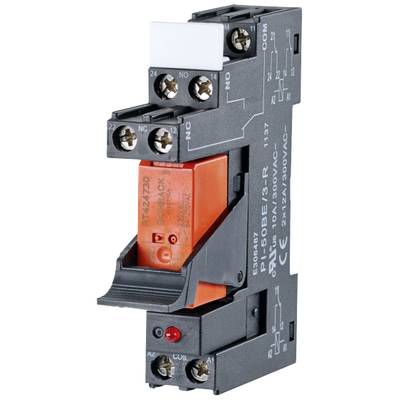

Relay 230 V AC (max) 2 change-overs Metz Connect RM3-2W 230 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Relay
Max. operating voltage
230 V AC
Contact type
2 change-overs
Switching voltage (max.)
250 V AC
Type
RM3-2W 230 V AC
Datasheet (PDF)
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Technical specifications
- Power consumption max. 3.3 mA
- Product type
Relay
- Type
RM3-2W 230 V AC
- Operating voltage
230 V AC
- Max. operating voltage
230 V AC
- Operating voltage
230 V AC (max)
- Switch-on current
15 A
- Contact type
2 change-overs
- Contact material
AgNi 90/10
- Switching voltage (max.)
250 V AC
- Connection
Screw terminal
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- Width
15.50 mm
- Height
75 mm
- Depth
65 mm
- Dim
(W x H x D) 15.50 x 75 x 65 mm
- Content
1 pc(s)
- Weight
95 g
- AWG max.
22
- AWG (min.)
12
- Factory colour
Black
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
Documents & Downloads
Datasheet
Datasheet 3164629 Relay 230 V AC (max) 2 change-overs Metz Connect RM3-2W 230 V AC 1 pc(s)
Description
Relay module for potential separation between logic and load. Connection with screw terminals, 3-level relay socket, pluggable relay, with labeling field, socket, Holding bracket and LED module.
This text is machine translated.
This text is machine translated.
Features
- Interface technology
- Interface component
- Relay module
- Industrial Relays
- Socket
- Plug-in relay
- 2 changeovers
