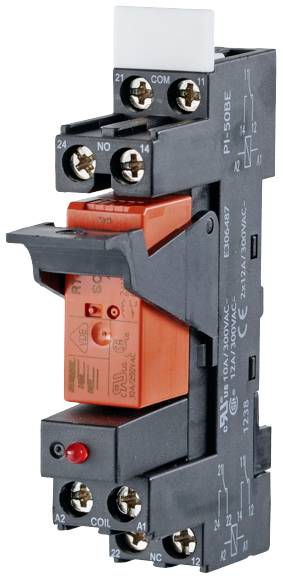

Relay 24 V AC (max) 2 change-overs Metz Connect RM 21-21 24 V AC Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay
Max. operating voltage
24 V AC
Contact type
2 change-overs
Switching voltage (max.)
250 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Power consumption max. 32 mA
- Packaging type
Piece
- Product type
Relay
- Type
RM 21-21 24 V AC
- Features
pluggable
- Operating voltage
24 V AC
- Max. operating voltage
24 V AC
- Operating voltage
24 V AC (max)
- Switch-on current
15 A
- Contact type
2 change-overs
- Contact material
AgNi 90/10
- Switching voltage (max.)
250 V AC
- Connection
Screw terminal
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- Width
15.50 mm
- Height
75 mm
- Depth
65 mm
- Dim
(W x H x D) 15.50 x 75 x 65 mm
- Content
1 pc(s)
- Weight
95 g
- AWG max.
22
- AWG (min.)
12
- Factory colour
Black
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3164627 Relay 24 V AC (max) 2 change-overs Metz Connect RM 21-21 24 V AC Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3164627 Relay 24 V AC (max) 2 change-overs Metz Connect RM 21-21 24 V AC Piece 1 pc(s)
Description
Relay modules provide electrical isolation between the logic and load. Connection with screw terminals, 2-level relay socket, pluggable relay, with labeling field, socket, Holding bracket and LED module.
This text is machine translated.
This text is machine translated.
Features
- Interface technology
- Interface component
- Relay module
- Industrial Relays
- Socket
- Plug-in relay
- 2 changeovers
