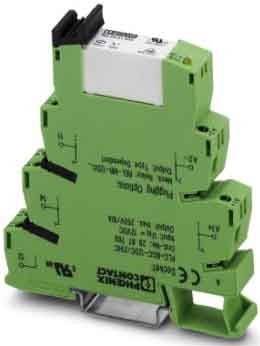

Relay Module PLC-RSC- 12DC/21HC 2967617 Phoenix Contact
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 13.87 / piece)
€
Highlights & Details
Relay Module PLC-RSC- 12DC/21HC
- Industrial packaging, pack of 10
Technical specifications
- Type
PLC-RSC- 12DC/21HC
- Connection
Screw terminal
- Contact type
1 change-over
- Contact material
AgNi
- Nominal voltage
12 V DC
- Switching voltage (max.)
250 V DC
250 V AC
- Switching current (max.)
10 A
- Features
+ LED
+ flyback diode
+ reverse polarity protection
IP20
- Max. temperature
+60 °C
- Min. temperature
-40 °C
- Depth
94 mm
- Width
14 mm
- Height
80 mm
- Dim
(W x H x D) 14 x 80 x 94 mm
- Content
10 pc(s)
- Industrial packaging
Yes
- Product type
Interface relay
Documents & Downloads
Datasheet
Datasheet 704111 Relay Module PLC-RSC- 12DC/21HC 2967617 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 704111 Relay Module PLC-RSC- 12DC/21HC 2967617 Phoenix Contact
Description
PLC relay, consisting of base terminal block PLC-BSC.../21 HC with screw connection, and pluggable miniature relays for high continuous current, for assembly on DIN rail NS 35/7.5, 1 PDT, input voltage 12 V DC, limiting continuous current up to 10 A
