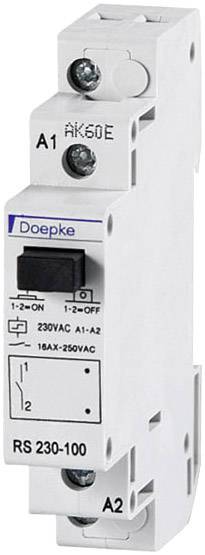

Remote switch DIN rail Doepke RS 230-100 1S 230V 1 maker 230 V 1980 W Piece 1 pc(s)

Surge current switch, also: remote or pulse switch or ELTAKO, switch of an electric impulse and by another again. The serial RS switches electrical loads of up to 16 A in pulse mode. The design is suitable for installation in current distribution boards. This surge current switch have local command inputs for the switch on and off. Features: - High flexibility through various contact configurations; contour and terminal compatible with the installation relay program; option a visual indication of operating status by means of LED; switching noise and without humming noises; on-time: 100% with spacer 0.5 TE; - front-side switch position indicator; - glow lamps in parallel with control keys is possible; - easy connection by generously dimensioned, captive terminals; - no background plug of the connecting wires possible; - easy access for the connection of the coil power; - Touch-safe according to BGV A3; - simply snaps on to the 35-mm-rail; - Local and central control - two-stage groups can be switched (only RSZ) Installation type: quick mounting on rail fixing - any installation position applications: The components offer universal application possibilities for control tasks in the industrial and building technology as well as in the home installation. It is particularly suitable for switching of lighting systems, electric heating, ventilation, air-conditioning devices, fans, heat pumps and of glow and gas-discharge lamps. Notes: - the name of the devices of the series RS describes both the rated voltage (first digit group) as well as the earth (last digit group) in the sequence closer, opener and changer is listed. Thus has a "RS 024-110", e.g. a rated voltage of 24V, a normally open and normally closed, but not any changer-contact; - the power-on time (ED) is approximately 1 h. To achieve 100% ED is the double sided use of the spacer RD 05 necessary.; - in parallel glow lamps, illuminated push buttons generate reactive currents of the too great number by a condenser block can be compensated in order to high coil heating to prevent.

This text is machine translated.
