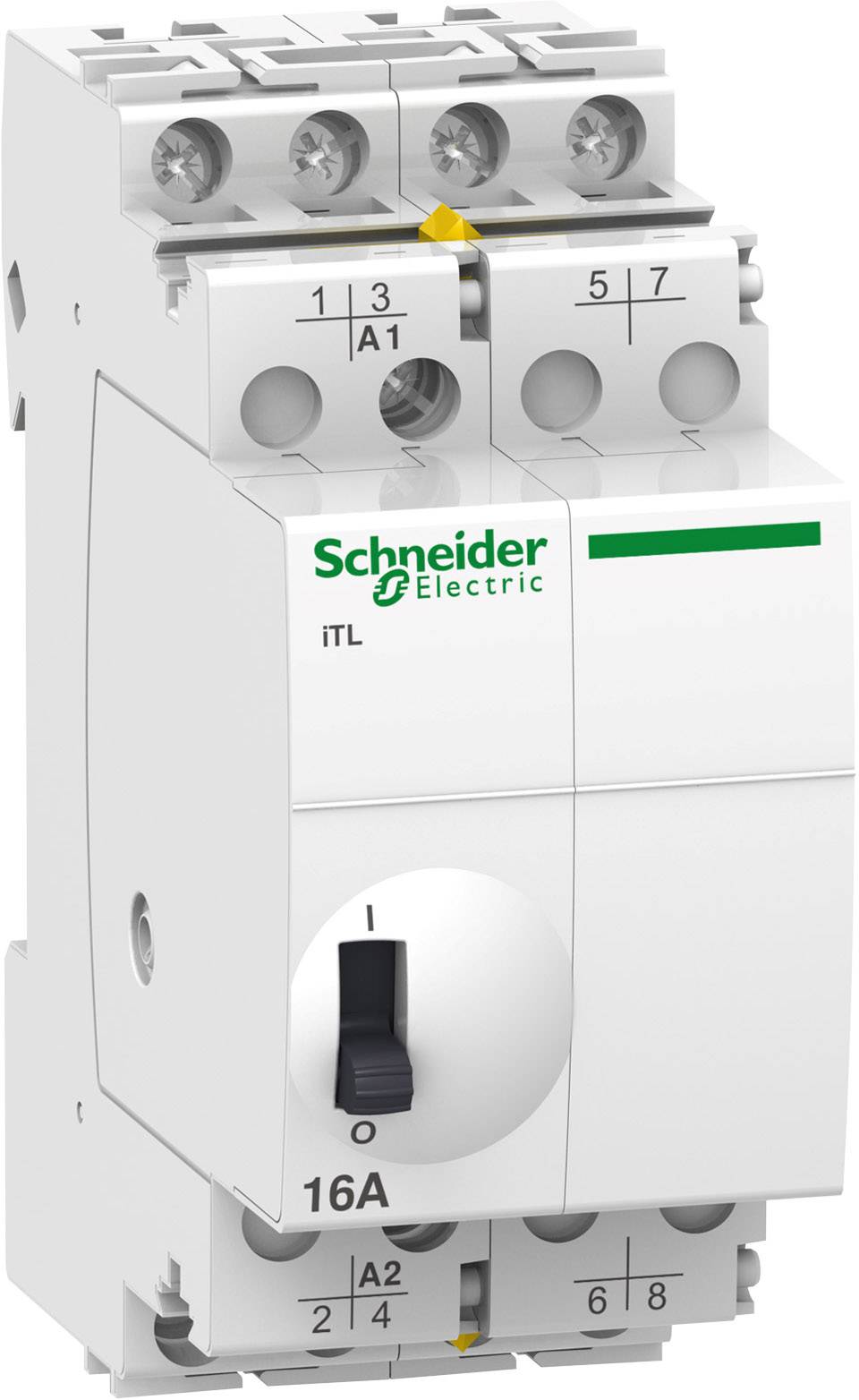

Remote switch DIN rail Schneider Electric A9C30114 4 makers 415 V AC 16 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Remote switch
Operating voltage
415 V AC
Contact type
4 makers
Switching voltage (max.)
415 V AC
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
A9C30114
- Operating voltage
415 V AC
- Min. operating voltage
24 V AC
- Max. operating voltage
415 V AC
- Operating voltage
24 - 415 V AC
- Permanent current (max.)
16 A
- Contact type
4 makers
- Switching voltage (max.)
415 V AC
- Switching current (max.)
16 A
- Electrical lifespan
200000 cycles
- Mounting type
DIN rail
- Min. temperature
-20 °C
- Max. temperature
+50 °C
- Width
36 mm
- Height
84 mm
- Depth
60 mm
- Dim
(W x H x D) 36 x 84 x 60 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1860082 Remote switch DIN rail Schneider Electric A9C30114 4 makers 415 V AC 16 A Piece 1 pc(s)
Description
Cutter A9C 30114 remote switch iTL 4 pin 4S 16A 12VDC 24VAC 50/60Hz
