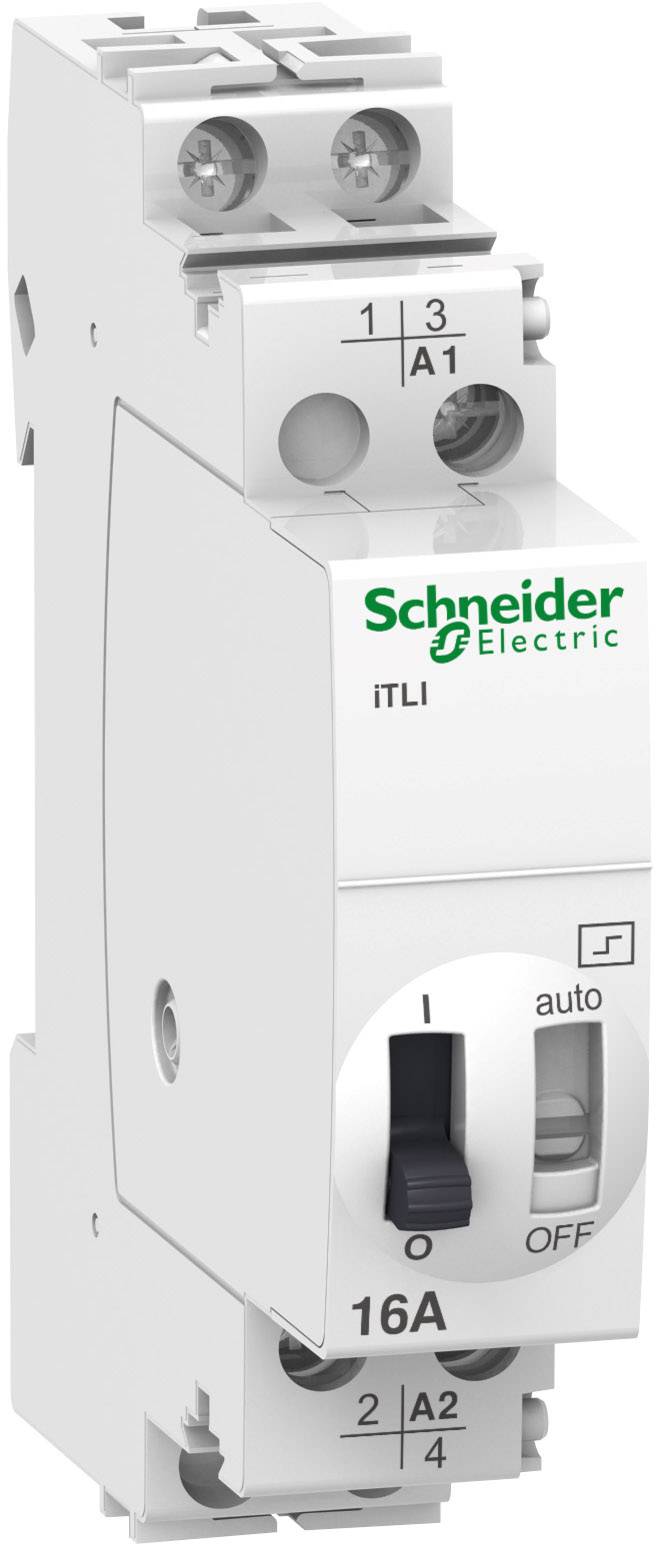

Remote switch DIN rail Schneider Electric A9C30215 1 change-over 250 V AC 16 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Remote switch
Operating voltage
250 V AC
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Technical specifications
- Packaging type
Piece
- Product type
Remote switch
- Type
A9C30215
- Operating voltage
250 V AC
- Min. operating voltage
24 V AC
- Max. operating voltage
250 V AC
- Operating voltage
24 - 250 V AC
- Permanent current (max.)
16 A
- Contact type
1 change-over
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Electrical lifespan
200000 cycles
- Mounting type
DIN rail
- Min. temperature
-20 °C
- Max. temperature
+50 °C
- Width
18 mm
- Height
84 mm
- Depth
60 mm
- Dim
(W x H x D) 18 x 84 x 60 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1860347 Remote switch DIN rail Schneider Electric A9C30215 1 change-over 250 V AC 16 A Piece 1 pc(s)
Description
Cutter A9C30215 remote switch 2-pin iTLI 1S1Ö 16A 24VDC 48VAC 50/60Hz
This text is machine translated.
This text is machine translated.
