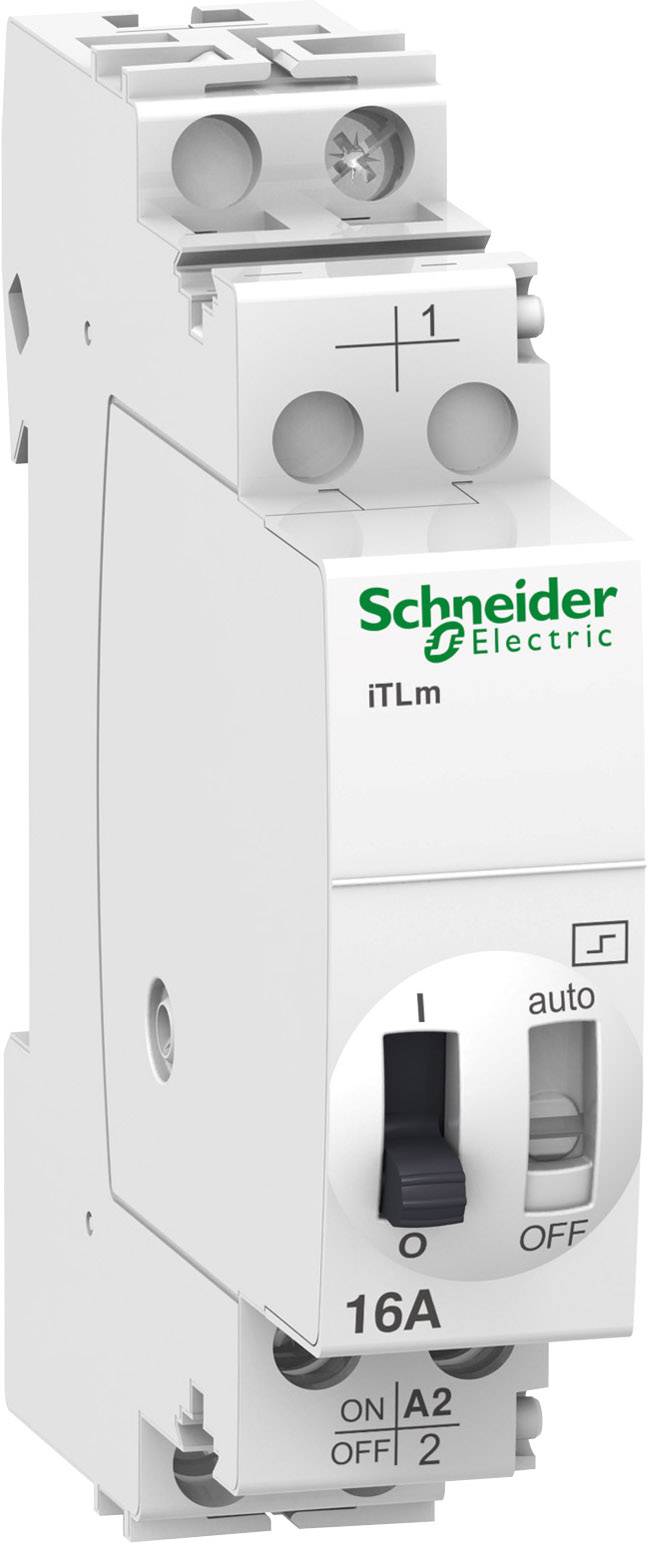

Remote switch DIN rail Schneider Electric A9C34811 1 maker 250 V AC 16 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
Operating voltage
250 V AC
Contact type
1 maker
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
Technical specifications
- Product type
Remote switch
- Type
A9C34811
- Operating voltage
250 V AC
- Min. operating voltage
24 V AC
- Max. operating voltage
250 V AC
- Operating voltage
24 - 250 V AC
- Permanent current (max.)
16 A
- Contact type
1 maker
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Electrical lifespan
200000 cycles
- Mounting type
DIN rail
- Min. temperature
-20 °C
- Max. temperature
+50 °C
- Width
18 mm
- Height
84 mm
- Depth
60 mm
- Dim
(W x H x D) 18 x 84 x 60 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1860366 Remote switch DIN rail Schneider Electric A9C34811 1 maker 250 V AC 16 A 1 pc(s)
Description
Cutter A9C 34811 remote switch iTLm 1 pin 1 S 16A 230-240VAC 50/60Hz
