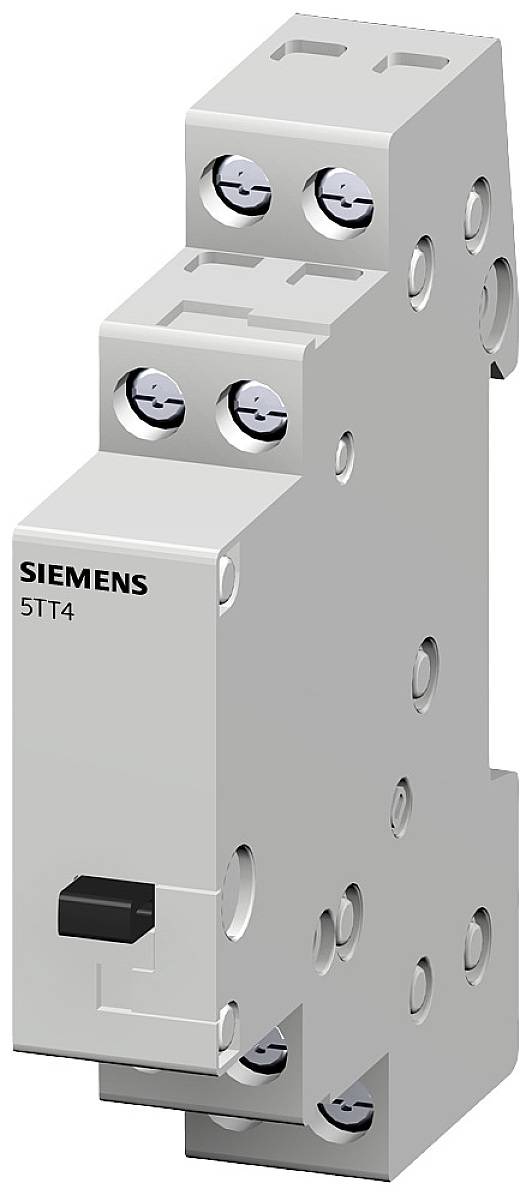

Remote switch DIN rail Siemens 5TT4101-4 1 maker 250 V 16 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
Operating voltage
250 V
Contact type
1 maker
Switching voltage (max.)
250 V DC/AC
Switching current (max.)
16 A
Datasheet (PDF)
Number
Total (€ 38.65 / piece)
€ 38.65
plus VAT.
Technical specifications
- Protection class: IP20
- Weight: 129 g
- Product type
Remote switch
- Type
5TT4101-4
- Operating voltage
250 V
- Min. operating voltage
250 V
- Max. operating voltage
250 V
- Operating voltage
250 V
- Permanent current (max.)
16 A
- Contact type
1 maker
- Switching voltage (max.)
250 V DC/AC
- Switching current (max.)
16 A
- Electrical lifespan
50000
- Mounting type
DIN rail
- Min. temperature
-10 °C
- Max. temperature
+40 °C
- Width
68.6 mm
- Height
89.8 mm
- Dim
(W x H) 68.6 mm x 89.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
DIN rail
Mechanical switch
70 mm
1
AC
AC/DC
AC
16 A
2000 W
500 VA
900 VA
400 VA
16 A
0
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1729207 Remote switch DIN rail Siemens 5TT4101-4 1 maker 250 V 16 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1729207 Remote switch DIN rail Siemens 5TT4101-4 1 maker 250 V 16 A 1 pc(s)
Description
Connecting cable unshielded for SIMATIC S7-300/1500 between front connector module and Connection module 16x0.14mm2 with IDC connectors, L = 1.0 m
