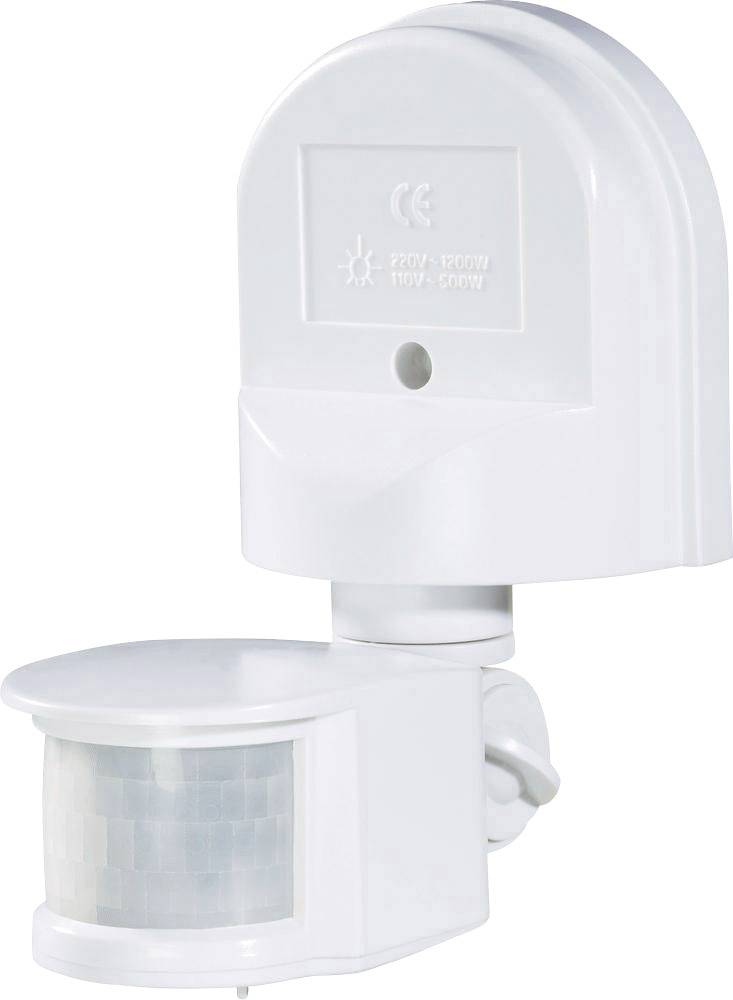

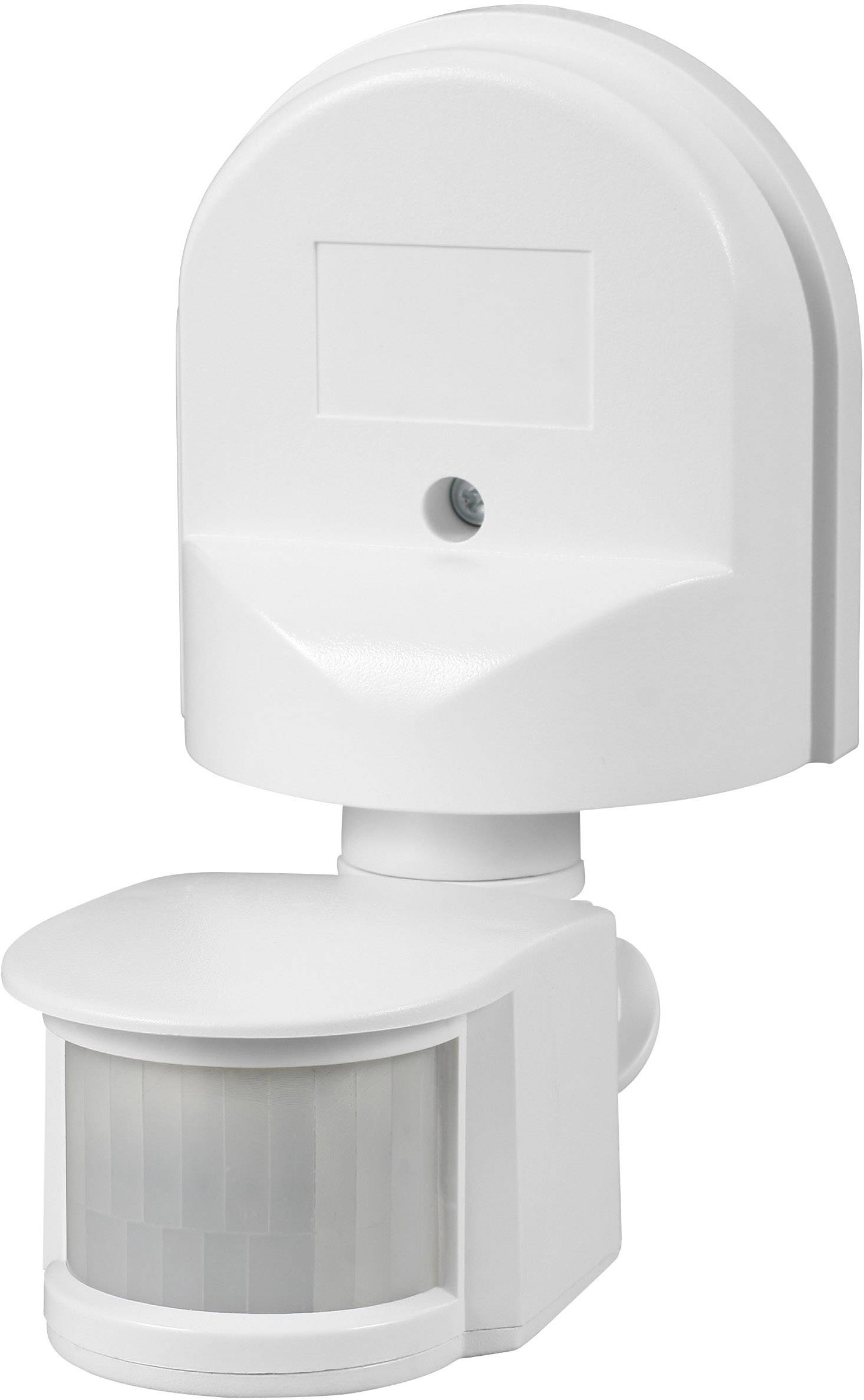

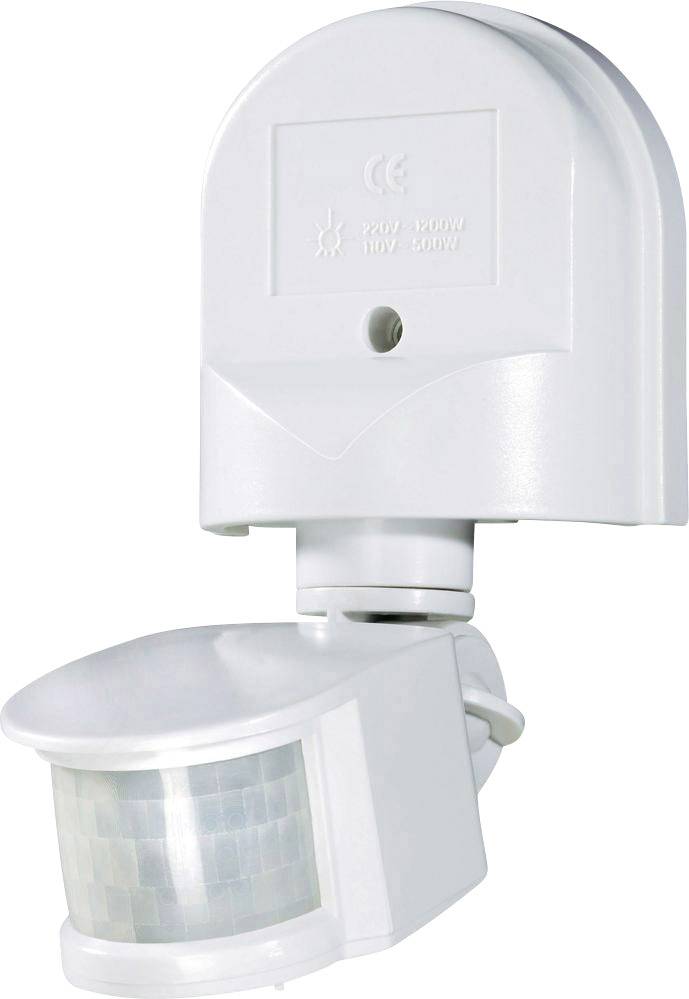

Renkforce 1296294 Wall PIR motion detector 180 ° Relay White IP44
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
3
6% = € 0.37
€ 6.34
5
8% = € 0.51
€ 6.20
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
Highlights & Details
180° Motion Detector
- - Range 12 m max.
- Suitable for up to 1200 W
- IP44
Technical specifications
- Breaking capacity 1200 W resistive load/ 300 W inductive load
- Product type
PIR motion detector
- Detection angle
180°
12 m
- Used at
Outdoors
- Mounting type
Wall
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity (energy saving bulbs)
300 W
- Switching capacity (light bulbs)
1200 W
- Standby current consumption
0.45 W
- Twilight settings
5 - 2000 lx
- Time settings
10s - 7 min
- Factory colour
White
IP44
- Operating temperature
-20 - +40 °C
- Length
220 mm
- Width
88 mm
- Height
58 mm
- Dim
(L x W x H) 220 x 88 x 58 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1296294 Renkforce 1296294 Wall PIR motion detector 180 ° Relay White IP44
Conformity certificate
Conformity certificate 1296294 Renkforce 1296294 Wall PIR motion detector 180 ° Relay White IP44
Description
With this detection angle of 180° and motion switch you can switch the bulbs till 1200 W and fluorescent lamps till 300 W The twilight sensor is infinitely adjustable.
