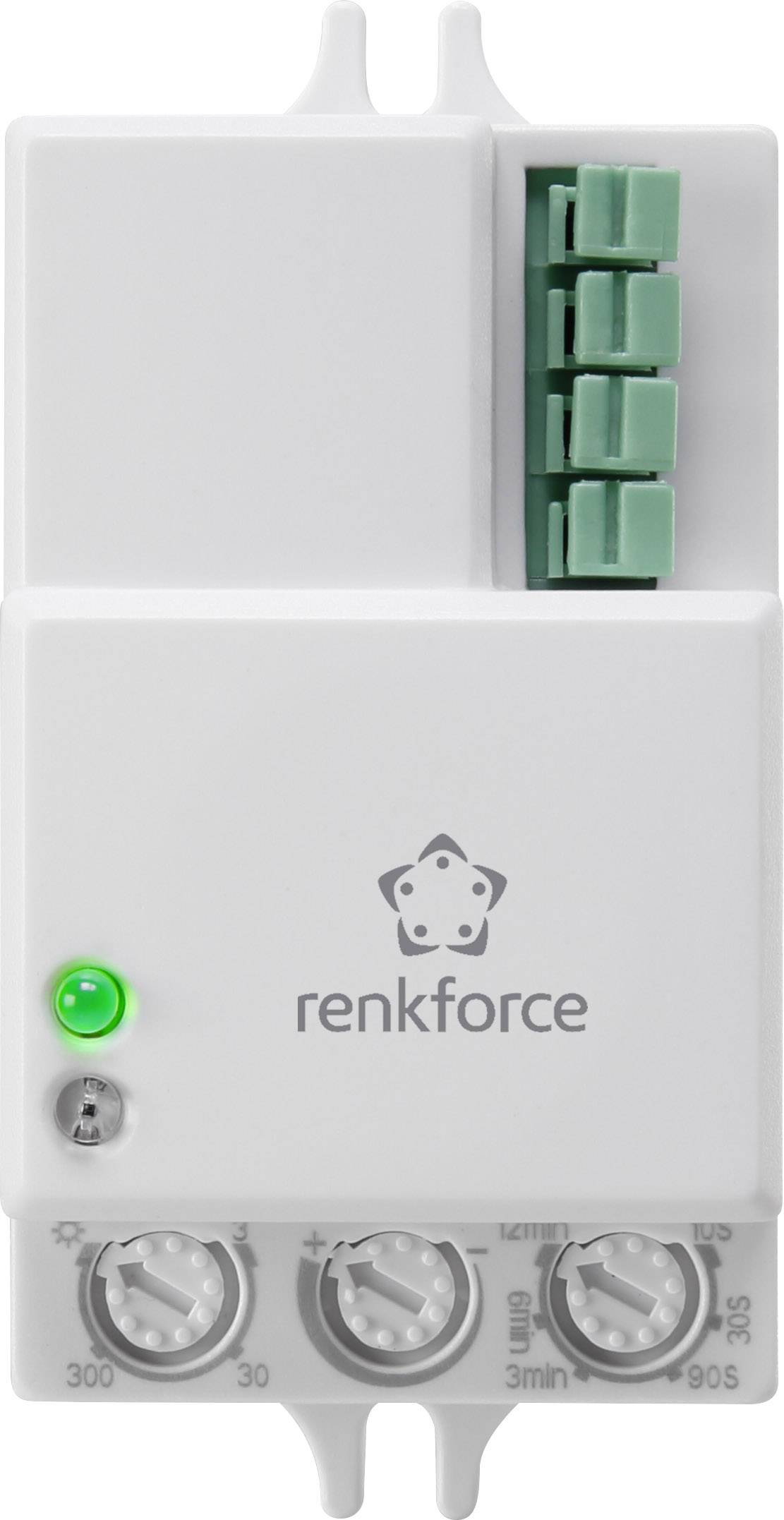

Renkforce 1530623 Ceiling, Wall HF motion detector 360 ° Relay White
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
5% = € 0.43
€ 7.96
5
7% = € 0.60
€ 7.79
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
14-day return policy included
Highlights & Details
Built-in HF radar motion detector
- Detects movement even through walls
- Invisible installation possible
- Range up to 15 m
Technical specifications
- HF system 5.8 GHz, CW radar, ISM band
- Transmitted power 0.2 mW
- Switching capacity: max. 500 W (resistive load), max. 150 W (inductive load)
- Permissible conductor cross-section for the connection terminals: 0.75 - 1.5 mm²
- Detection angle: horizontal 360°, vertical 180°
- Speed for motion detection 0.6 - 1.5 m/s
- Ambient brightness: 3 - 2000 Lux
- Product type
HF motion detector
- Detection angle
360°
15 m
- Used at
Indoors
- Mounting type
Ceiling
Wall
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
500 W
- Twilight settings
3 - 2000 lx
- Time settings
12 s to 10 min
- Factory colour
White
- Length
61.5 mm
- Width
37 mm
- Height
25 mm
- Dim
(L x W x H) 61.5 x 37 x 25 mm
- Weight
50 g
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1530623 Renkforce 1530623 Ceiling, Wall HF motion detector 360 ° Relay White
Conformity certificate
Conformity certificate 1530623 Renkforce 1530623 Ceiling, Wall HF motion detector 360 ° Relay White
Description
The detection works by high-frequency technology even through doors, glass panels or thin walls.
Ideal monitoring of your input range or staircase.
High-frequency detectors emit an imperceptible signal and respond, independently of temperature, to changes in the echo pattern that occur as a result of movement. With a wide angle of detection, almost instant response times, as well as a range that can be adjusted between 1 m and 15 m, this sensor switch is suitable for even complex room layouts.
You can connect via the output of the motion detector, a light. Thus, upon detected motion, the light automatically switched on. The duty cycle can be individually set.
The motion detector can be plastics, wood, glass and masonry (up to 30 cm) penetrate.
This text is machine translated.
Ideal monitoring of your input range or staircase.
High-frequency detectors emit an imperceptible signal and respond, independently of temperature, to changes in the echo pattern that occur as a result of movement. With a wide angle of detection, almost instant response times, as well as a range that can be adjusted between 1 m and 15 m, this sensor switch is suitable for even complex room layouts.
You can connect via the output of the motion detector, a light. Thus, upon detected motion, the light automatically switched on. The duty cycle can be individually set.
The motion detector can be plastics, wood, glass and masonry (up to 30 cm) penetrate.
This text is machine translated.
Scope of delivery
- Motion detector
- User manual
