Buy Renkforce MAC-608 MAC-608 Alarm hub Alarm zones 8x wired

A white key cabinet with an integrated combination lock and two inserted keys. Keypad with blue buttons and display.

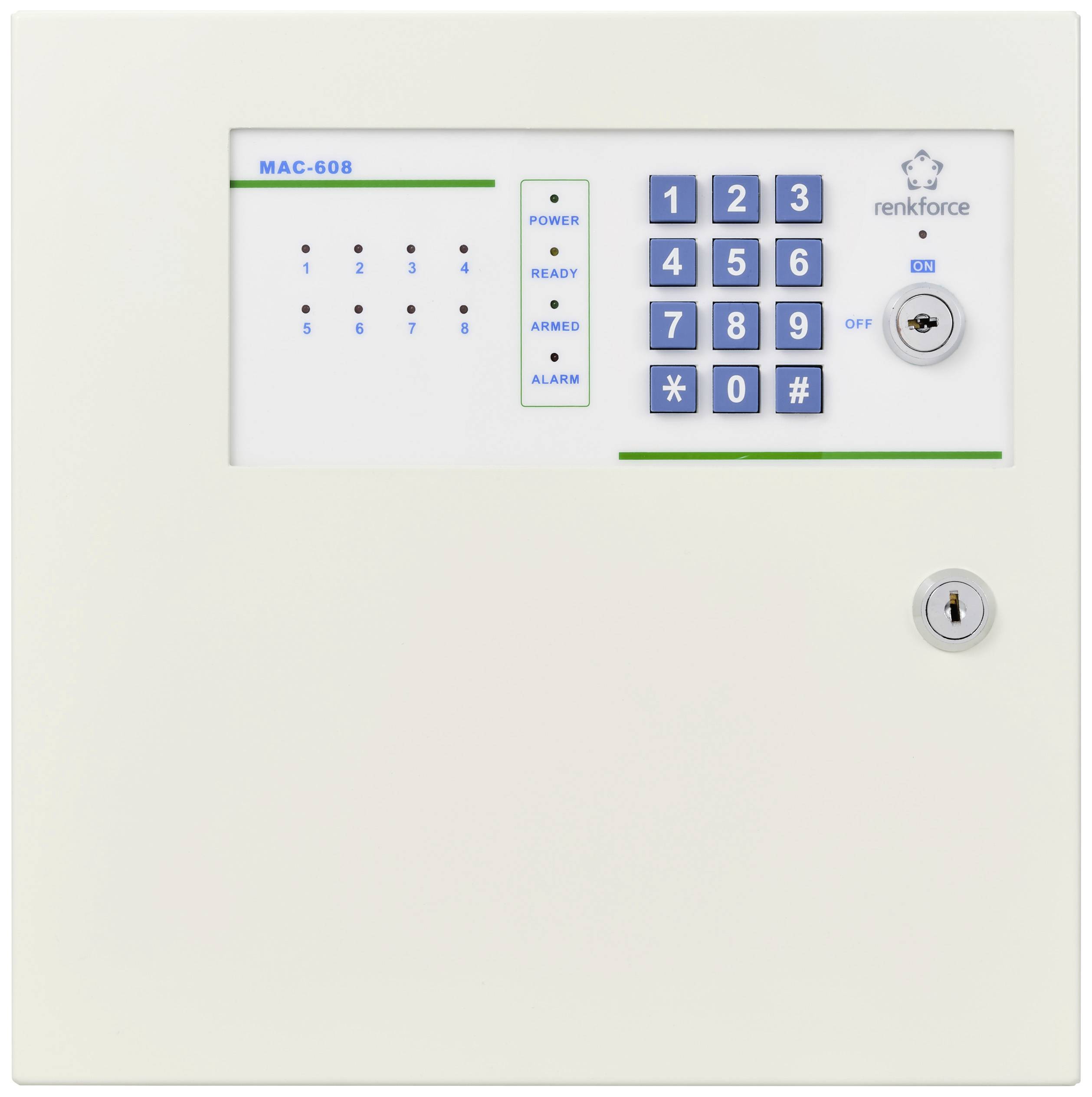

A white security panel with a keypad for access control, displaying numbers and symbols. It has a keyhole for manual unlocking.

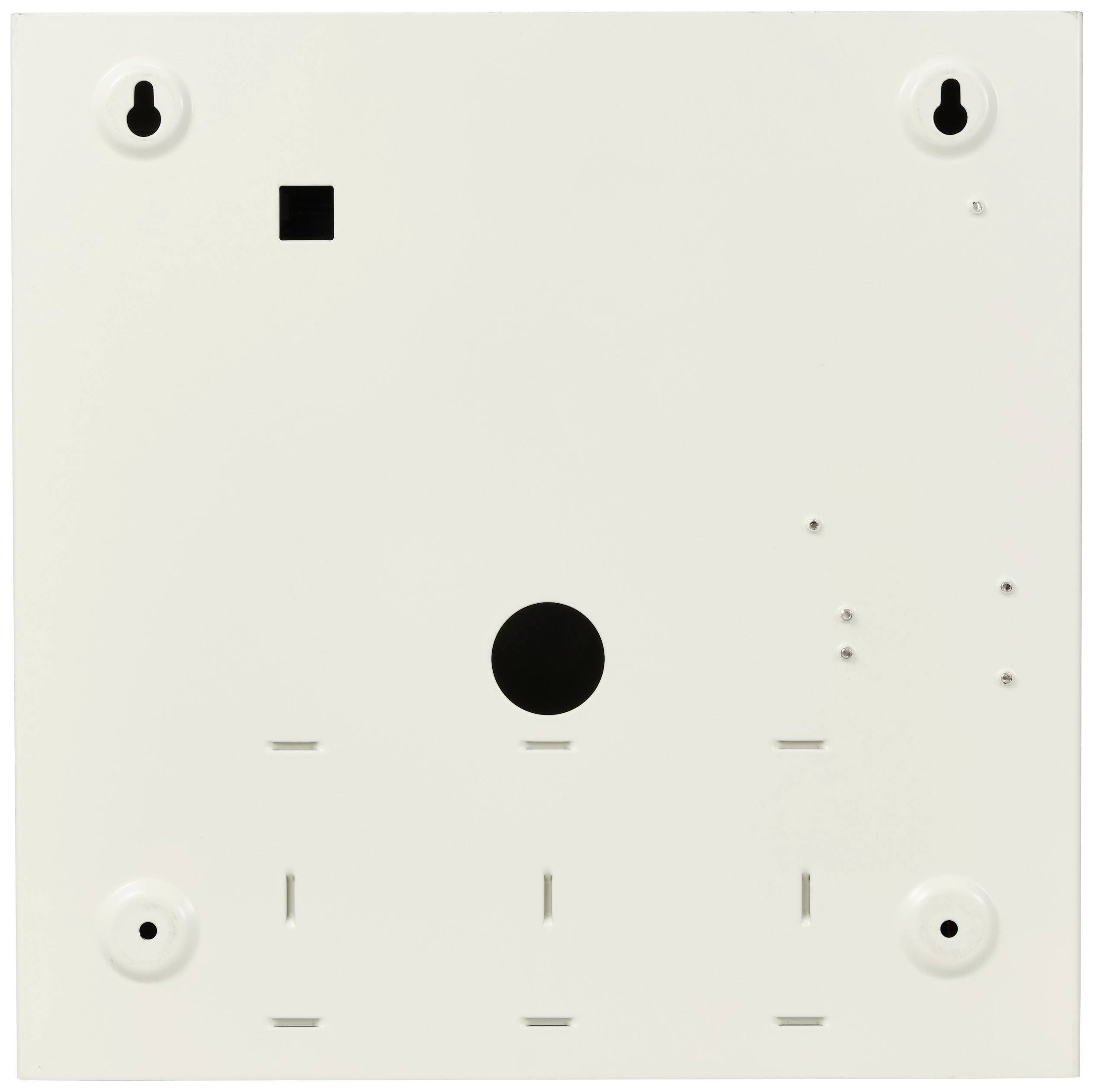

White square metal plate with multiple holes and slots, likely a mounting plate for wall attachment.

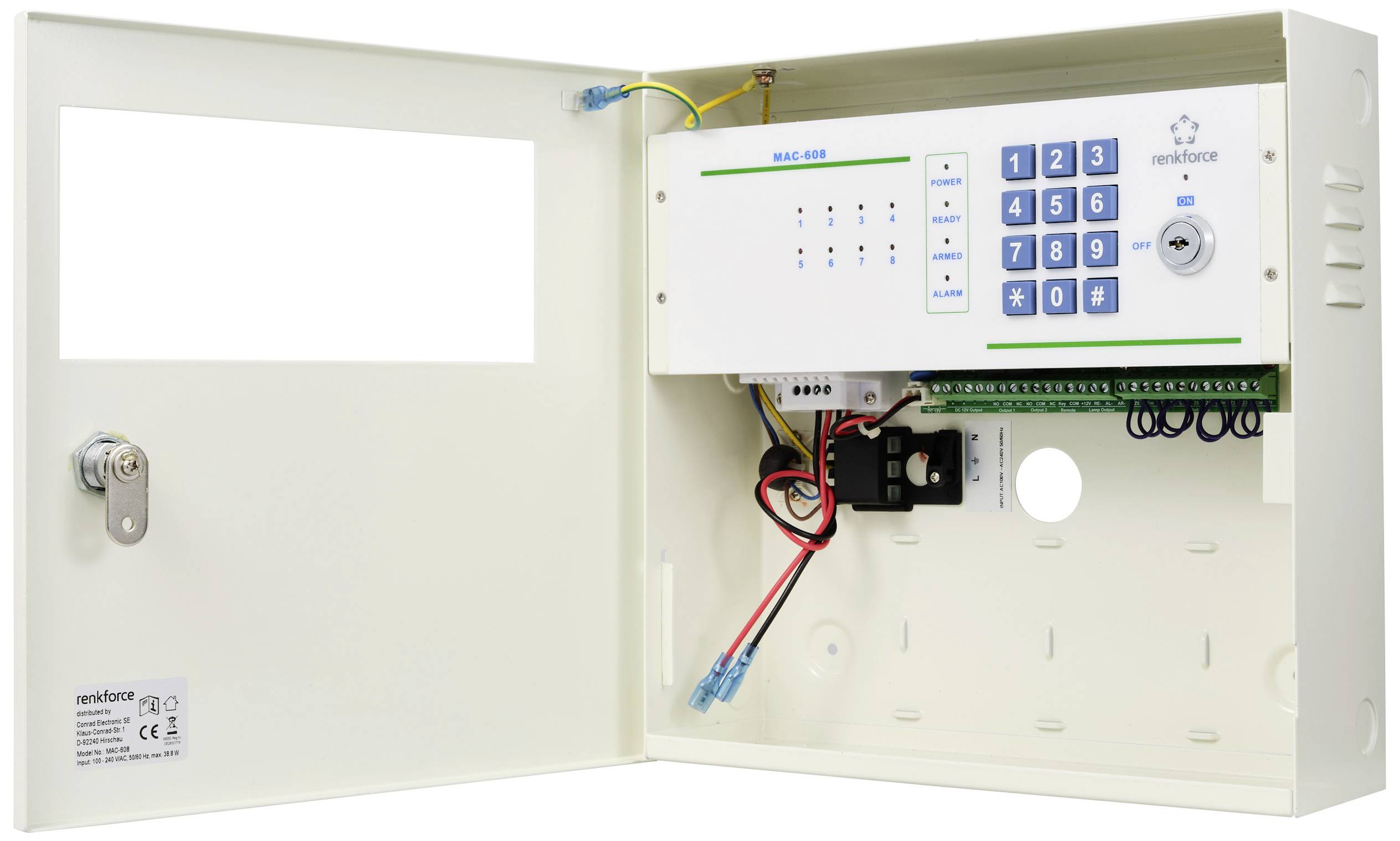

Safety system control box with open lid. Shows label field with buttons and cable connections. Screws and keyhole visible.

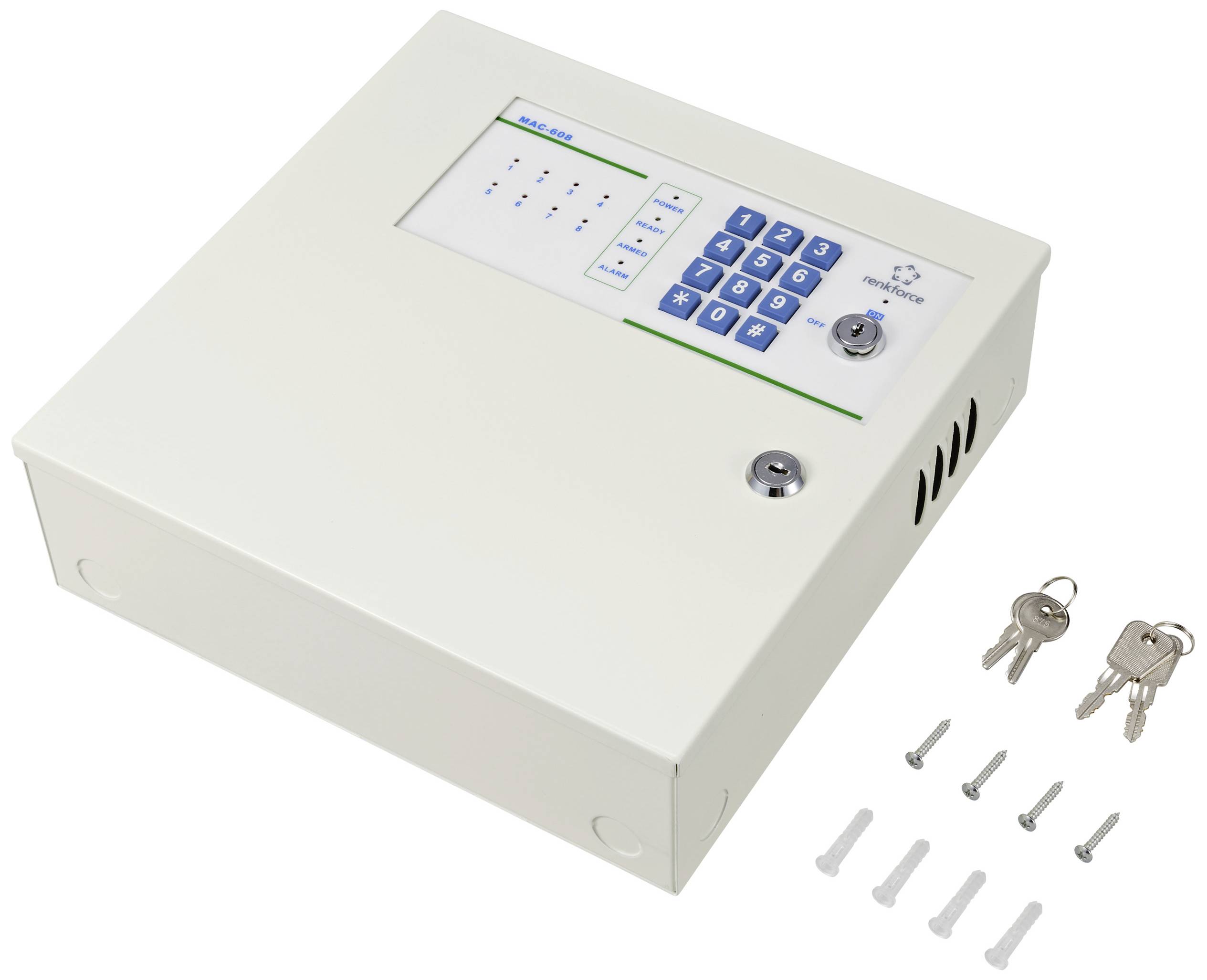

'Safety device with numeric keypad and LED indicators for control, with keys and mounting materials lying beside it.'

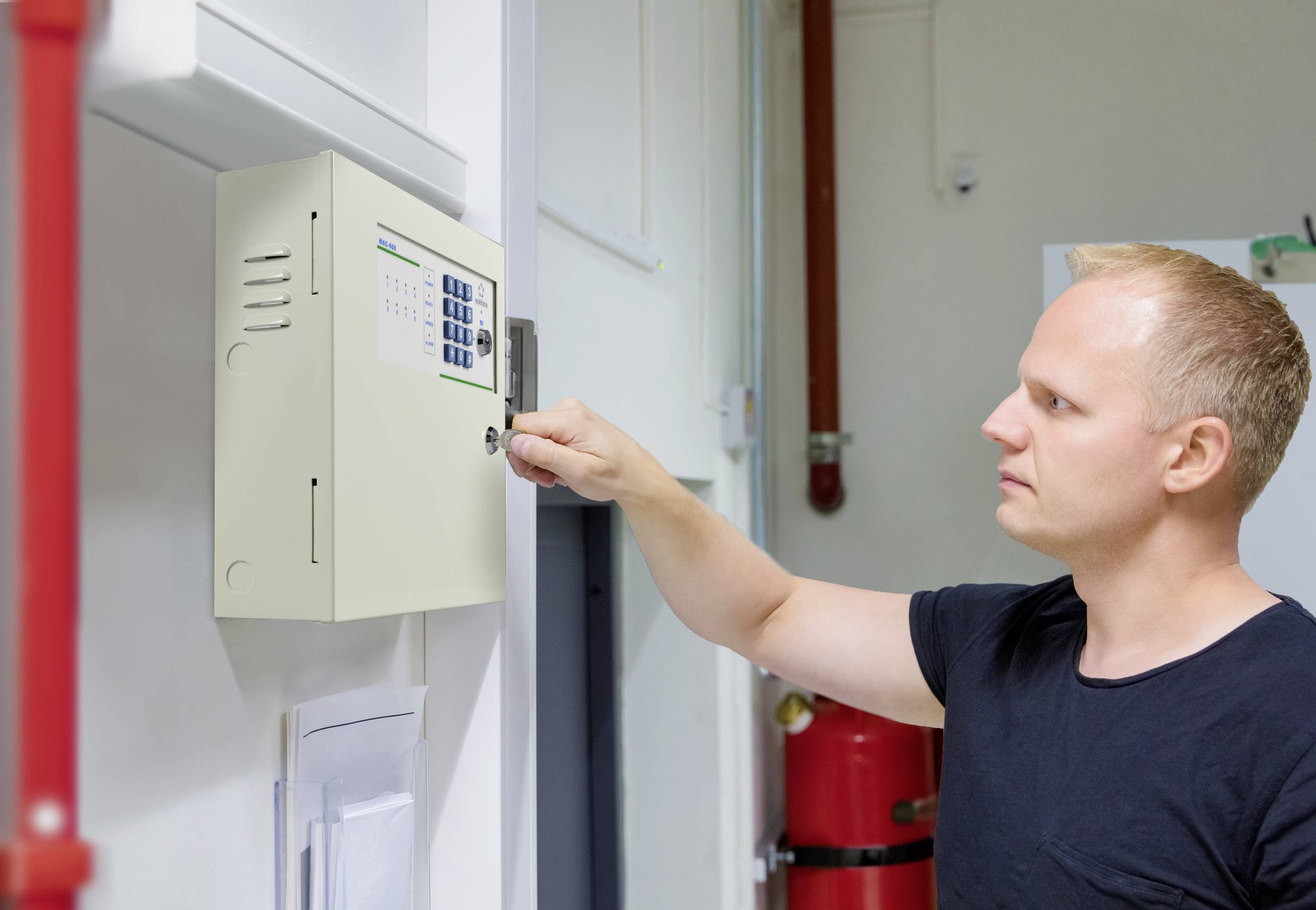

A man unlocks a wall-mounted fuse box with a key. Pipework and a fire extinguisher are visible in the background.

1/6

Fast track dispatch on Wed, 5 Aug

109 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 113.44 / piece)

€ 113.44

plus VAT.

Report legal concerns

Highlights & Details

8-Zone Alarm System

8 alarm loops
Adjustable alarm delay
Central deactivation via key switch

Technical specifications

Operating voltage: 230 V

Alarm zones: 8x wired

Tamperproof: No

Signal transmission: Corded

Switched outputs: 2

Alarm sounder: No

Width: 284 mm

Height: 284 mm

Depth: 86 mm

Dim: (W x H x D) 284 x 284 x 86 mm

Product type: Alarm hub

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 754394 Renkforce MAC-608 MAC-608 Alarm hub Alarm zones 8x wired

Conformity certificate

Conformity certificate 754394 Renkforce MAC-608 MAC-608 Alarm hub Alarm zones 8x wired

Description

Through the center of the alarm system can be deactivated with the help of the key switch is a very simple operation possible. The alarm loops 1 to 6 can then be activated via the keyboard. The loops 7 and 8 are directly via the key switch is activated. Due to the clearly arranged LEDS are all switching states quickly become evident. The generous and clearly designed terminal strip also enables the simple connection of all components.

This text is machine translated.

Features

8 alarm zones
Zone 1 to 6 only on via the keyboard can be activated (via key switch can be switched off)
Zone 7 and 8 of the key switch can be activated
Direct alarm output
2 x direct alarm output via potential-free contact
Three Status LEDS
Adjustable delay in access and exit
Adjustable alarm duration
