Buy Renkforce PC tuning kit AMD Ryzen 5 Ryzen5 3400G 4.2 GHz 8 GB DDR4 RAM M.2 PCIe NVMe 3.0 x4 Micro-ATX

Annotated Gigabyte motherboard showing rear ports and main components, labeled USB 2.0, HDMI, USB 3.1 Gen1, GbE LAN, audio capacitors, and 8-channel audio codec.

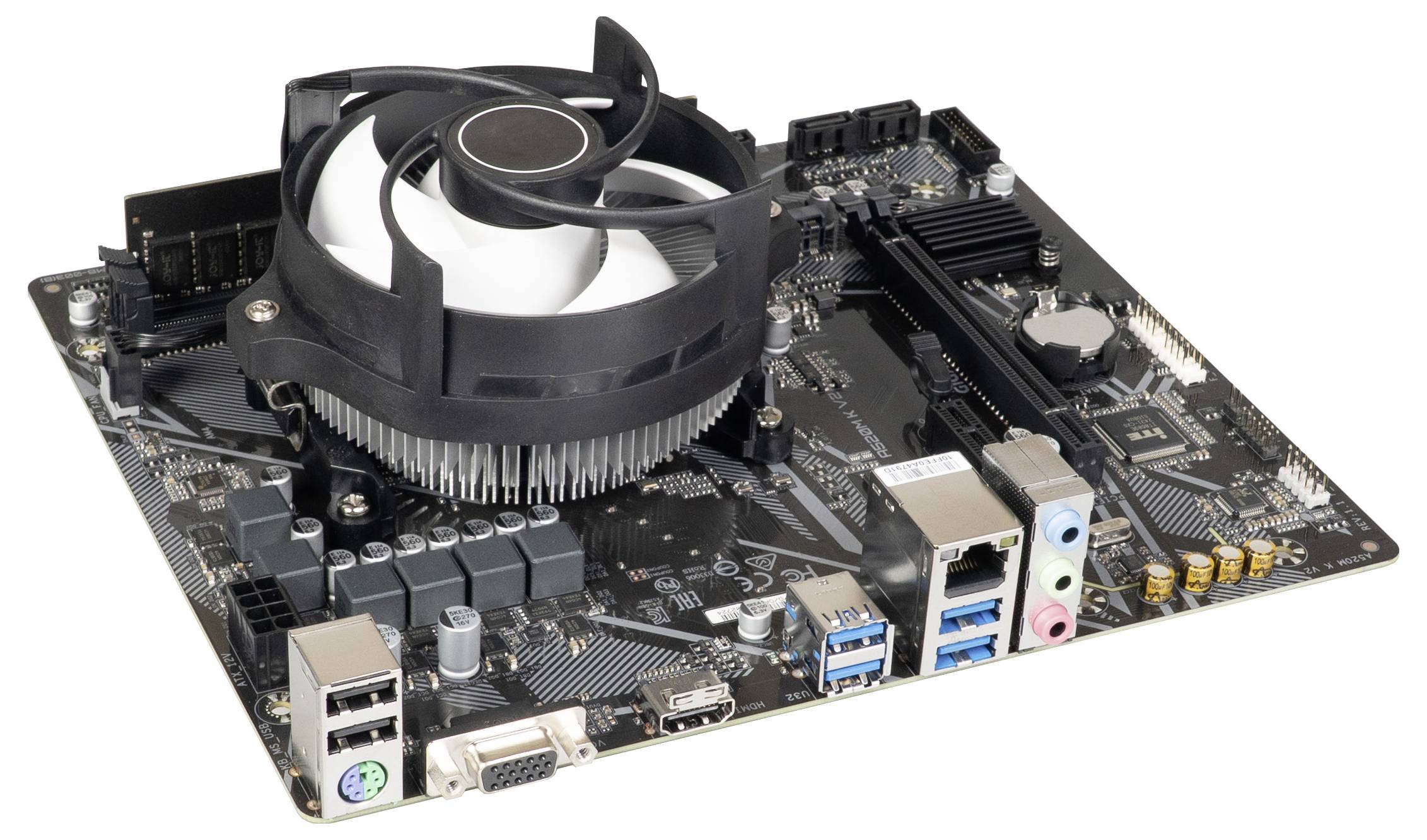

Motherboard with an installed CPU cooler fan and heatsink, shown on a white background with rear I/O ports visible.

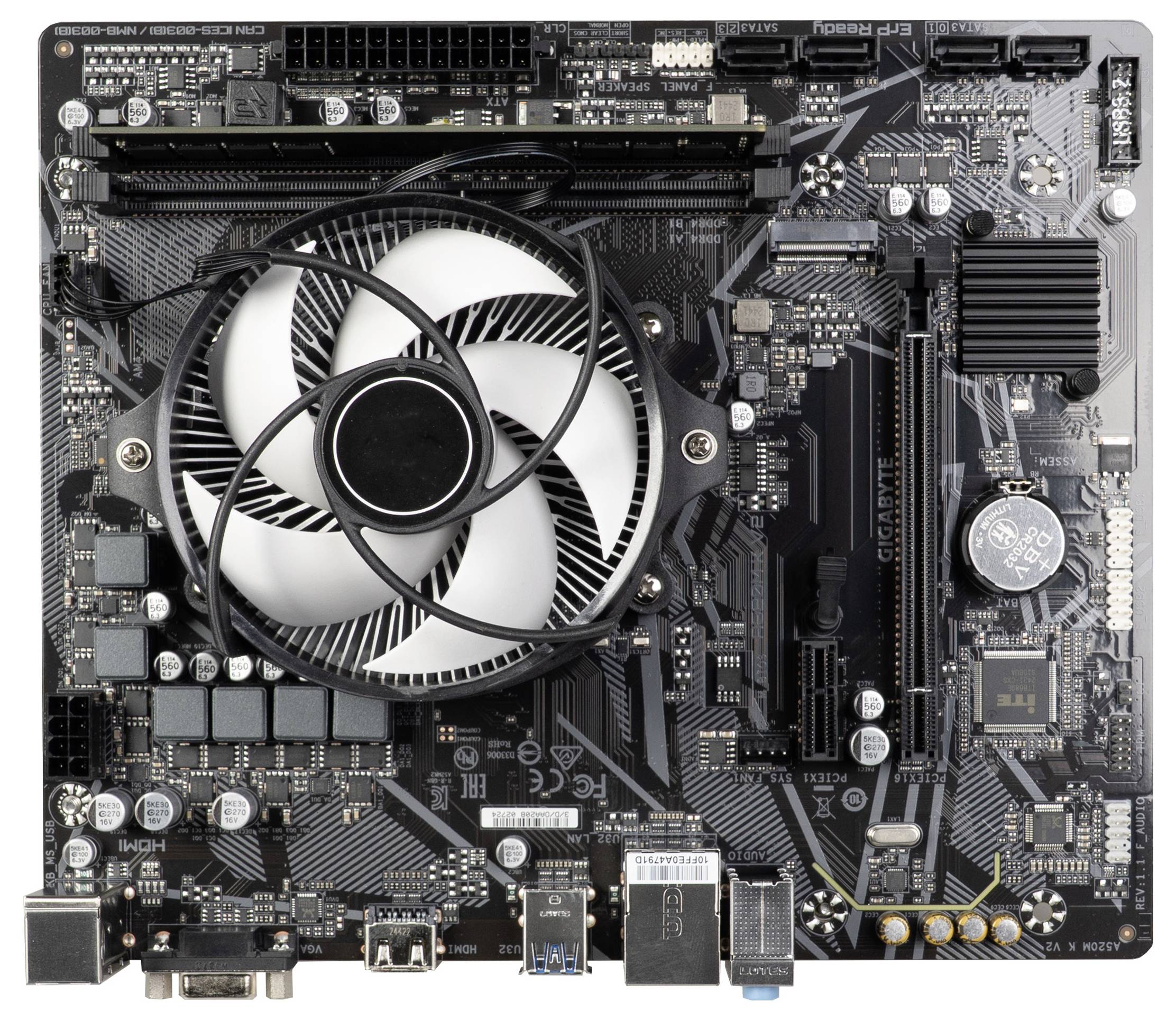

Top-down view of a computer motherboard with a large CPU cooler fan, RAM slots, expansion slots, ports, and onboard components.

1/3

Datasheet (PDF)

Dispatches on Tue, 27 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 193.27 / piece)

€ 193.27

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Renkforce PC tuning kit AMD Ryzen 5 3400G 4.2 GHz 8 GB DDR4 RAM, Micro ATX

AMD Ryzen 5 Ryzen5 3400G (4 x 3.7/4.2 GHz) processor
Gigabyte GA-A520M-K Micro-ATX mainboard
The ultimate performance booster for your PC
Synchronized components
Assembled and tested

Technical specifications

Internal on-board connections:
1 x 24-pin ATX main Power connector
1 x 8 pin ATX 12V Power connector
1 x CPU fan header
1 x system fan header
1 x M.2 socket 3 connector
4 x SATA 6Gb/s connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

Product type: PC tuning kit

Chipset: AMD® A520

Motherboard: Gigabyte GA-A520M-K

: AMD AM4

Form factor: Micro-ATX

CPU series: AMD Ryzen 5

Processor/type: Ryzen5 3400G

Processor cores (No.): 4 x

CPU speed: 3.7 GHz

CPU turbo clock speed (max.): 4.2 GHz

Onboard graphics card: Yes

Onboard graphics card (GPU manufacturer): AMD

Onboard graphics card (version): AMD Radeon vega

Dedicated graphics card: No

: 8 GB

RAM type: DDR4 RAM

RAM / Max. upgrade: 64 GB

SSD connection: M.2 PCIe NVMe 3.0 x4

No. of DDR4 slots: 2 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x1: 2 x

No. of USB 3.2: 4 x

No. of USB 2.0 ports: 2 x

No. of SATA III ports: 4 x

Onboard audio: 7.1 HD

No. of PS/2 ports: 1 x

Range of uses: Office
Design
Home
Media
Gaming

CPU clock rate: 4 x 3.7 GHz / max. 4.2 GHz

Documents & Downloads

Datasheet

Datasheet 3828255 Renkforce PC tuning kit AMD Ryzen 5 Ryzen5 3400G 4.2 GHz 8 GB DDR4 RAM M.2 PCIe NVMe 3.0 x4 Micro-ATX

User & Safety Instructions

User & Safety Instructions 3828255 Renkforce PC tuning kit AMD Ryzen 5 Ryzen5 3400G 4.2 GHz 8 GB DDR4 RAM M.2 PCIe NVMe 3.0 x4 Micro-ATX

Description

With our tuning kits you can increase the performance of your PC in just a few simple steps. The tuning kit is one of the most effective ways to achieve the targeted performance of a desktop computer. The perfectly tuned complete set consists of mainboard, processor, RAM as well as high-end CPU cooler and is already assembled (tower cooler must be self installed). Each set is subjected to a detailed test after assembly and is perfectly adjusted, thus guaranteeing maximum performance. By changing the relevant components, which are decisive for the performance of the PC, you can thus bring your PC up to date with the latest technology. You can find further details of this tuning kit in the download area and in the image overview.

This text is machine translated.
