Buy Rennsteig Werkzeuge 783 000 61 Circlip pliers Suitable for Outer and inner rings 400-1000 mm 400-1000 mm

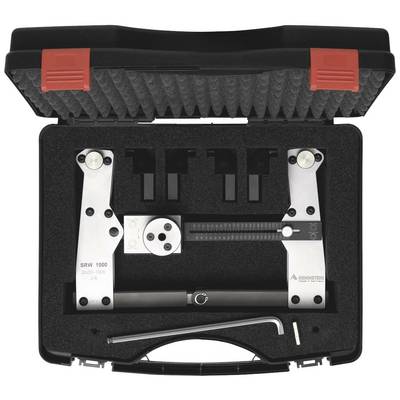

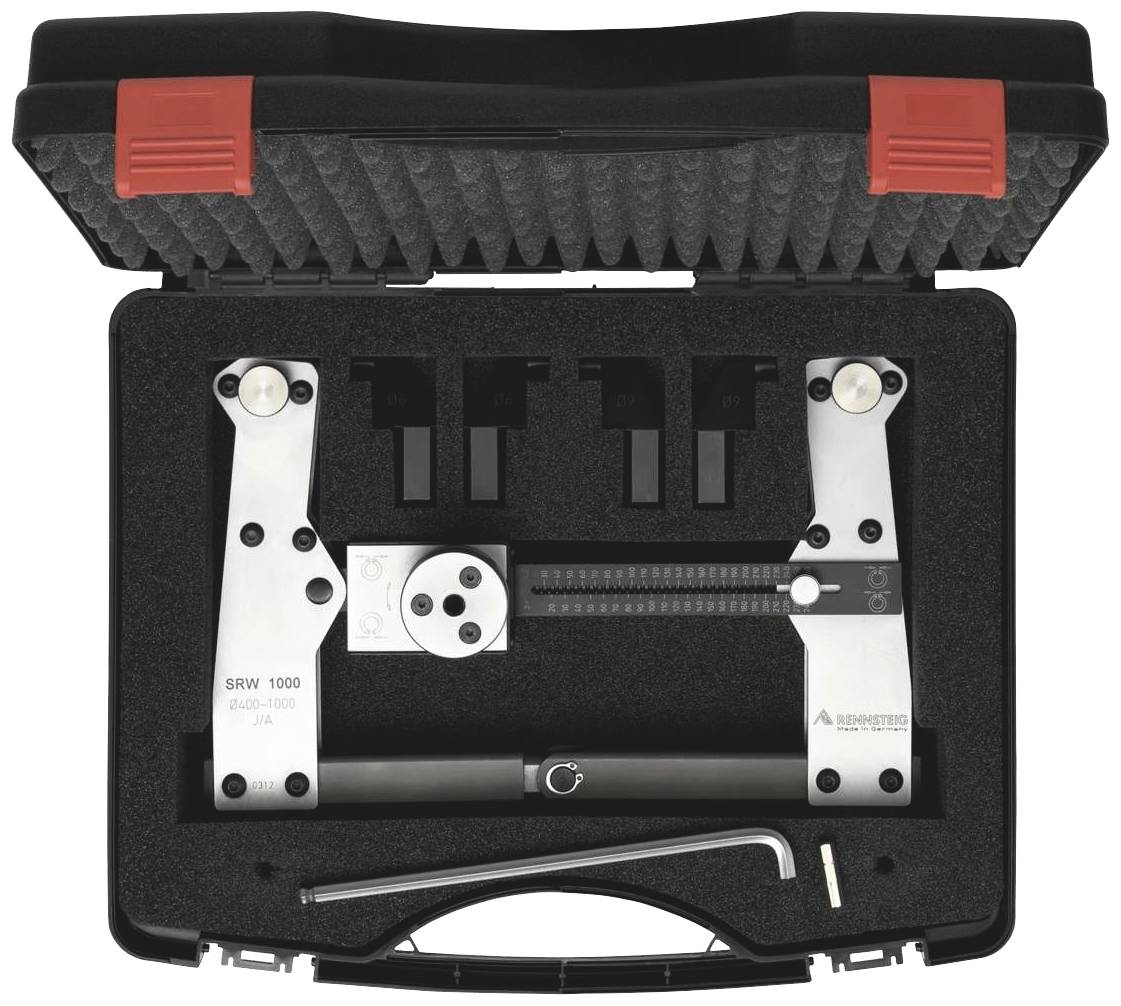

A tool case with metal measuring instruments, including a calibration tool with various attachments and an Allen key.

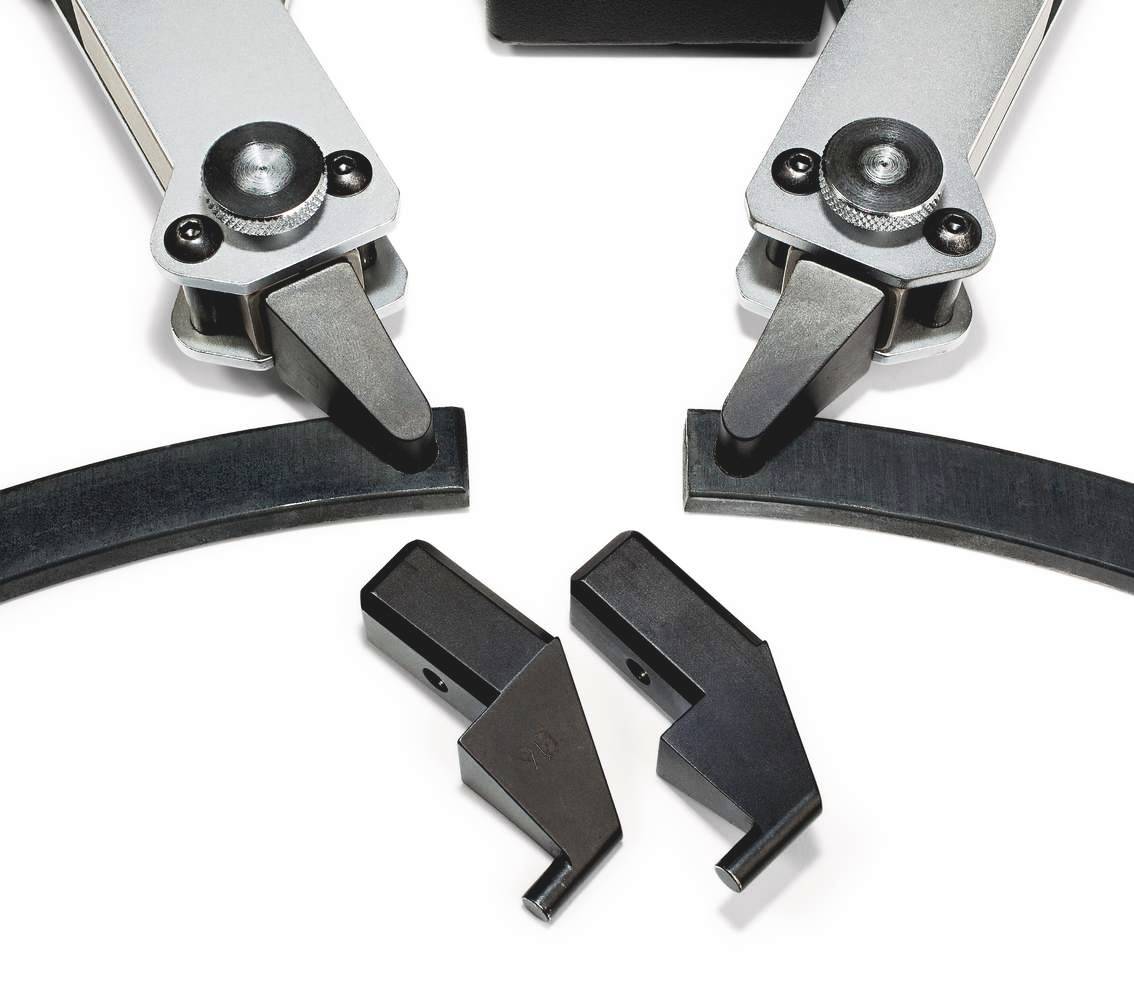

Mechanical robotic arms and interchangeable gripper tools underneath, displayed against a white background.

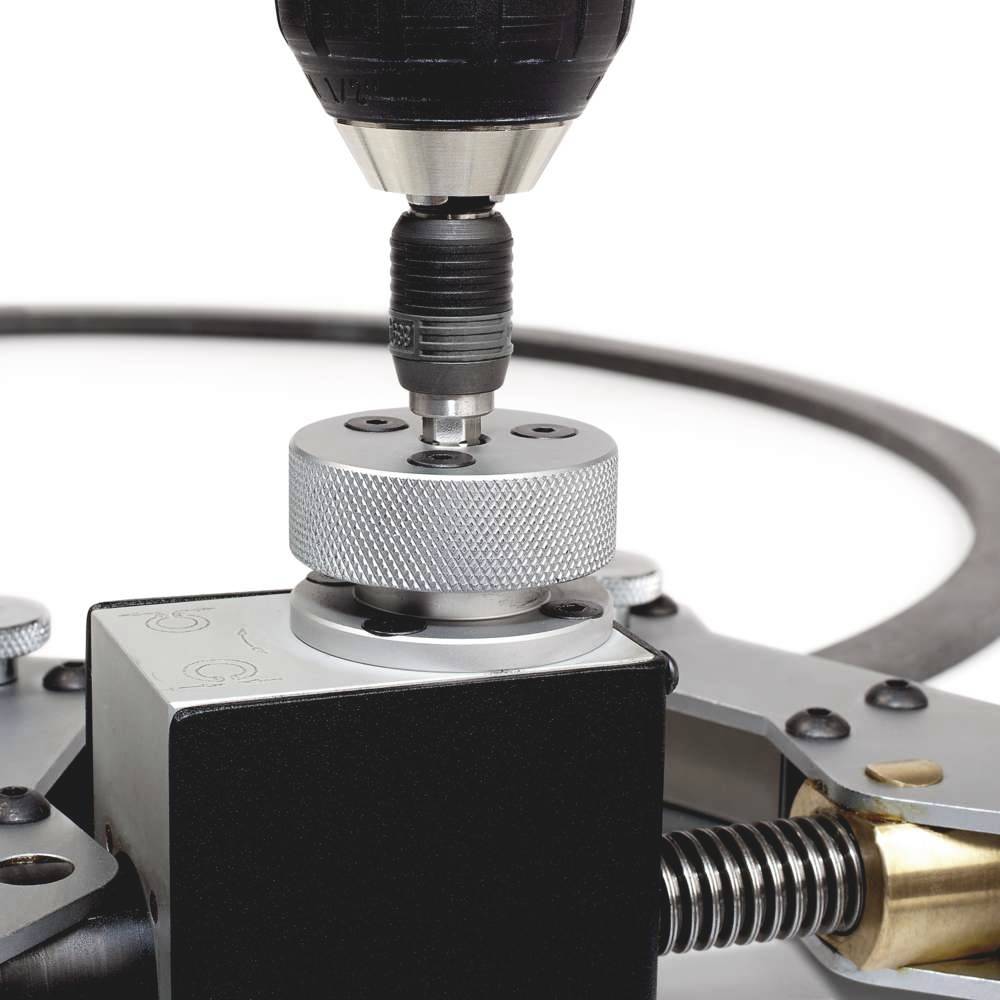

Drill bit in close-up, secured to a circular metal piece on a precision instrument, ready for a technical application.

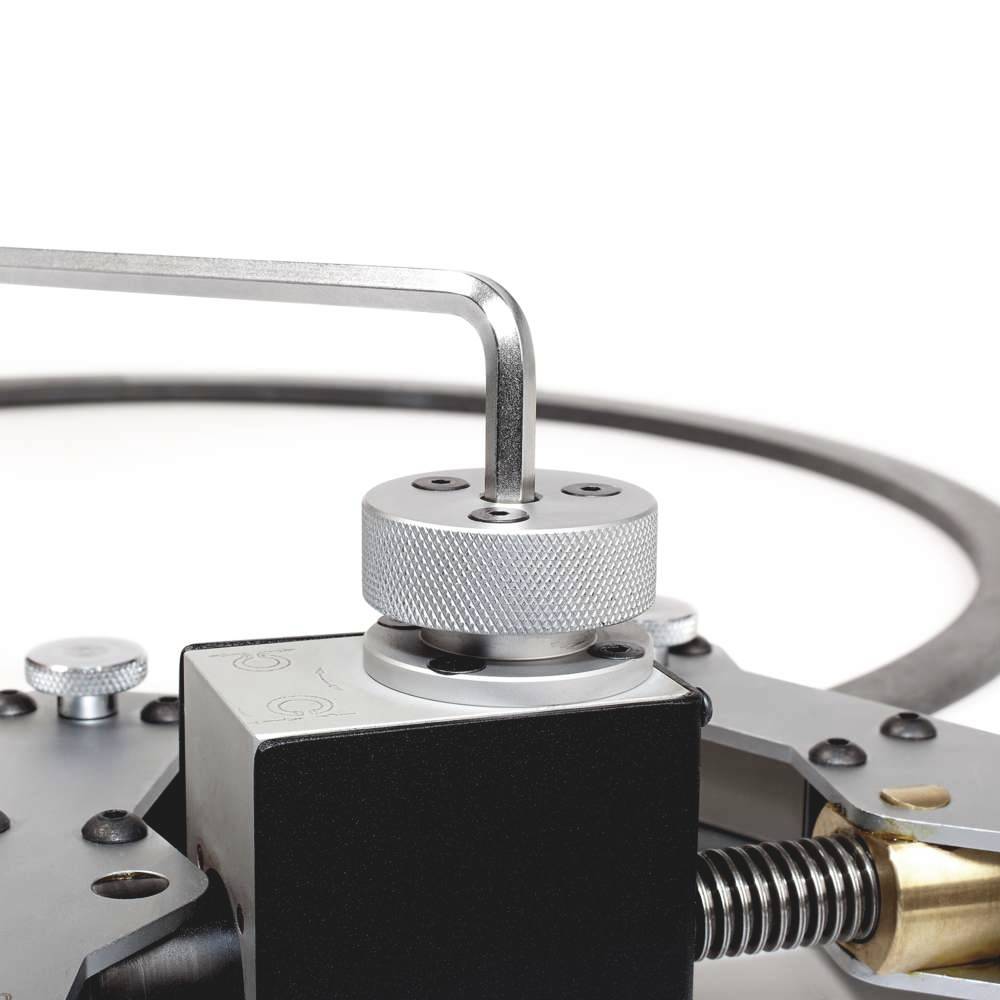

A metallic measuring instrument with a scale, screws, and lever arm. It appears to be used for precise measurements or adjustments.

1/4

Dispatches on Wed, 7 Oct

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,071.43 / piece)

€ 1,071.43

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Circlip pliers

Manufacturer part #: 783 000 61

Suitable for: Outer and inner rings

Matching bore diameter: 400-1000 mm

Suitable for shaft diameters of: 400-1000 mm

Length: 300 mm

Material properties: quenched and tempered

Weight: 2150 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 396824 Rennsteig Werkzeuge 783 000 61 Circlip pliers Suitable for Outer and inner rings 400-1000 mm 400-1000 mm

Description

Can be used universally for retaining rings with a diameter of 400 - 1000 mm. Safe opening/closing of the rings and hold through self-inhibiting precision spindle drive. Secure hold of the ring by short, direct recording. High-strength, coated tips. Maximum opening width 250 mm (optional with scale). Operation optionally with Allen key, ratchet wrench or screwdriver. Changeable pairs for different diameter ranges.

Scope of delivery

Set in plastic case: Circlip tools, Tip pair of Ø 6 mm and 9 mm, Allen key 6 mm, bit 6 (1/4").

Hints

This text is machine translated.
