Rennsteig Werkzeuge DigiCrimp 8.73-3 8733 0101 61 Crimper Machined pins and receptacle contacts 0.03 up to 0.5 mm² Incl.
EAN:
Part number:
Item no:
Total (€ 710.08 / piece)
€ 710.08
plus VAT.
14-day return policy included
Technical specifications
- Product type
Crimper
- Manufacturer part #
8733 0101 61
- Range of uses
Machined pins and receptacle contacts
- Crimp area
0.03 up to 0.5 mm²
- Crimp area AWG
20 up to 32 awg
- Crimp area (min.)
0.03 mm²
- Crimp area (max.)
0.5 mm²
- Crimp area AWG (min.)
32 awg
- Crimp area AWG (max.)
20 awg
- Length
175 mm
- Weight
390 g
- Features
Incl. PVC case
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1228746 Rennsteig Werkzeuge DigiCrimp 8.73-3 8733 0101 61 Crimper Machined pins and receptacle contacts 0.03 up to 0.5 mm² Incl.
Description

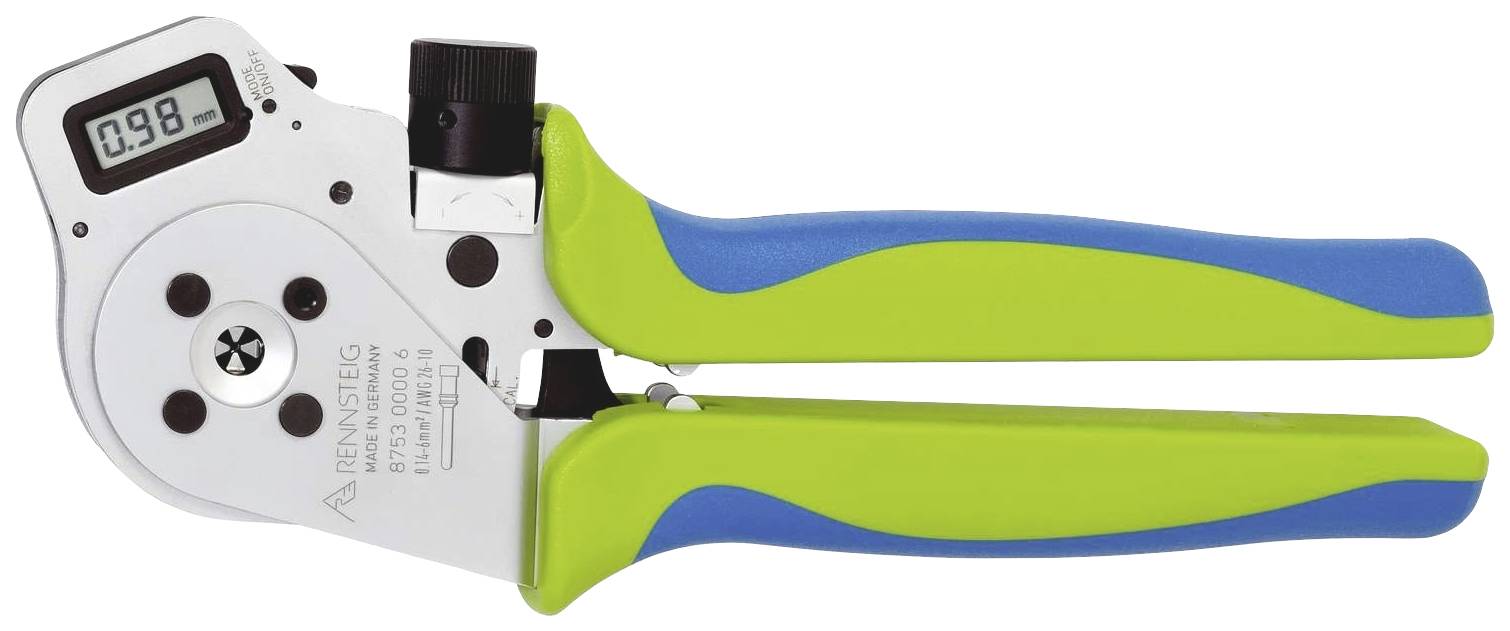

Four-punch pliers digi crimp in plastic case. suitable for crimping of machined pin and socket contacts. Delivery in steps of 0.01 mm adjustable crimp mandrel and digital read. Checking the basic setting with the help of the enclosed plug gauge. Possibility of re-kalibrierung via RESET function. Electronic Wear monitoring with warning function. Reliable Vercrimpung by forced lock and synchronous delivery of the crimping jaws. different setting functions available. length 175 mm. Ergonomic, non-slip 2K-Grip low grip width. Standard probes. Capacity 0. 03-0. 50 mm². Contact AWG 32-20, max, Ø 5 mm. incl. Contact Design 01. 12-piece contact. connector customized. robust design. For Series operation. Safe and reproducible Crimpungen. Design 01 contact length 15-30 mm max. diameter 4. 5 mm. suitable for rennsteig four mandrel crimp pliers8720 0000 6. 8730 0000 6. 8723 0000 6 and 8733 0000 6. suitable for 636 0723 3 01 and 636 Units Rennsteig Digi crimp0733 3 01. Made in Germany
Hints
This text is machine translated.
