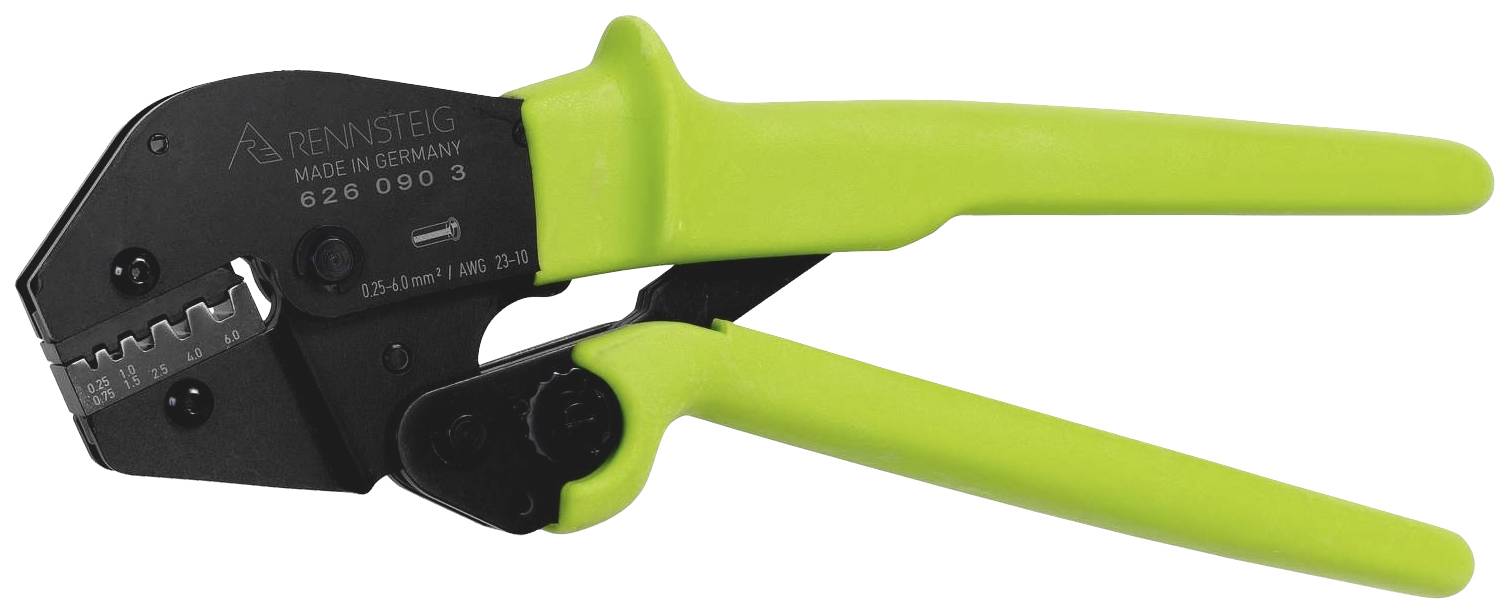

Rennsteig Werkzeuge PEW16.90 626 090 3 Crimper Ferrules 0.25 up to 6 mm²
EAN:
Part number:
Item no:
Show alternatives
Sales and shipping:
Total (€ 121.84 / piece)
€
Technical specifications
- Product type
Crimper
- Manufacturer part #
626 090 3
- Range of uses
Ferrules
- Crimp area
0.25 up to 6 mm²
- Crimp area AWG
10 up to 23 awg
- Crimp area (min.)
0.25 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
23 awg
- Crimp area AWG (max.)
10 awg
- Length
250 mm
- Weight
550 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1228534 Rennsteig Werkzeuge PEW16.90 626 090 3 Crimper Ferrules 0.25 up to 6 mm²
Description
Particularly suitable for frequent crimped of larger contacts. One and two-handed operation possible. Adjustable Crimp pressure. with ratchet (unlocked) for reliable crimping. thanks to optimal transmission ratio low hand force required. Ergonomic, non-slip 2k-grip with crimp insert for wire-end sleeves 0. 25-0. 75 mm². 1. 0-1. 5 mm². 2. 5-4. 0 mm² and 6. 0 mm². AWG 23-10. Trapezoidal crimp. Made in Germany
Hints
This text is machine translated.
